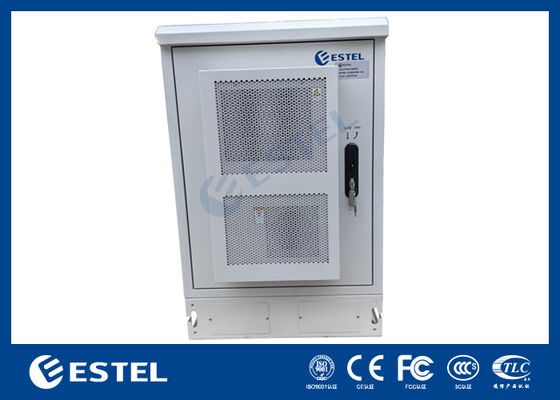

16U Outdoor Cabinet for Telecommunication Infrastructure with Air Conditioner Cooling
Product Details
16U outdoor telecom cabinet
,telecommunication cabinet with air conditioner
,weatherproof telecom infrastructure cabinet
16U Outdoor Cabinet for Telecommunication Infrastructure with Air Conditioner Cooling
Product Overview of 16U Telecommunication Cabinet
-
Type: Outdoor dual-cabinet, 16U telecom cabinet
-
Protection level: IP54 / IP55 / IP65 (selectable)
-
External dimension (H×W×D): 1000mm × 650mm × 650mm
-
Plinth: 150mm height
-
Internal space: 1 x 19-inch, 16U
Material & Finish of 16U Telecommunication Cabinet
-
Material: Galvanized sheet plate, single layer
-
Insulation: 20mm PEF insulation
-
Coating: Polyester powder coating
-
Color: RAL7035 (customizable)
Access & Security of 16U Telecommunication Cabinet
-
Lock system: Anti-theft three-point locking system
-
Hinge: Inner hinge
-
Maintenance access: One left door + one right door, front maintenance
Installation & Cable Routing of 16U Telecommunication Cabinet
-
Installation: Pole mounted
-

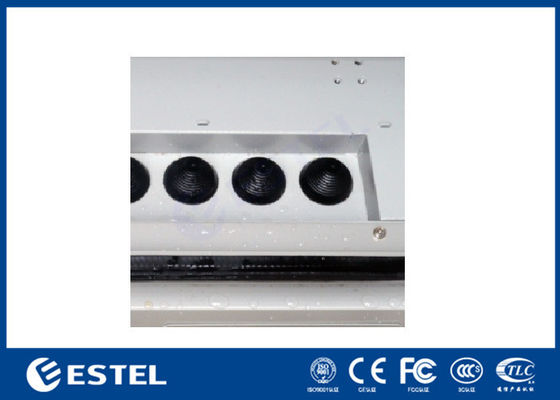

Cable routing: Cable in and out from bottom of cabinet
Cooling & Electrical of 16U Telecommunication Cabinet
-

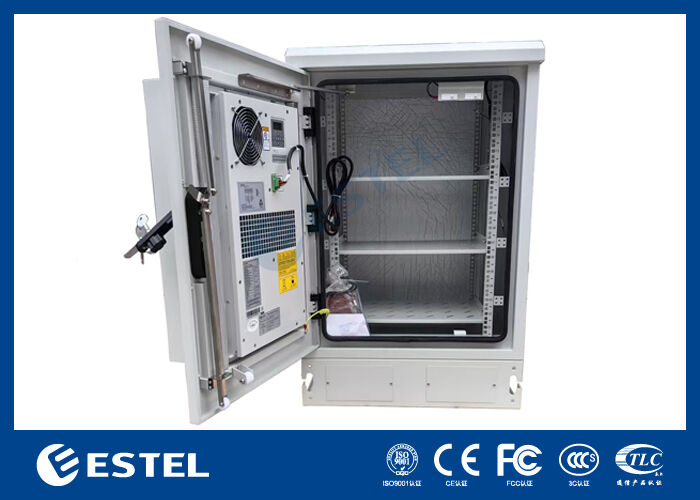

Cooling: Optional air conditioner – 230VAC, 50Hz, 500W
-
Others: 220VAC 50Hz LED lamp for internal lighting
Key Features
-
Dual-cabinet design – separates power and communication equipment
-
IP54 to IP65 protection – dustproof and waterproof for outdoor use
-
20mm PEF insulation – reduces heat transfer and condensation
-
150mm plinth – elevates cabinet to avoid ground moisture
-
Pole mounted – easy deployment on street poles or towers
-
Three-point locking – anti-theft security for remote sites
-
Optional 500W AC air conditioner – active cooling for high-temperature environments
-
LED lamp – illuminates interior for night maintenance
Application Scenarios
-
5G street-level micro cells
-
Rural telecom base stations
-
Outdoor Wi-Fi hotspots
-
Traffic signal control cabinets
-
Smart city sensor hubs
-
Remote monitoring stations
-
Pole-mounted edge computing nodes
Specification
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | Outdoor Daul-cabinet 16U Telecom Cabinet | |
| Protection Level | IP54/IP55/IP65 | ||
| External Dimension | 1000mm*650mm*650mm(H*W*D) | ||
| Plinth | 150mm height | ||
| Internal Space | 1*19 inch 16U | ||
| Material |
Material: Galvanized sheet plate, single layer, with 20mm PEF insulation |
||
| Coating | Polyester powder coating | ||
| Color | RAL7035(customized) | ||
| Lock system | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Pole mounted | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One left door, one right door, front maintenance | ||
| Cooling | Air Conditioner |
230VAC, 50Hz, 500W(optional) |
|
| Others |
220VAC 50HZ LED lamp |
||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
| Package | Wooden case | 1 unit per case | |
