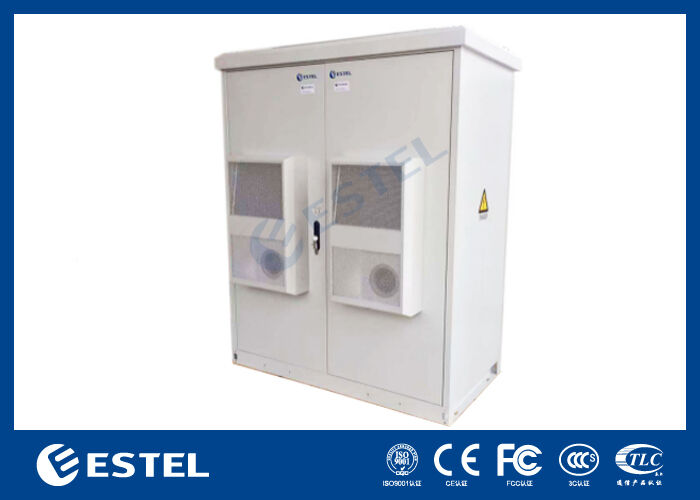

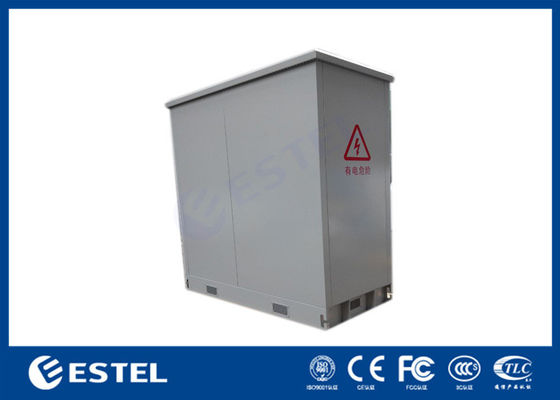

Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System

Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System
Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System

Large Image :  Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 251-5234 usd
Packaging Details: wooden case
Delivery Time: 30-35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1,500 sets per month
Contact Now
Detailed Product Description
Size: 2400mm*1500*800mm(H*W*D) Material: Aluminum Zinc
Inner Space: 2*19-inch 48U Rack Door: One Left Door, One Right Door
Cooling Method: 2*SS316 Air Conditioner IP Grade: IP65
Installation: Floor Installation Package: Wooden Case
Highlight:

48U outdoor telecom cabinet

,

dual-cabinet telecom power system

,

telecom cabinet with backup system

Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System





Product Overview

The ET Series Outdoor Daul-cabinet 48U Telecom Cabinet is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. Lead-acid battery and 48U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipment at the same time.

DC Power Distribution
The cabinet integrates a 19-inch 3U rack-mount -48VDC Power Distribution Unit (PDU) featuring:

  • 2 x 2P 32A circuit breakers

  • 2 x 2P 16A circuit breakers

  • 4 x 2P 10A circuit breakers

This configuration enables flexible and protected power distribution to multiple telecom loads.

Battery Backup and FSU
Dedicated space accommodates 4 trays for up to 16 x 48V lead-acid batteries, providing reliable backup power during mains failures. The cabinet also supports FSU (Field Supervision Unit) and sensors for real-time monitoring of internal temperature, humidity, door access, smoke sensor, water sensor and equipment status.

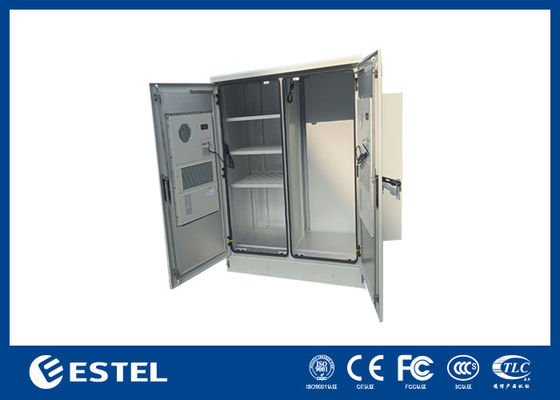

Versatile Equipment Housing
The cabinet offers ample space for concurrent installation of 19 inches standard equipment, noth active telecom equipment (switches, transmission devices) and passive telecom equipment (distribution frames, patch panels), and telecom power system, making it a complete outdoor solution for critical network nodes.

Built with corrosion-resistant materials and high IP-rated sealing, the cabinet ensures reliable operation of power systems and communications equipment in extreme outdoor environments.



Features



● High protection grade: IP65

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Adopt highly efficient cooling unit: air conditioner

● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature.

● Support remote management, improve security and minimize customer’s operation cost



Specification





Configuration Item Technical Parameter
Cabinet Type Outdoor Daul-cabinet 48U Telecom Cabinet
Protection Level IP65
External Dimension 2400mm*1500*800mm(H*W*D)
Internal Space 1*19 inch 48U,1* 4-layer battery installation space
Material

Material: Aluminum zinc plate, double layer, with 20mm PEF insulation

outer layer thickness: 1.2mm,

inner layer thickness: 0.8mm,

load-bearing components and base thickness: 2.0mm
Coating Polyester powder coating
Color RAL7035
Lock system Anti-theft three-point locking system
Hinge Inner hinge
Installation Pole mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One left door, one right door, front maintenance
Cooling Fan

230VAC, 50Hz, 1000W, 2SET, Customized;

Material: SUS316
FSU

Model: PM5000, 19" 1U

Sensors:

2* door sensor

1* smoke sensor

1* water sensor

1* temperature sensor
DC Power Distribution Unit

Rack mount -48VDC PDU, 19" 3U

Circuit Breaker: 2 x 2P 32A ; 2 x 2P 16A; 4 x 2P 10A
LED Lamps 230VAC,50Hz, used for illumination in the cabinet, with a B22/60W bulb
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
Package Wooden case 1 unit per case
