8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control

8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control
8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control

Large Image :  8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 251-2468 usd
Packaging Details: wooden case
Delivery Time: 25-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3,000 sets per month
Contact Now
Detailed Product Description
Size: 500*600*450mm(H*W*D)(can Be Customized) Material: Galvanized Sheet
Space: 8U For 19-inch Device Door: A Front Door
Cooling Method: Fan IP Grade: IP55
Installation: Pole Mount Package: Wooden Case
Highlight:

8U outdoor telecom cabinet

,

IP55 pole mount cabinet

,

RAL7035 thermal control cabinet

8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control


Product Overview of 8U IP55 Pole Mount Cabinet

This 8U pole mount outdoor telecom cabinet is designed for space-constrained outdoor deployments. Constructed from 1.2mm galvanized sheet with a single-layer structure, it features polyester powder coating in RAL7035 for excellent corrosion and UV resistance. The cabinet measures 500mm × 600mm × 450mm (H×W×D) and offers 8U of internal 19-inch rack space. The IP55 protection rating ensures dust resistance and protection against low-pressure water jets, making it suitable for various outdoor environments. The anti-theft three-point locking system and inner hinge design provide security and a clean appearance. Cable routing is through the bottom, and front door access allows for easy front-side maintenance without rear clearance.

For thermal management, the cabinet is equipped with 2 fans controlled by a thermal controller, operating on 220VAC 50Hz to maintain optimal internal temperatures. A modular power socket (American standard) is included for convenient AC power distribution. Optional features include a 48VDC LED light for nighttime servicing and an access control system for enhanced security. The pole-mounted design allows rapid deployment on street poles, telecommunication towers, or roadside infrastructure. Its compact footprint and customizable dimensions make it ideal for applications where space is at a premium.

Features of 8U IP55 Pole Mount Cabinet


● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Adopt highly efficient cooling unit: air conditioner

● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.

● Support remote management, improve security and minimize customer’s operation cost


Application of 8U IP55 Pole Mount Cabinet

  • 5G micro cell base stations

  • Street-level Wi-Fi access points

  • Outdoor security camera hubs

  • Traffic signal controllers

  • Remote industrial IoT gateways

  • Smart city environmental sensors

  • Rural telecom access nodes

  • Highway communication relay points


Specification of 8U IP55 Pole Mount Cabinet



ConfigurationItemTechnical Parameter
CabinetType8U Pole Mount Outdoor telecom cabinet
Protection LevelIP55
External Dimension500*600*450mm(H*W*D), can be customized
Internal Space1*19 inch 8U
Material

Material: Galvanized sheet, single layer
Material thickness: 1.2mm,

CoatingPolyester powder coating
ColorRAL7035
Lock systemAnti-theft three-point locking system
HingeInner hinge
InstallationPole mounted
Cable RoutingCable in and out from the bottom of cabinet
MaintenanceOne front door, front maintenance
CoolingFan2*fan, 1* thermal controller, 220VAC, 50Hz
Socket1 modular power socket, American standard socket
OthersOptional 48VDC LED, access control
EnvironmentWorking Temperature-40℃ ~+55℃ (+Solar Radiation)
Storage Temperature-40℃~+70℃
Working Humidity5%~95%(No condensation)
Working Altitude0~4000 meters
PackageWooden case1 unit per case

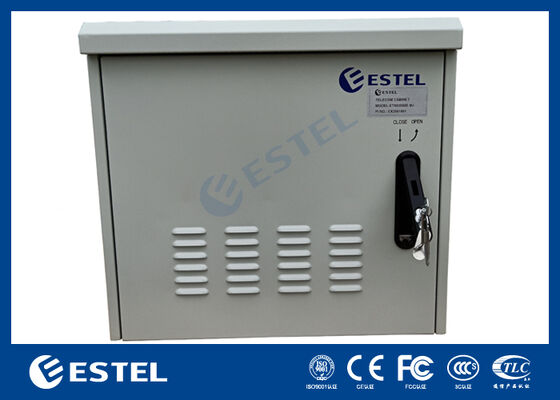

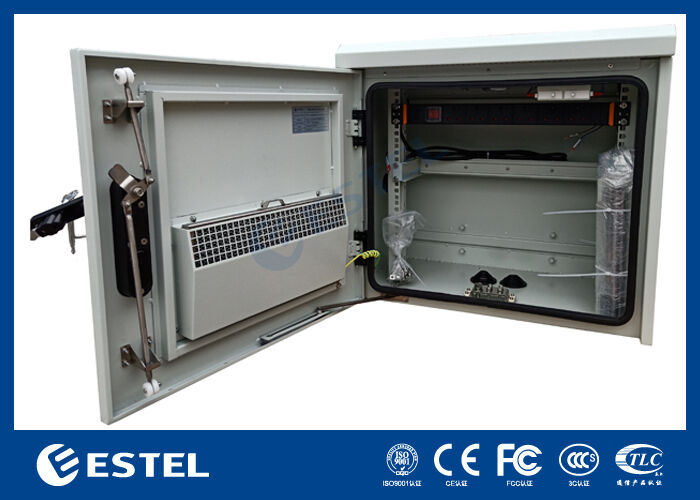

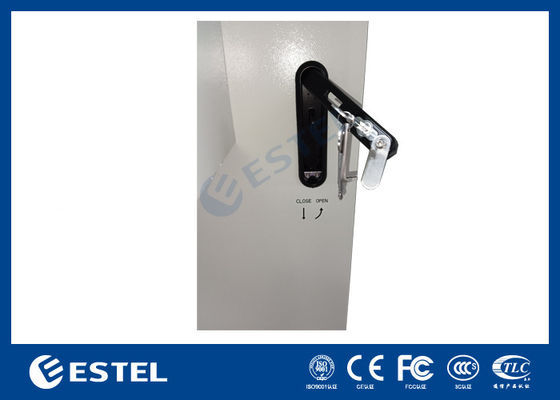

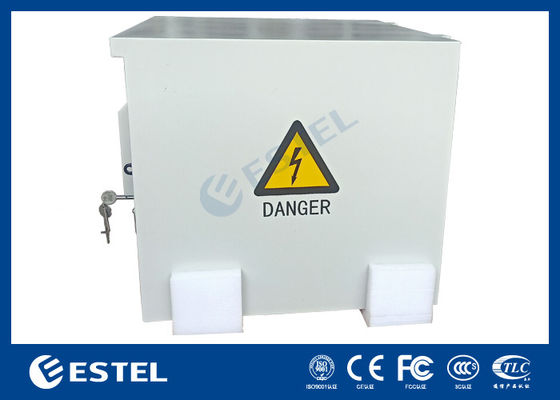

Details of 8U IP55 Pole Mount Cabinet

8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 08U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 1
8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 2
8U IP55 RAL7035 Outdoor Pole Mount Telecom Cabinet with Temperature Thermal Control 3
