48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Infrastructure
Product Details
48V90A telecom power supply
,94% efficient DC power solution
,compact telecom infrastructure power system
48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Data Center
Product Overview of DC48V 90A Power System
The ET series rectifier is a DC48V 90A power system operating at 48V, engineered to ensure reliable power distribution for telecommunications infrastructure, data centers, and industrial applications where uninterrupted operation is critical. It operates from a 220V AC single-phase input and delivers a tightly regulated DC output ranging from –43V DC to –58V DC, with a nominal value of –53.5V DC. Achieving over 94% conversion efficiency even under full load, this system is ideal for energy-efficient, high-density installations.
Designed for Continuous Operation with Modular Flexibility
Engineered with redundancy in mind, the system supports up to three hot-swappable 1740W rectifier modules in an N+1 configuration. Each module weighs under 1.5 kg and utilizes forced-air cooling for consistent thermal management. With advanced power factor correction (≥0.99) and low total harmonic distortion (THDi ≤5%), it ensures clean output power while minimizing stress on upstream equipment. The unit is housed in a 2U, 19-inch rack-mountable chassis rated IP20, enabling front-access maintenance and convenient top-side cable routing.
Specification of DC48V 90A Rectifier System
| Type | Telecom DC48V Power Distribution Unit | |||
| General | Size | 482mm*350mm*2U(Width*Depth*Height) | ||
| Weight | ≤11kg (rectifiers excluded) | |||
| Cooling method | Natural cooling | |||
| Installation method | 19-inch rack-mounted | |||
| Cabling mode | Inlet and outlet from the top | |||
| Maintenance mode | From front side, support module grade change | |||
| Protection grade | IP20 | |||
| AC Input |
Voltage |
Single-phase 220VAC | ||
| MCB | 1 x 40A 2P | |||
| Frequency | 45Hz to 65Hz, rated value: 50Hz/60Hz | |||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
|
Output Current(max)
|
90A | |||
|
Battery breaker
|
1 x 63A 1P | |||
| BLVD |
2*10A/1P+2*16A/1P+2*20A/1P+1*40A/1P |
|||
| Rectifier Module | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >94% | |||
| Rated power | 1740W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 55A | |||
| Controller | Signal input port | 2 x AI(2 ambient temp) , 8 x DI | ||
| Alarm output port | 2 x dry contact | |||
| Communication port | RS485, SNMP | |||
| LCD Display | Supported | |||
| Environment | Operating temperature |
-40℃ ~ +65℃ (full output below 50℃) | ||
| Storage temperature | -40℃~+70℃ | |||
| Operating humidity | 5%~95%(non-condensing) | |||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|||

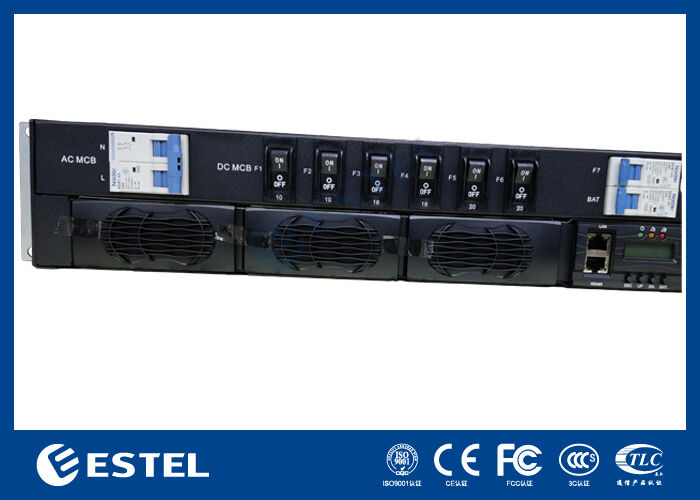

Front View of DC48V 90A Rectifier System

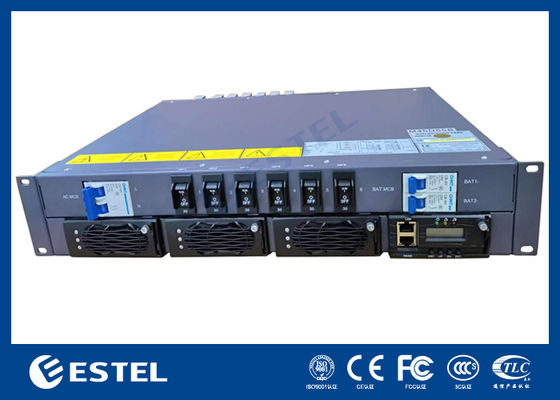

Front View of DC48V 90A Rectifier System

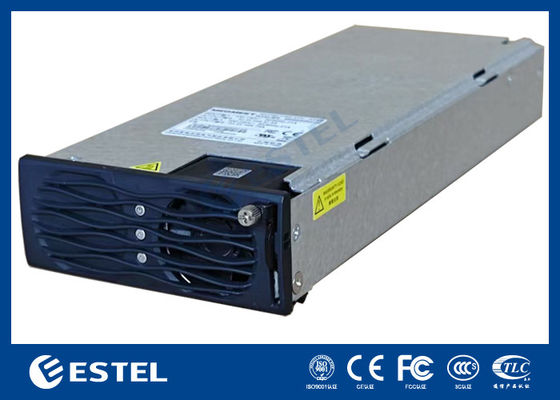

Rectifier Module of DC48V 90A Power System
-
