The 6U 36kW Integrated ET48600 DC Rack Power System represents a compact, carrier-grade DC power conversion solution tailored for telecommunications central offices, mid-to-large scale data centers, and industrial settings requiring uninterrupted DC power. Operating from a single-phase 220V AC without a built-in circuit breaker, it employs rear copper busbars for wiring and provides fine-adjustable DC output ranging from –43V to –58V, with a nominal setting of –53.5V. With a peak capacity of 36kW, the system consistently achieves conversion efficiencies exceeding 96% across a broad load spectrum—lowering both electricity costs and cooling demands.

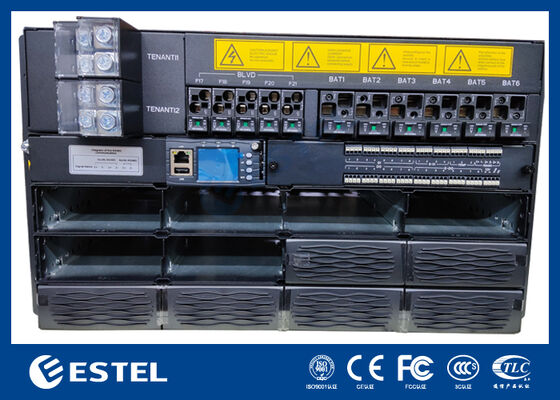

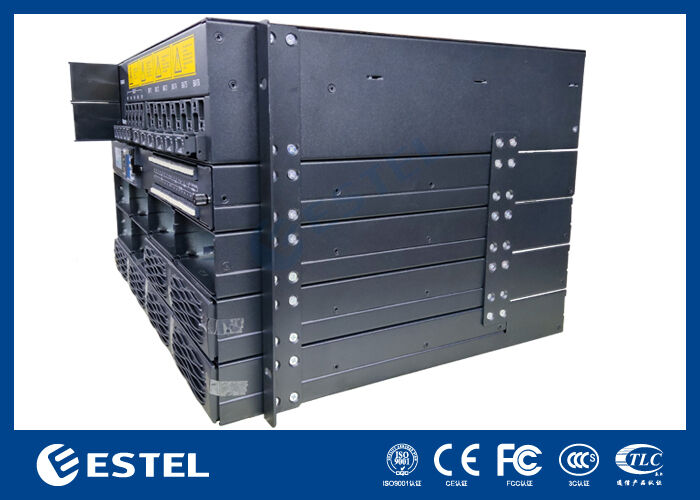

Structure of ET48600 48VDC 600A Telecom Power System

• 6U height – fits standard 19-inch racks

• Natural cooling – no fans, silent operation, zero dust ingress

• Top inlet & top outlet cabling – clean front access, no floor trench required

• Front maintenance & module-grade hot-swap – all service from front, no rear clearance needed

• IP20 protection – safe for indoor equipment rooms and shelters

AC Input of ET48600 48VDC 600A Telecom Power System

• Single-phase 220VAC – no built-in circuit breaker

• Rear copper busbar wiring – direct distribution for multi-cabinet systems

• 45~65Hz frequency – generator and grid compatible

DC Output of ET48600 48VDC 600A Telecom Power System

• -43~-58VDC output (rated -53.5VDC)

• 36kW maximum capacity – 12 x 3kW rectifier modules

• N+1 redundancy – full output with 11 modules

Battery & Load Distribution of ET48600 48VDC 600A Telecom Power System

• 6 x 125A/1P battery breakers – supports up to 6 independent battery strings

• LLVD1 & LLVD2: 300A terminal blocks – connect external expansion distribution boxes

• BLVD: 3 x 6A/1PN + 1 x 10A/1PN + 1 x 16A/1PN

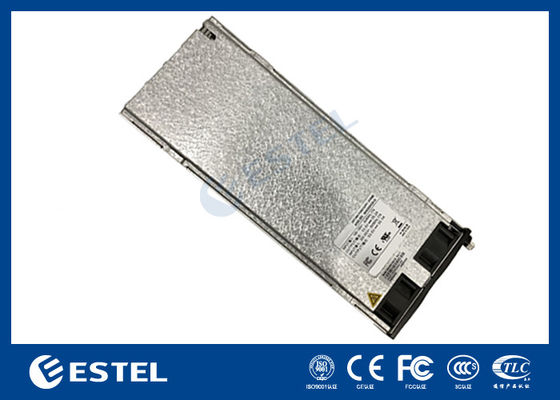

Rectifier Module of ET48600 48VDC 600A Telecom Power System

• 85~300VAC ultra-wide input – works through severe grid dips

• >96% efficiency – low heat, low operating cost

• 3000W in 1U – high power density

• -40℃~+75℃ operation – full output below 50℃

• Forced cooling – independent from chassis natural cooling

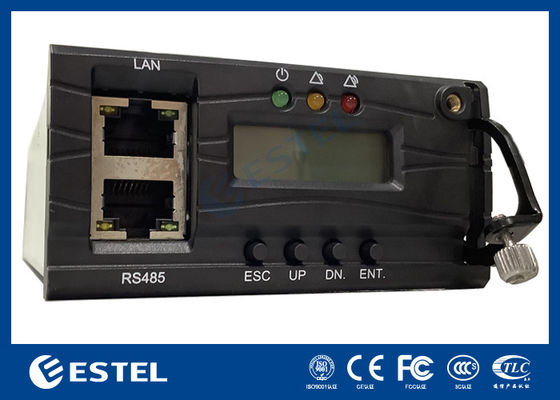

Controller and I/O Board of ET48600 48VDC 600A Telecom Power System

• 3 x AI (ambient temperature monitoring)

• 8 x DI + 4 x E-DI – 12 digital inputs total

• 8 x DO + 8 x E-DO – 16 alarm outputs total

• RS485 & SNMP – dual protocol remote management

• LCD display – local status and configuration
