ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring

ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring
ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring

Large Image :  ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC
Model Number: ET48300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 535-3338 usd
Packaging Details: carton/wooden case
Delivery Time: 20-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80,00 sets per month
Contact Now
Detailed Product Description
Dimension: 482.6(W)*350.0(D)*5U(H) Max Rectifier Power: 18kw
Rectifier Module: 3kw, 6 Pcs Controller: MC2600
SNMP: Support RS485: Support
Customizable: Support Package: Carton/wooden Case
Highlight:

19 inch telecom power system

,

telecom power system with RS485

,

remote monitoring telecom power system

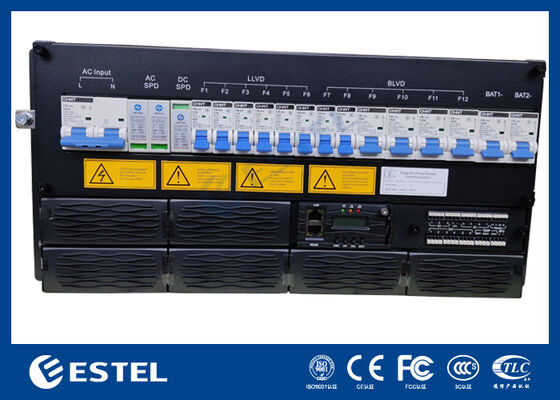

ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring



Product Overview of 18kw 96% Efficiency Telecommunication Power System

The ET48300-M5S65 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC 125A/2P (dual live-line supported) input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 18kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.

The DC distribution panel is equipped with 2*125A/1P battery circuit breakers and includes LLVD & BLVD functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 7 digital status inputs, and 6 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.

ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring 0







Rectifier Module of 18kw 96% Efficiency Telecommunication Power System

Featuring a modular and redundant design, the system supports up to 6*3000W rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 3U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.



of 18kw 96% Efficiency Telecommunication Power System

The ET48300-M5S65 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC 125A/2P (dual live-line supported) input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 18kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.

The DC distribution panel is equipped with 2*125A/1P battery circuit breakers and includes LLVD & BLVD functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 7 digital status inputs, and 6 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.

ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring 0







Rectifier Module of 18kw 96% Efficiency Telecommunication Power System

Featuring a modular and redundant design, the system supports up to 6*3000W rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 3U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.





Advantages of 18kw 96% Efficiency Telecommunication Power System

Wide range AC input (85VAC~300VAC) - Operates through severe brownouts and overvoltage events without switching to battery

>96% efficiency – Minimizes heat generation and electricity costs

3000W output from 176~300VAC input – High power density in 1U form factor

-40℃ to +75℃ operating range – Full rated output below 50℃, reliable in extreme climates

≥0.99 power factor & ≤5% THD – Grid-friendly operation with minimal harmonic distortion












Specifications of 18kw 96% Efficiency Telecommunication Power System

Type ET48300-M5S65
System Dimension 482.6(W)*350.0(D)*5U(H)
Weight ≤25kg (without rectifiers)
Cooling mode Natural cooling
Installation mode Installed on 19-inch rack or inside the cabinet
Cabling mode Top inlet and top outlet
Maintenance mode Front maintenance, support module grade change
Protection level IP20
AC
Distribution		 Input mode 220VAC 125A/2P (dual live-line supported)
Input frequency 45~65Hz, rated value: 50Hz/60Hz

AC SPD



 20kA/40kA, 8/20μs
DC
Distribution		 Output voltage -43~-58VDC, rated value: -53.5VDC
Maximum capacity 18kW(6*3kw, N+1 redundancy)
Battery breakers 2*125A/1P
Load breakers

LLVD: 2*63A/1P+4*100A*1P

BLVD: 3*16A/1P+3*32A/1P
DC SPD

10kA/20kA, 8/20μs
Rectifier Input voltage 85VAC～300VAC, rated 220VAC
Efficiency >96%
Rated power 3000W(176~300VAC)
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight ≤2kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller Signal input 3 AI (3 ambient temp), 7 DI
Alarm output 6 dry contact
Communication port RS232/485, SNMP
Display mode LCD
Environment Operating
temperature		 -40℃ ~ +65℃ (full output below 50℃)
Storage temperature -40℃~+70℃
Operating humidity 5%~95%(non-condensing)
Altitude 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating
temperature decreases by 1℃ as the altitude increases by 200m.)

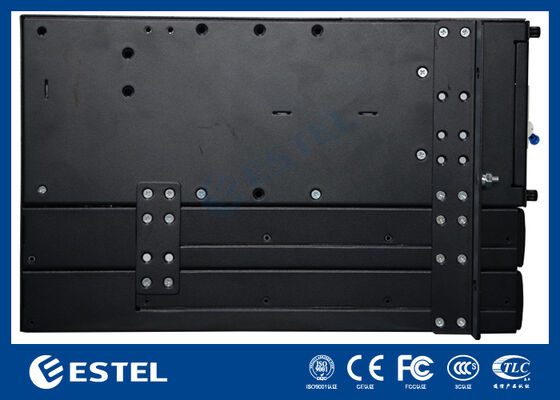

Side Structure of 18kw 96% Efficiency Telecommunication Power System



ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring 2

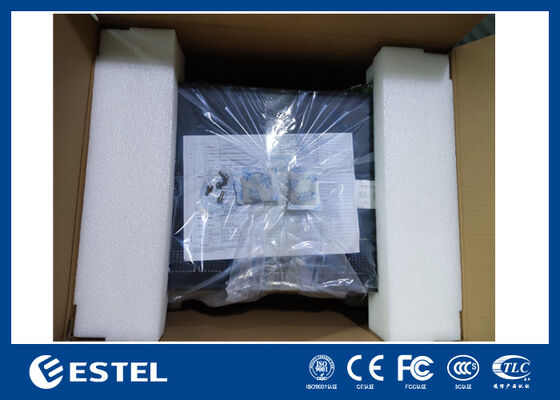

Package of 18kw 96% Efficiency Telecommunication Power System



ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring 3
