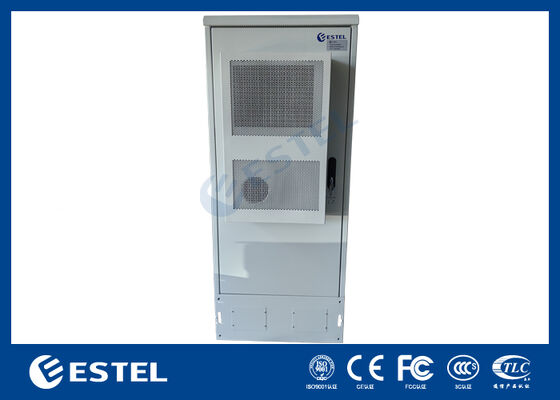

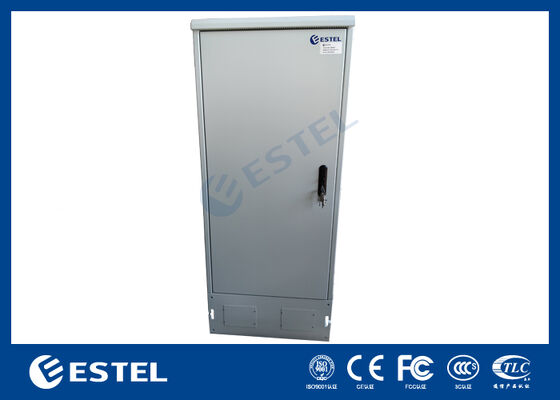

12kW Rectifier and 6kW Solar Power Cabinet for Solar Site

Large Image : 12kW Rectifier and 6kW Solar Power Cabinet for Solar Site

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	CE UL FCC
Model Number:	ET7575200-38U-12kW+6kW

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	715-4286 usd
Packaging Details:	Wooden case
Delivery Time:	15-30 days
Payment Terms:	T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:	3000 sets per month

Contact Now

Detailed Product Description

Cabinet Dimension:	WxDxH=7507502000mm (Can Be Customized)	Rectifier Power:	12kW
Solar Powe:	6kW	SNMP:	Support
Rectifier Module:	6pcs 4kW Modules	Cooling:	1500W
IP Grade:	IP65	Packaging:	Wooden Case
Highlight:	12kW rectifier solar power cabinet , 6kW solar power cabinet , telecom power system with warranty

12kW Rectifier and 6kW Solar Power Cabinet for Solar Site

1. Introduction of 12kW Rectifier + 6kW Solar Power Cabinet

This 12kW+6kW hybrid power cabinet is specially design for outdoor telecom use in areas with both grid power and solar panels. It is very suitable for telecom site with unstable grid power or area with expensive electriciy supply at peak hours.

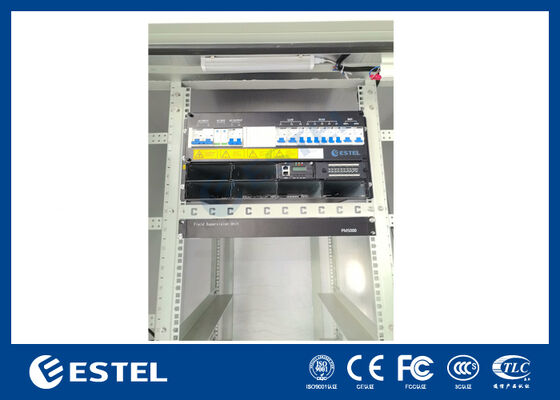

This model is designed with 38U space, with a 6U telecom power system, and the rest 32U is for user equipment.

For different requirements of power capacity or equipment space, please consult ESTEL for consultation. And all the power cabinets are deigned and manufacturer by ESTEL at its factory, we have sales representative can speak different languages, and structure engineers, electrical engineers to support client's consultation, please feel free to contact ESTEL.

2. Application Scope

Wireless communication;
Broadband and network access;
Satellite communications ground station;
3G/4G base station;
Telecom roadside cabinet;
Unstable grid areas;

3. Features of the Hybrid Telecom Power System

Superior power performance and uncompromised reliability;
IP65 sturdy enclosure, weather proof, anti-theft design;
Hot-pluggable module slots, compatible with both rectifier module and solar module, plug-and-play;
19'' rack based solution, compatible with most IT equipment;
Temperature controlled, energy efficiency, smart control;
Design life more than 10 years.

4. Technical Parameters of 18kW Telecom Rectifier Power Cabinet

Item	Parameter
Model	ET7575200-38U-24kW
Protection Level	IP65
External Dimension	2000 (H) × 750 (W) × 750 (D) mm, including a base of 150mm high (cabinet dimensions can be customized)
Internal Space	19’’ standard rack, 38U
Material	Quality galvanized steel sheet, single-wall structure:
Insulation	With
Door	One front door
Lock	Anti-theft three-point lock
Hinge	Inner hinge
Coating	Polyester powder coating
Color	RAL7035 (or according to client’s request)
Cable Routing	Cable in and out from the bottom of cabinet
Installation	Floor mounted, Wall-mounted
Air Conditioner	600W, -48VDC

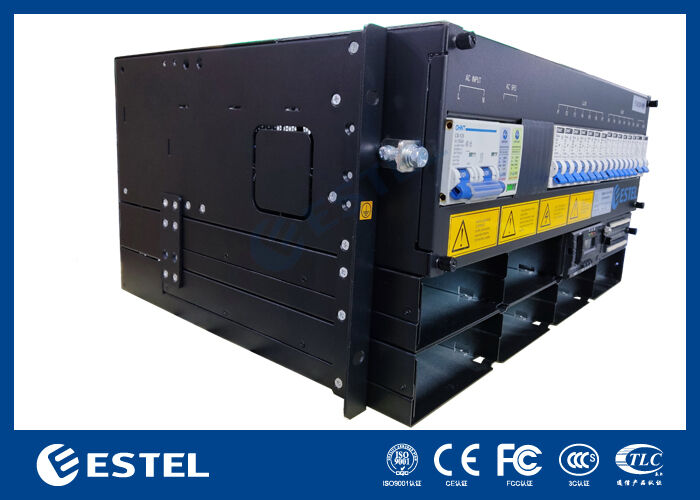

Telecom Power System	(1) Power System Capacity: - Rectifier: Max. 12kW (4× 3kW); - Solar: Max. 6kW (2x 3kW); (2) AC Input: 220VAC, Single-phase; - AC input MCB: 1× 63A/4P; - AC SPD: 1× 20kA/40kA, 8/20μs; (3) DC Output: -48VDC - LLVD MCBs: 4× 63A/1P; - BLVD MCBs: 2× 32A/1P, 4× 16A/1P; - DC SPD: 1× 10kA/20kA, 8/20μs; (4) Battery MCBs: 4× 125A/1P; (5) With smart controller
FSU	Field Monitoring System, connects to sensors (door/smoke/water/temperature/humidity/fuel), air conditioners, batteries, etc. Support remote central platform monitoring and configuration

5. How to Buy Customized Power Cabinet from ESTEL

ESTEL will receive client’s power system technical requirements, and work out a technical plan for client’s review. As ESTEL has more than 10 years experience in this area, also ESTEL’s power cabinet and solutions have been broadly well recognized by telecom operation area clients of various countries, the client may raise comments for the power cabinet design and configuration, after that a commonly agreed solution with technical drawings will be confirmed.
