18kW Telecom Rectifier Power with IP65 Enclosure for Telecommunication Site
Basic Properties
Place of Origin:
China
Brand Name:
ESTEL
Certification:
CE UL FCC
Model Number:
ET7575200-38U-24kW
Trading Properties
Minimum Order Quantity:
1 Set
Price:
715-4286 usd
Payment Terms:
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:
3000 sets per month
Product Summary
18kW Telecom Rectifier Power with IP65 Enclosure for Telecommunication Site 1. Introduction of 18kW Telecom Rectifier Power Cabinet This 18kW power cabinet is design for outdoor use in telecom sites, it is designed with 38U space, with a 6U telecom power system, and 32U space is reserved for user’s ...
Product Details
Highlight:
18kW telecom rectifier power
,IP65 telecom rectifier enclosure
,telecommunication site power system
Cabinet Dimension:
WxDxH=750*750*2000mm (Can Be Customized)
Material:
Galvanized Sheet
Power Size:
6U
Power Capacity:
24kW
Rectifier Module:
6pcs 4kW Modules
Cooling:
1500W
IP Grade:
IP65
Packaging:
Wooden Case
Product Description

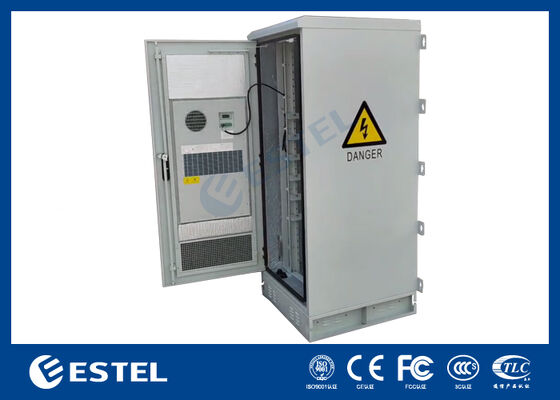

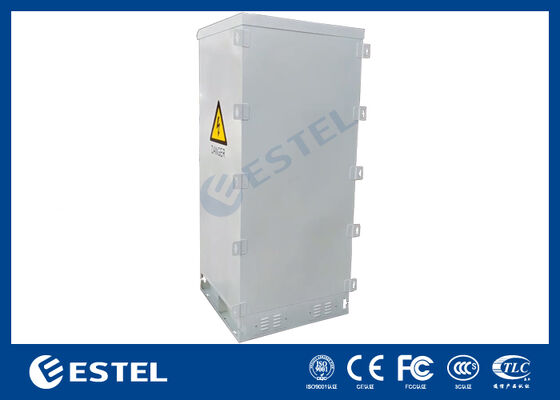

18kW Telecom Rectifier Power with IP65 Enclosure for Telecommunication Site
1. Introduction of 18kW Telecom Rectifier Power Cabinet

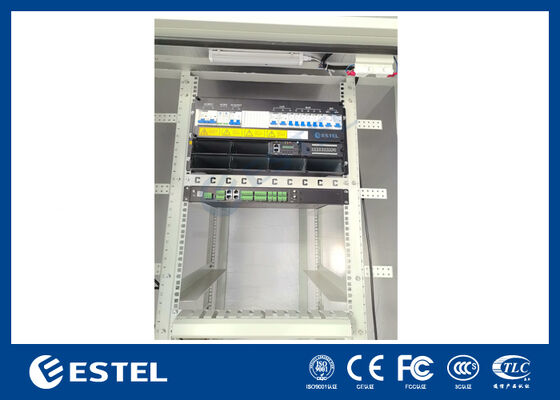

This 18kW power cabinet is design for outdoor use in telecom sites, it is designed with 38U space, with a 6U telecom power system, and 32U space is reserved for user’s telecom equipment and batteries.
This cabinet is designed and manufacturer by ESTEL at its factory. And this model has been proved with stable performance. And all the materials and components are telecom grade.
2. Application Scope
- Wireless communication;
- Broadband and network access;
- Satellite communications ground station;
- 3G/4G base station;
- Telecom roadside cabinet;
- Off grid or unstable grid areas;
3. Features of 18kW Telecom Rectifier Power Cabinet
- IP65 sturdy enclosure, weather proof, anti-theft design;
- 19'' rack based solution, compatible with most IT equipment;
- Temperature controlled, energy efficiency, smart control;
- Rectifier power efficiency >96%;
- Module solts compatible with MPPT module;
- Design life more than 10 years.
4. Technical Parameters of 18kW Telecom Rectifier Power Cabinet
| Item | Parameter |
| Model | ET7575200-38U-24kW |
| Protection Level | IP65 |
| External Dimension | 2000 (H) × 750 (W) × 750 (D) mm, including a base of 150mm high (cabinet dimensions can be customized) |
| Internal Space | 19’’ standard rack, 38U |
| Material | Quality galvanized steel sheet, single-wall structure: |
| Insulation | With |
| Door | One front door |
| Lock | Anti-theft three-point lock |
| Hinge | Inner hinge |
| Coating | Polyester powder coating |
| Color | RAL7035 (or according to client’s request) |
| Cable Routing | Cable in and out from the bottom of cabinet |
| Installation | Floor mounted, Wall-mounted |
| Air Conditioner | 600W, -48VDC |

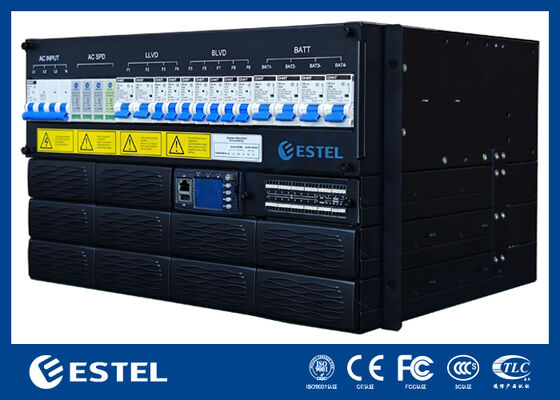

| Telecom Power System |
(1) Power System Capacity: Max. 24kW (8× 3kW); (Optional for solar system) (2) AC Input: 220VAC, Single-phase; - AC input MCB: 1× 63A/4P; - AC SPD: 1× 20kA/40kA, 8/20μs; (3) DC Output: -48VDC - LLVD MCBs: 4× 63A/1P; - BLVD MCBs: 2× 32A/1P, 4× 16A/1P; - DC SPD: 1× 10kA/20kA, 8/20μs; (4) Battery MCBs: 4× 125A/1P; (5) With smart controller |
5. How to Buy Customized Power Cabinet from ESTEL
ESTEL will receive client’s power system technical requirements, and work out a technical plan for client’s review. As ESTEL has more than 10 years experience in this area, also ESTEL’s power cabinet and solutions have been broadly well recognized by telecom operation area clients of various countries, the client may raise comments for the power cabinet design and configuration, after that a commonly agreed solution with technical drawings will be confirmed.
