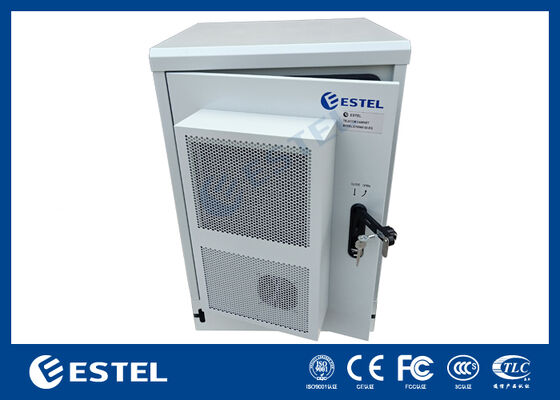

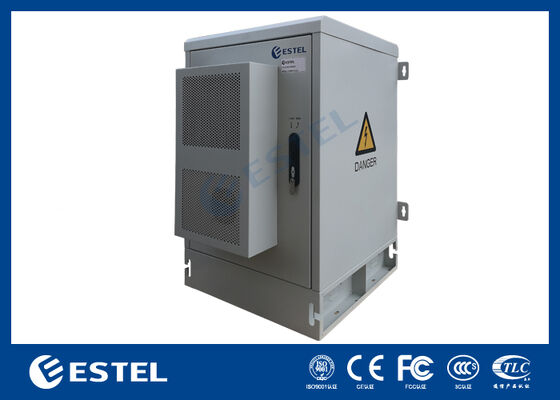

32kW Telecom Power Panel with Two Doors for DC48V Supply of Telecom Equipment
Basic Properties
Place of Origin:
China
Brand Name:
ESTEL
Certification:
CE UL FCC
Model Number:
ET6565100-12U-32kW
Trading Properties
Minimum Order Quantity:
1 Set
Price:
715-4286 usd
Payment Terms:
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:
3000 sets per month
Product Summary
32kW Telecom Power Panel for DC48V Supply of Telecom Equipment 1. Cabinet Features Item Parameter Dimensions (mm) 650*650*850 Base (mm) 650*650*150 Internal Space 19’’, 10U Materials Galvanized sheet Cooling 500W air conditioner, 220VAC 50Hz Door One front door & One rear door Hinge Embedded Lock ...
Product Details
Highlight:
32kW telecom power panel
,DC48V telecom power supply
,two-door telecom power system
Cabinet Dimension:
WxDxH=650*650*1000mm (Can Be Customized)
Internal Space:
19'' Standard Rack, 12U Space
Material:
Galvanized Sheet
Power Capacity:
32kW
Rectifier Module:
8pcs 3kW Modules
Cooling Method:
Air Conditioner Or Forced Fan System
IP Grade:
IP65
Packaging:
Wooden Case
Product Description
32kW Telecom Power Panel for DC48V Supply of Telecom Equipment

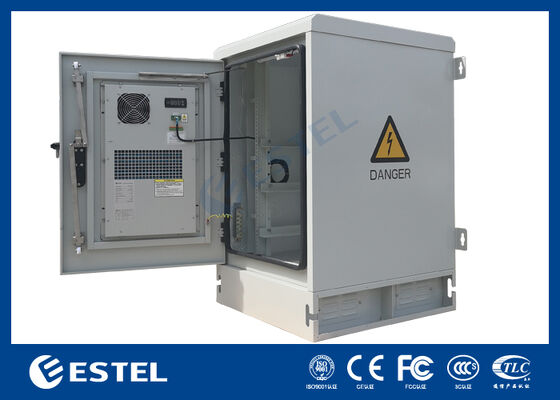

1. Cabinet Features
| Item | Parameter |
| Dimensions (mm) | 650*650*850 |
| Base (mm) | 650*650*150 |
| Internal Space | 19’’, 10U |
| Materials | Galvanized sheet |
| Cooling | 500W air conditioner, 220VAC 50Hz |
| Door | One front door & One rear door |
| Hinge | Embedded |
| Lock | There-point security lock |
| Coating | Electrostatic powder spraying, RAL 7035 |
| Packaging | Wooden case |

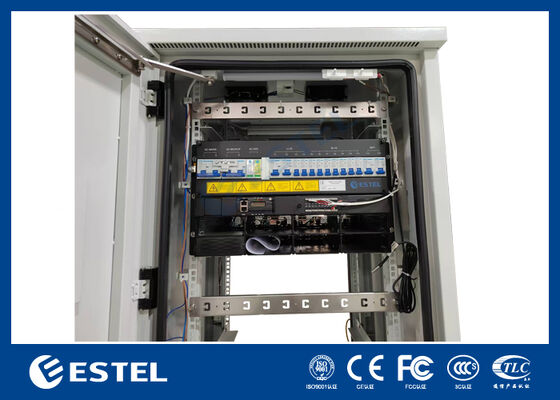

2. Power Subrack Features
| Item | Parameter |
| Size | W × D × H = 482.6mm × 350.6mm × 6U (H) |
| Weight | ≤ 30kg (Without modules) |
| Cooling | Natural cooling |
| Installation | 19’’ standard rack mountable |
| Cable Routing | Bottom in and top out |
| Maintenance | Front maintenance, hot-swappable |
| IP Grade | IP20 |
3. AC Power Distribution Features
| Item | Parameter |
| Input | Single-Phase 220VAC |
| Input MCB | 1× 125A/3P |
| Frequency | 45-65Hz, Rated value: 50Hz/60Hz |
| AC SPD | 40kA/80kA, 8/20μs |
| AC Output | 2× 32A/1P |
4. DC Power Distribution Features
| Item | Parameter |
| Output | -43VDC to -58VDC, Rated output: -53.5VDC |
| Max. Capacity | 36kW Rectifier System (12× 3kW); |
| Battery MCBs | 8× 125A/1P |
| Load MCBs |
LLVD: 10× 125A/1P; BLVD: 9× 63A/1P, 2× 16A/1P; |
| DC SPD | 20kA/40kA, 8/20μs |
5. Rectifier Module
| Item | Parameter |
| Input Voltage | 85VAC - 300VAC, Rated value: 220VAC |
| Efficiency | ≥ 96% |
| Rated Output Power | 3000W (176VAC - 300VAC) |
| Working Temperature | -40℃ to +75℃ (50℃ @full load output) |
| Size | W × D × H = 106.5mm × 286mm × 41.5mm (1U) |
| Weight | ≤ 2.1kg |
| Cooling | Forced air cooling |
| Power Factor | ≥ 0.99 @220VAC, 20% - 100% load |
| Weight | ≤ 2kg |
| Cooling | Forced air cooling |
| MPPT Accuracy | ≥ 0.99 |
6. Power Monitoring Features
| Item | Parameter |
| Signal Input |
4-way AI (3 battery temperature sensors, 1 ambient temperature sensor); 8-way DI |
| Alarm Output | 8-way DO |
| Communication Ports | LAN, USB, RS485, SNMP |
| Display Mode | LCD |
7. Environment Features
| Item | Parameter |
| Working Temperature | -40℃ to +70℃ (50℃ @full load output) |
| Storage Temperature | -40℃ to +75℃ |
| Working Humidity | 5% - 95% |
| Altitude | 0-3000m (When the altitude is between 2000m and 3000m, the maximum operating temperature decreases by 1°C with every 200m increase in altitude) |
