Advanced 30kw Rectifier Power System Intelligent DC Power Distribution
Product Overview of 30kw Rectifier Power System Intelligent DC Power
The ET48750-M7E1010 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 380VAC three-phase input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 30kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.
The DC distribution panel is equipped with 2*250A/2P battery circuit fuse and includes 2*LLVD and a BLVD functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 7 digital status inputs, and 6 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.
Specification of 30kw Rectifier Power System Intelligent DC Power
| System | Dimension | 482.6(W)*350.0(D)*10U(H) | ||
| Weight | ≤45kg (without rectifiers) | |||
| Cooling mode | Natural cooling | |||
| Installation mode | Installed on 19-inch rack or inside the cabinet | |||
| Cabling mode | Top inlet and top outlet | |||
| Maintenance mode | Front maintenance, support module grade change | |||
| Protection level | IP20 | |||
| AC Distribution |
Input mode | 380VAC three-phase, 125A/4P | ||
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |||
|
AC SPD
|
20kA/40kA, 8/20μs | |||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
| Maximum capacity | 18kW(6*3kw, N+1 redundancy) | |||
| Battery breakers | 2*250A/2P fuse | |||
| Load breakers |
LLVD1: 2*63A/1P+3*100A/1P; |
|||
| DC SPD | 10kA/20kA, 8/20μs | |||
| Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >96% | |||
| Rated power | 3000W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 55A | |||
| Controller | Signal input | 3 AI (3 ambient temp), 7 DI | ||
| Alarm output | 6 dry contact | |||
| Communication port | RS232/485, SNMP | |||
| Display mode | LCD | |||

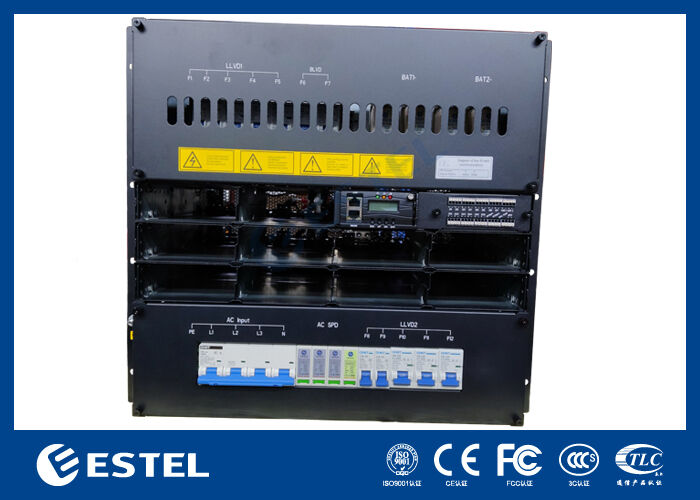

Front View of 30kw Rectifier Power System Intelligent DC Power

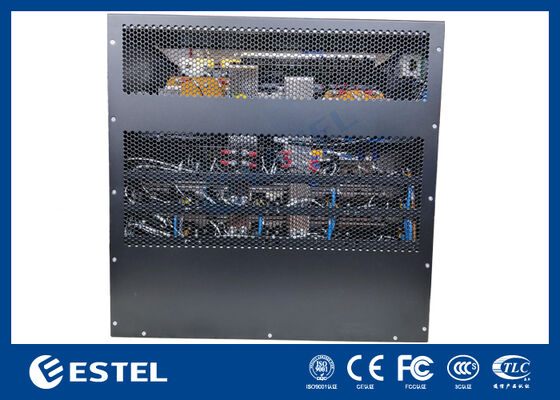

Rear View of 30kw Rectifier Power System Intelligent DC Power
Rectifier Module of 30kw Rectifier Power System Intelligent DC Power
Wooden Case Package of 30kw Rectifier Power System Intelligent DC Power
-
