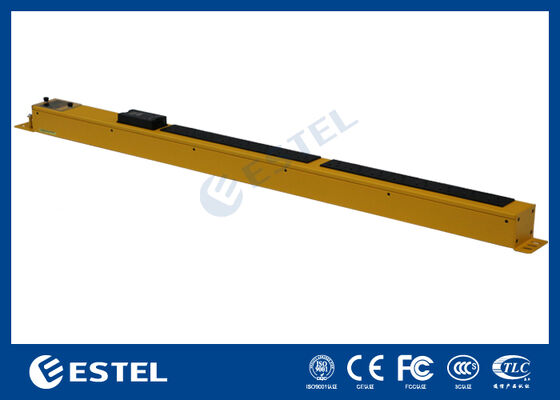

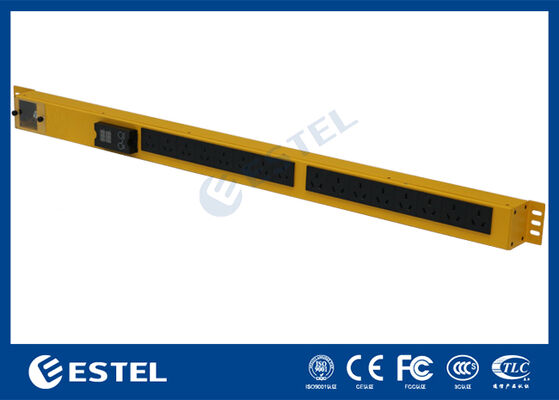

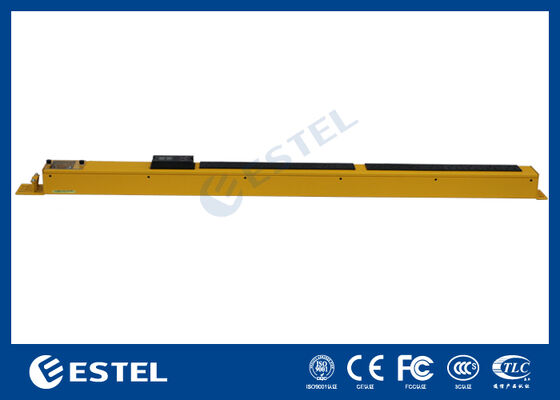

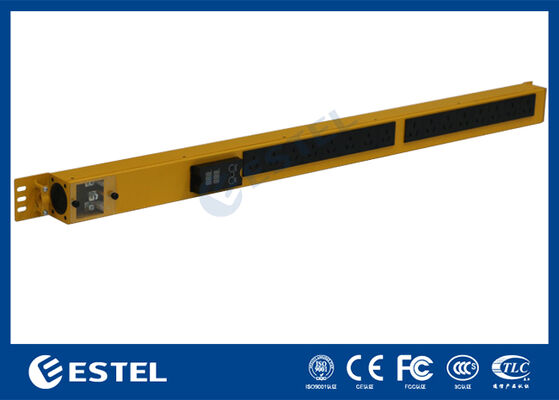

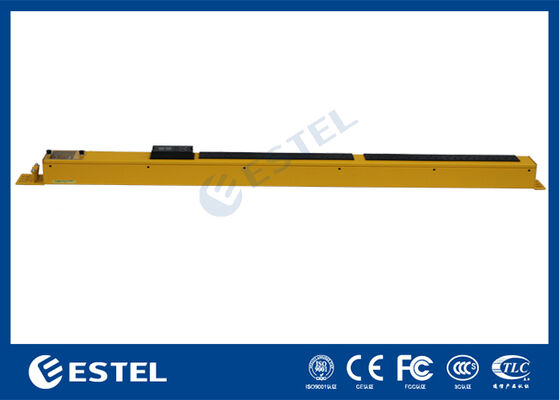

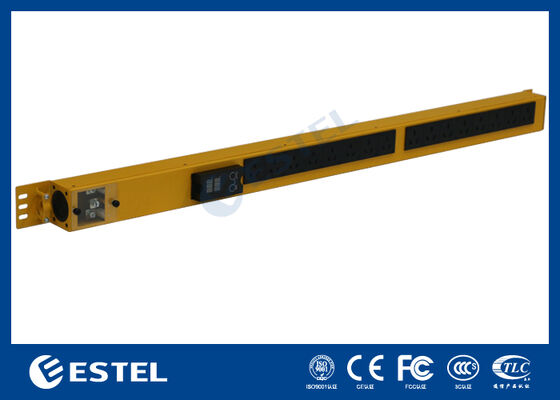

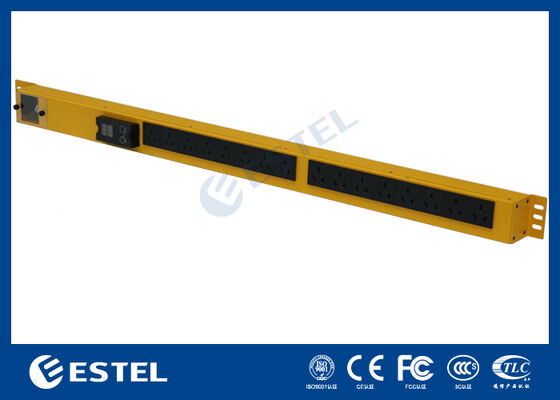

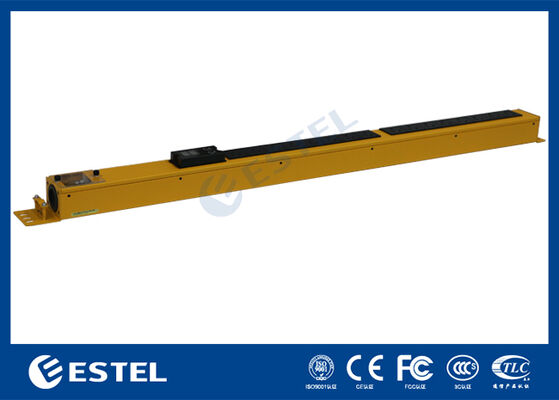

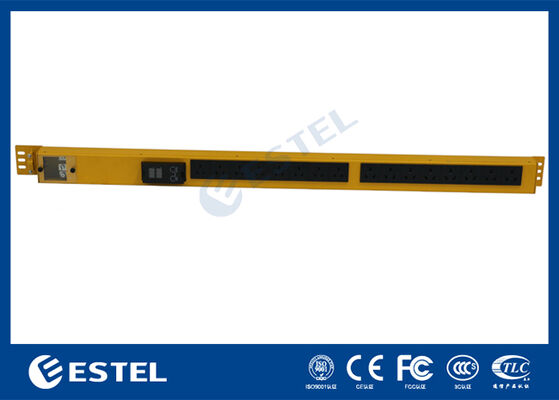

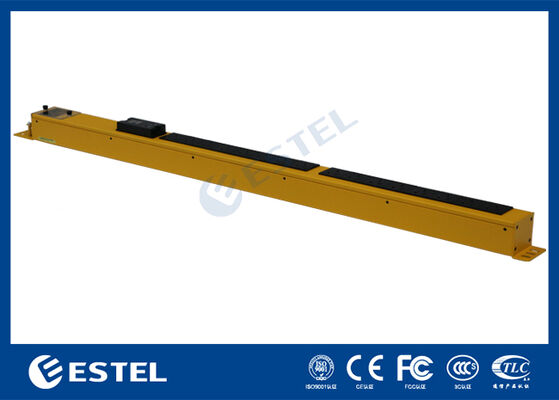

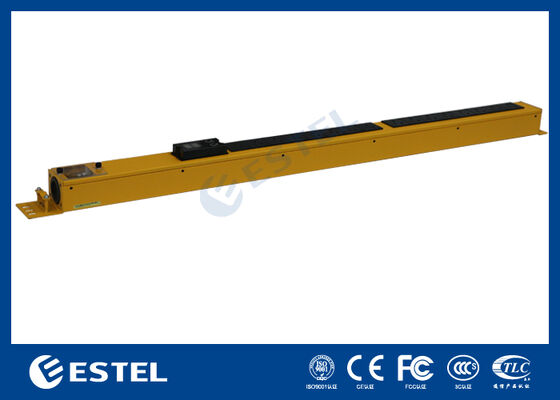

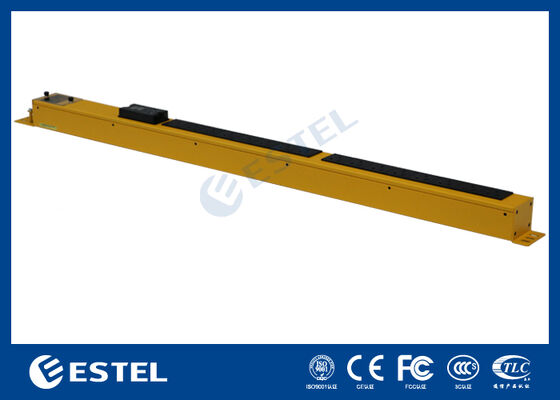

Standard PDU (Power Distribution Unit)
The Standard PDU is a robust and reliable power distribution unit designed to provide efficient power management for a variety of IT and industrial applications. Made from high-quality metal sheet material, this PDU is built to last and offers flexibility for different installations. It features a vertical installation mode, making it perfect for custom setups or environments where space efficiency is important.
Key Features:
Color: Standard RAL9005 black, with the option for customized colors to match your design or branding needs.
Electrical Specifications:

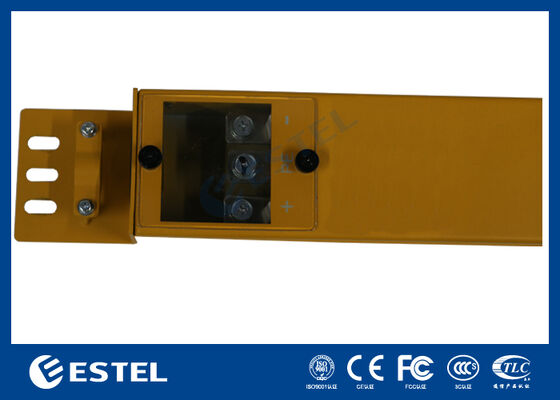

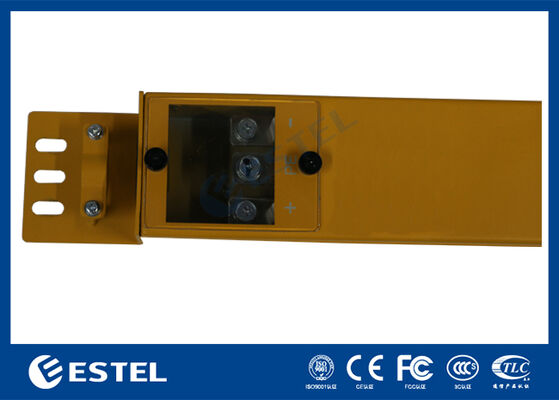

Input Power: 200-240VAC, 50/60Hz, with a 32A 3P terminal connection, ensuring safe and secure power input.
Maximum Input Current: 16A, designed for efficient power handling and protection against overloads.
Output Power: 200-240VAC, 50/60Hz, providing stable and reliable power distribution to all connected devices.
Maximum Output Current: 16A per output.
Socket System:
Socket Configuration:
8 x GB10A sockets for standard power connections.
8 x GB16A sockets for higher current requirements, offering flexibility for different types of equipment.
Each socket is equipped with a switch, allowing individual control of each connected device to optimize energy consumption and enhance power management.
Monitoring Feature:

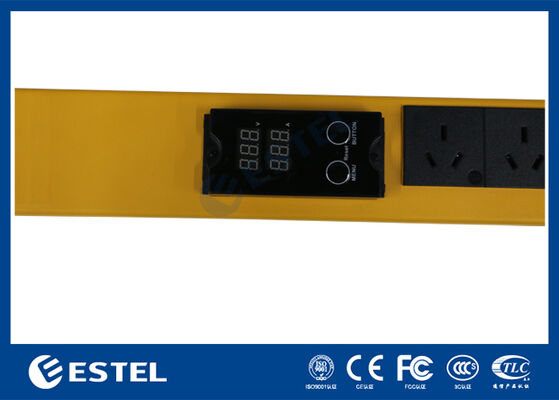

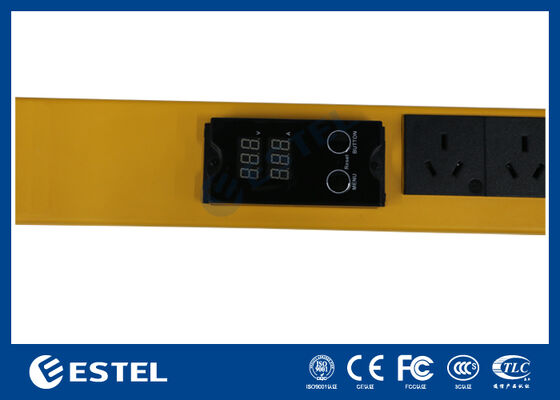

Voltage and Current Meter (B4): The PDU comes equipped with a B4 voltage and current meter, allowing real-time monitoring of both voltage and current for accurate power usage tracking. This feature ensures that users can monitor and maintain efficient energy usage, reducing the risk of overloads and equipment failure.
Installation:
Installation Mode: The PDU is designed for vertical installation, offering a compact and space-saving solution for racks or cabinets. This mode is ideal for environments with limited space or when maximizing vertical space is a priority.
The Standard PDU offers a flexible and durable solution for managing power distribution in various setups. With its combination of versatile socket configurations, real-time monitoring capabilities, and space-efficient vertical installation design, it is ideal for data centers, server rooms, and other professional environments requiring reliable power management.
| Product Type |
Ordinary PDU |
| Model |
4 |
| Material |
Sheet metal |
| Color |
RAL9005 (Customizable) |
| Input |
200-240VAC; 50/60Hz, terminal block 32A3P |
| Maximum Input Current |
16 A |
| Output |
200-240VAC; 50/60Hz |
| Maximum Output Current |
16A |
| Socket system and number |
8 standard 10A sockets + 8 standard 16A sockets |
| Installation Mode |
Vertical installation |
| Monitoring function |
B4 Voltage and Ammeter |
