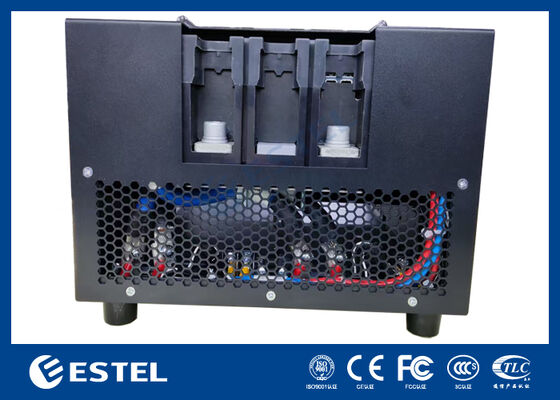

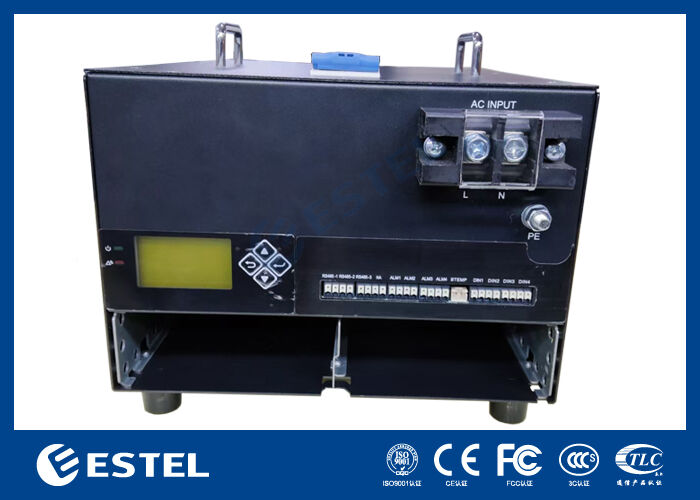

24V DC Power with Rectifiers for 150A and Customizable DC Power
1. Introduction of ESTEL Telecom Power System
ESTEL power systems provide an ultra-wide range of telecom power supplies, and the maximum power supply is up to 3600A. ESTEL power system are compatible with rectifiers of 2kW/3kW/4kW/etc. All ESTEL telecom power system adopts hot-swappable modules, and the power system equipped with highly compatible modules slots, supporting easy expansion and easy maintenance.
2. Features of ESTEL Telecom Power System
All ESTEL power products and power modules are made of premium components with guaranteed reliability and proved longer life span.
ESTEL provides sub-rack power systems with the height from 1U to 25U with the width of 19’’ to 23’’. ESTEL also provides portable power system to adapt to client’s application. All power system are customizable based on every client’s needs.
ESTEL’s power systems are widely used in many industries, such as telecom industry, power supply industry, etc. Most of the products are designed for rugged outdoor environment use.
3. Characteristics of 24V DC 150A Power
| Function |
Description |
| Parameter settings |
- AC input parameters: over voltage, under voltage
- DC output parameters: over voltage, under voltage, current limit, LLVD power supply limits, battery power limits
- Power module parameters
- Protocol, control and monitoring settings
|
| Real-time monitoring |
- AC input: phase voltage, over voltage, under voltage, phase lost, power outage, surge protection
- DC output: voltage, current, electricity consumption, battery residual level, load power status
- Power module: input voltage and current, output voltage and current, current limit
- Temperature parameters
|
| Alarm Records |
Even, equipment ID, time record |
| Electricity consumption records |
Electricity consumption, user ID, time record |
| Parameter loading |
Up to 100 parameters |
| Testing and calibration |
Load current, battery voltage, SPD, temperature parameters, dry contact inputs |
4. FAQ (Frequently Asked Questions)
1) Can ESTEL provide power system with input and output voltage and current based on customer’s requirements?
Reply: Yes. ESTEL manufacturers all the power system in its own factory, and with many years of experience in power area, ESTEL have wide variety of power system designs and power module models can be used either for customer’s reference or selection, ESTEL equipped with a technical development team and prototype production and validation team, which can support a new design from scratch based on customers’ needs.
2) Can ESTEL ship power products to oversea countries? As customers have no experience of import from China.
Reply: ESTEL has 10+ years experience for manufacturing and exporting power products, at customer’ request, ESTEL will package the products and arrange delivery of the product to customer’s hand.
3) What quality warranty can ESTEL provide?
Reply: All ESTEL’s power products’ design life time is >10 years, all the components are premium quality. With following the operation and maintenance guidance written on ESTEL products manual, the power system life time is ensured. For different types of power products, ESTEL provides different years of quality warranty, please consult our sales representative. For all the malfunction within warranty period, ESTEL will provide free replacement parts.
