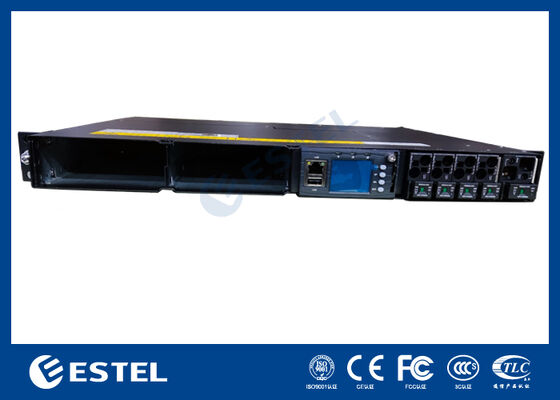

Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking

Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking
Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking

Large Image :  Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: ET48150-M7E21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 358-2143 usd
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Contact Now
Detailed Product Description
Dimension: 482.6(W)*350(D)*44(1U/H) Weight: ≤7kg (without Rectifiers)
Cooling Mode: Natural Cooling Installation Mode: Installed On 19-inch Rack Or Inside The Cabinet
Cabling Mode: Top Inlet And Top Outlet Maintenance Mode: E Front Maintenance, Support Module Grade Change
Highlight:

Flexible Networking Telecom Power System

,

1U Subrack Telecom Power System

,

Multiple Communication Ports Telecom Power System

DC Power System 8kW Power System ET48150-M7E21

Introduction

1U Sub-rack power supply, 1U height compact design to meet critical application needs of fiber and microwave transmission, access device, switch. The system's maximum current is 150A, with AC/battery/load MCBs. The cables are front accessing with MCB and busbar.

Key Features

  • Standard 19-inch width which has the advantage of wide use
  • 1U height compact design, space and installation cost can be saved
  • The AC input ,load and battery wiring are at the front end, signal wiring are at the rear end.
  • Perfect battery management, prolongs the life of the battery well provide various communication ports, RS485, internet port, dry contacts, etc. which enables flexible networking and remote monitoring
  • Rectifier and controller are hot pluggable, easy and quick on-line maintenance
  • Wide input voltage range(85-290Vac) the power grid is adaptable
  • The rectifier slot is compatible with both the 3KW rectifier module and the 4KW rectifier module.

​

Application Scenarios

  • Wireless base station
  • Transmission network
  • Communication network of enterprises

​

ET48150-M7E21 Specifications

Type 3~8kW 1U Subrack
System Dimension 482.6(W)*350(D)*44(1U/H)
Weght
≤7kg (wihout rectifiers)
Cooling mode
 Naural cooling
hstallalion mode
Installed on 19-inch rack or inside the cabinet
Cabling mode Top inet and top outet
Maintenance mode
Front maintenance, support module grade change
Protection level
 IP20
AC
Distribution		 Input mode 220VAC single phase
Input capacily 1×63A/1P
Input frequency 45~66Hz, rated value:50Hz/60Hz
DC
Distribution		 Output voltage -43~58VDC, rabed value:-53.5VDC
Maximum capacily 8kW(4KW*2)
Battery breakers 1×125A
Load breakers BLVD:1×25A+1×32A
DC SPD 10kA/20KA,8/20μs
3KW
Rectifier		 Input voltage
85VAC～300VAC, rated 220VAC
Effciency >96%
Rated power
3000W(176~300VAC)
Working temperature 40℃~+75℃ (fully output below 50℃)
Dimension
106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight
≤2kg
Cooling mode Foced cooling
Power factor
≥0.99 @220Vac 20-100% Load
4KW
Rectifier
Input voltage
85VAC～300VAC, rated 220VAC
Efficiency
 >96.6%
Raled power
4000W(176~300VAC)
Working temperature 40℃~+75℃(fully output below 50℃)
Dimension 106.5mm(W)×285mm(D)×41.5mm(1U/H)
Weight
≤2.1kg
Cooling mode Foced cooling
Power factor
≥0.99 @220Vac 20-100% Load
Controller
Signal input
3 AI(2 Battery temp., 1 ambient temp.) ,8 DI ,2 RS485
Alarm output 8 dry contact
Communication port LAN,USB,RS485,SNMP
Display mode LCD
Environment Operating
temperature
-40℃~+70℃
Storage temperatue
-40℃~+70℃
Operating humidily
5%~95%(non-condensing)
Altitude
0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating
temperature decreases by 1℃ as the altitude increases by 200m.)



Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking 0

Telecom Power System 8kW 1U Subrack with Standard 19 Inch Width and Multiple Communication Ports for Flexible Networking 1
