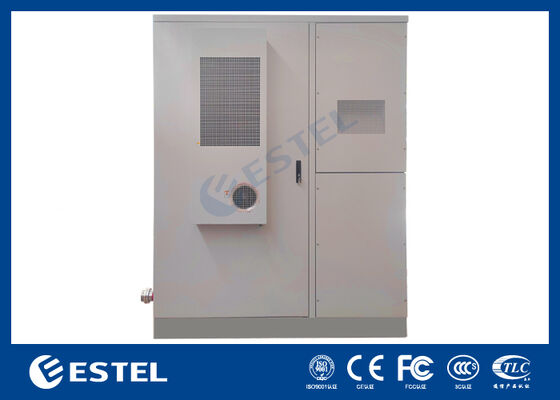

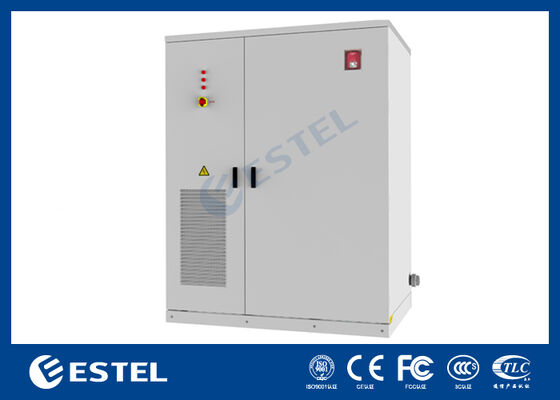

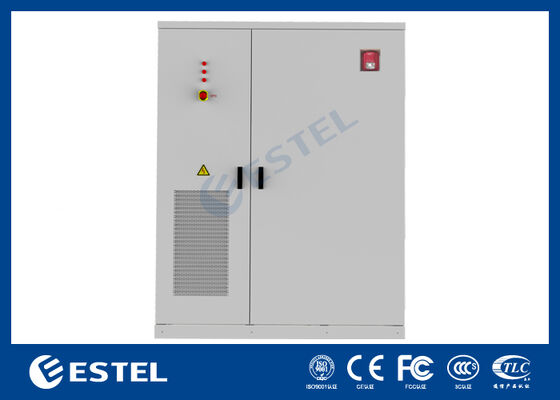

Telecom Power System Offering 100kW Rated Charge and Discharge Power with Advanced Control and Operation Software System
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC
Model Number:
EL215-APNRF
Trading Properties
Minimum Order Quantity:
1
Price:
358-2143 usd
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Supply Ability:
20,000 sets per month
Product Summary
Product Overview Product Introduction The company's 100kW/215kWh air-cooled energy storage cabinet adopts a 3.2V/280Ah lithium iron phosphate battery storage system. It has a wide range of application scenarios on the power grid side, and the system can realize peak shaving, valley filling, demand ...
Product Details
Highlight:
100kW Telecom Power System
,Advanced Control Telecom Power System
,100kW Telecom Power System
System Rated Capacity:
215kWh
Battery Cluster Configuration Method:
1P15S
Rated Charge/Discharge Power:
100kW
DC Voltage Range:
672-864V
Grid Side Voltage Range:
AC400V±10%
Inverter Operating Mode:
Three-phase Three-wire Grid- Connected Operation
Product Description
Product Overview
Product Introduction

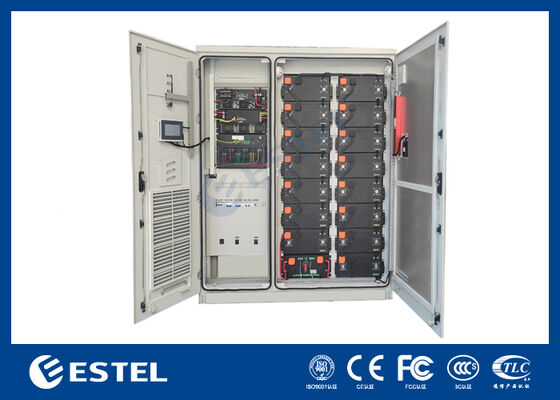

The company's 100kW/215kWh air-cooled energy storage cabinet adopts a 3.2V/280Ah lithium iron phosphate battery storage system. It has a wide
range of application scenarios on the power grid side, and the system can realize peak shaving, valley filling, demand management, emergency power supply and other functions. The system has the following advantages:
(1) Adopting an integrated design, single cluster management, solves the battery circulation problem and the bucket effect, greatly increases the
system safety and the discharge capacity throughout the life cycle;
(2) Highly integrated, further reduces system costs while simplifying the design;
(3) Realize diversified fire protection system: standard configuration composite gas detector, temperature-controlled aerosol and water fire extinguishing;
(4) Self-developed control and operation system: a set of software system
developed based on operation needs.
Main Technical Parameters
Table 1 Main Technical Parameters Table
| NO: | Item Description | Specification | Notes |
| 1 | System Rated Capacity | 215kWh | |
|
2 |
Battery Cluster Configuration Method |
1P15S |
|
| 3 |
Rated Charge/Discharge Power |
100kW |
Overload capacity: 110% |
| 4 | DC Voltage Range | 672-864V | |
| 5 | Grid Side Voltage Range | AC400V±10% | |
|
6 |
Inverter Operating Mode |
Three-phase three-wire grid- connected operation | |
| 7 | Operating Mode | Grid-connected operation | |
| 8 | System Efficiency | ≥85% |
AC side@25± 2℃ 0.5P |
| 9 | Power Factor | -1～1 | Adjustable |
| 10 | Rated Charge/Discharge | 0.5P | |
| 11 |
Storage Temperature Range |
-30℃~60℃ | |
|
12 |
Permitted Operating Temperature Range |
Discharge:-20~55℃ ; Charge:0~55℃ | |
|
13 |
Best Operating Temperature Range |
25±2℃ | |
| 14 | System Cycle Life | ≥6000 t i m e s |
@25±2℃ , 0.5P,EOL≥80% |
| 15 | Relative Humidity | RH ≤95% | No condensation |
|
16 |
Altitude |
≤3000m |
>3000m@90% >4000m@8 0%Reduce rated power |
| 17 | Protection Grade | IP54 | |
| 18 |
Cabinet Dimensions (W*H*D) |
Approx. 2100*2300*1200 ( mm) |
|
| 19 | Weight | Approx. 2850kg | |
| 20 | External Communication | Ethernet, wireless 4G | |
| 21 | Protection Grade | IP54 | |
| 22 | Anti-corrosion Grade | Not less than C3 | |
| 23 | System Design Life | ≥10 years | |
|
24 |
External Electrical Interface |
AC input: three-phase four wire+PE AC output: three-phase four Photovoltaic input: Two channels |
Note: Need to connect the N phase from the grid side to the N row in the cabinet to provide AC220V auxiliary power for the cabinet |
