Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers

Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers
Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers

Large Image :  Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7575200A-38U-18kW/300A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 715-4286 usd
Packaging Details: Wooden case; carton into pallet
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, MoneyGram, T/T
Supply Ability: 3,000 sets per month
Contact Now
Detailed Product Description
Demension: H750mm×W750mm×D2000mm Type: Telecom Power Cabinet
Warranty: 12 Month Material: Galvanized Steel
Insulation: With Heat Insulation Internal Space: 19 Inch, 38U
Door: With One Front Door Power Input: 220VAC
Highlight:

Outdoor Telecom Power System IP65

,

18kW Telecom Power Enclosure

,

300A Rectifiers Outdoor Power System



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers



1. Introduction of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers



ET7575200A-38U-18kW/300A is an outdoor telecom power cabinet specially designed for telecom site applications, it provides intelligent power management for telecom operators, providing stable power supply for critical telecom services, and saving client's operation cost.

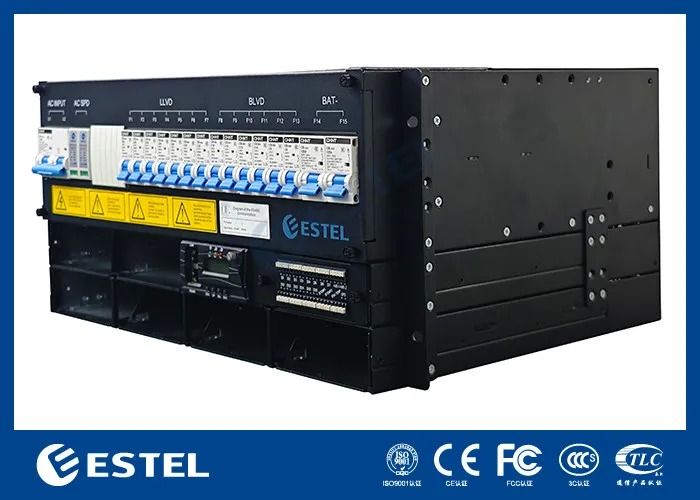

2. Parameters of 18kW Rectifier Power System



This 18kW 300A rectifier power system provides with 6 slots for rectifier modules, hot-swappable, customer can install 2 to 6 pieces 3kW rectifier modules based on total load power and future expansion plan. Customer also can choose 4kW modules for a more powerful power system, which can reach max. 24kW total capacity.



For a 18kW system with 6pcs 3kW modules, the system parameters are:



Item Parameter
Physical Size W=482.6mm, D=350.6mm, H=8U
Installation 19’’
Cable Routing Bottom in and top out
Maintenance Front maintenance, hot-swappable
IP Grade IP20
AC Power Distribution Input 1-Phase, 220VAC
Input MCB 2× 125A/3P
Frequency 45-65Hz, Rated value: 50Hz/60Hz
AC SPD 20kA/40kA, 8/20μs
AC Output /

DC Power

Distribution

 Output -43VDC to -58VDC, Rated output: -53.5VDC
Max. Capacity 18kW Rectifier System (6× 3kW);
Battery MCBs 2× 125A/1P
Load MCBs LLVD: 2× 125A/1P, 2× 63A/1P
BLVD: 4× 125A/1P, 4× 63A/1P
DC SPD 10kA/20kA, 8/20μs

Rectifier

Module

 Input Voltage 85VAC - 300VAC, Rated value: 220VAC
Efficiency ≥ 96% (96.6% for option)
Rated Output Power 3000W
Size W=106.5mm, D=286mm, H=1U
Cooling Forced air cooling
Power Factor ≥ 0.99 @220VAC, 20% - 100% load

Power

Monitoring

 Controller MC2900
Communication Ports LAN, USB, RS485, SNMP



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 18kW 300A Rectifiers 0



3. Parameters of 38U IP65 Outdoor Power Enclosure



abinet Model ET7575200A-38U
IP Grade IP65
External Dimensions 2000 (H) × 750 (W) × 750 (D) mm
Internal Space 19’’, 38U
Material Galvanized steel sheet
Insulation With
Door One front door
Lock Three-point lock
Hinge Inner-hinge
Coating Polyester powder coating
Color Customizable
Cable Routing At bottom of
Installation Floor mounted
Cooling Air Conditioner 1000W DC48V
Heat Exchange 80K/W, 100K/W, etc.
Fan System Emergency fans system with a temperature controller
Telecom Power System Power Sub-rack 3U~10U
Rectifier Modules 3kW or 4kW
Solar Modules High-efficiency rectifier models for selection
Controller MC2900
Power Distribution Box Optional
PDU Optional



4. Advantages of Outdoor Telecom Power System



  • Modular structure
  • Cost-effective
  • Customizable
  • Fast deployment
  • Easy installation
  • Intelligent management
