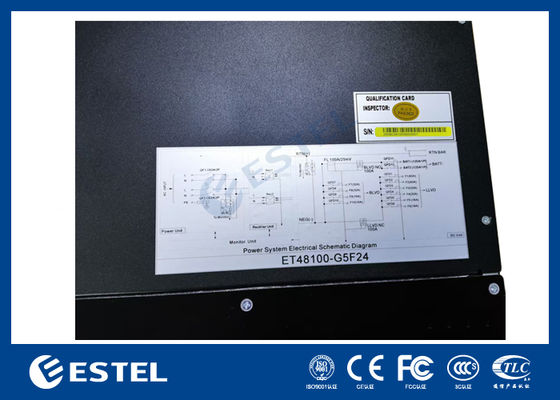

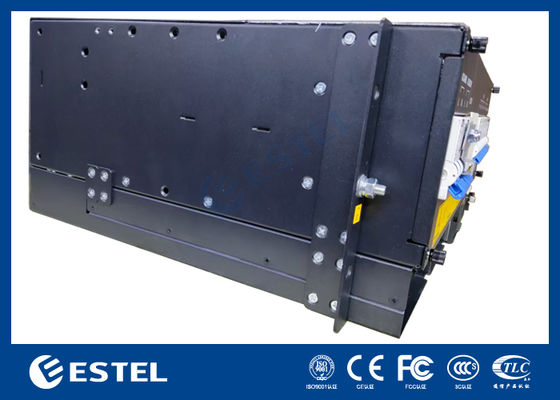

3~6kW Power System ET48100-G5F24

Large Image : 3~6kW Power System ET48100-G5F24

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC
Model Number:	ET48100-G5F24

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	358-2143 usd
Packaging Details:	carton/wooden case
Delivery Time:	7-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20,000 sets per month

Contact Now

Detailed Product Description

Dimension:	482.0(W)350.6(D)4U(H)	Weight:	≤18kg (without Rectifiers)
Cooling Mode:	Natural Cooling	Installation Mode:	Installed On 19-inch Rack Or Inside The Cabinet
Cabling Mode:	Top Inlet And Top Outlet	Maintenance Mode F:	Front Maintenance, Support Module Grade Change
Highlight:	3~6kW telecom power system , ET48100-G5F24 power system , telecom power system with warranty

Introduction

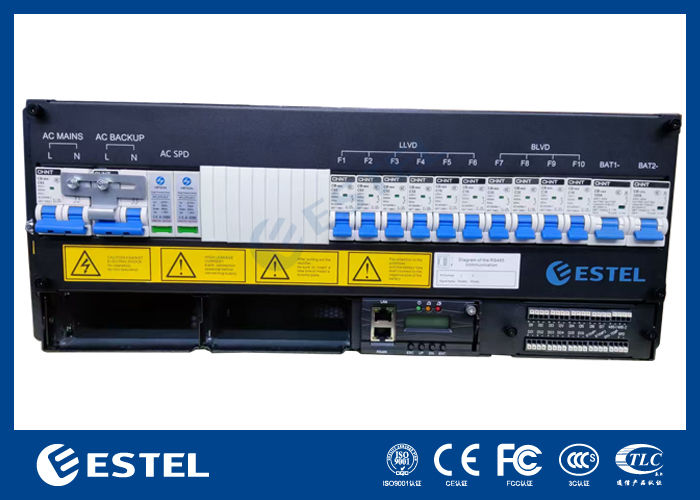

4U Sub-rack power supply, 4U height compact design to meet critical application needs of fiber and microwave transmission, access device, switch. The system's maximum current is 100A, with AC/Battery/Load MCBs. The cables are front accessing with MCB and busbar.

Key Features

Standard 19-inch width which has the advantage of wide use
4U height compact design, space and installation cost can be saved
Front operation and cable accessing, good-looking and safe maintenance
Perfect battery management, prolongs the life of the battery well provide various communication ports, RS485, internet port, dry contacts, etc.which enables flexible networking and remote monitoring
Rectifier and controller are hot pluggable, easy and quick on-line maintenance
Wide input voltage range(85-300Vac) the power grid is adaptable

Application Scenarios

Wireless base station
Transmission network
Communication network of enterprises

ET48100-G5F24 Specifications

Type		3~6kW 4U Subrack
System	Dimension	482.0(W)350.6(D)4U(H)
	Weight	≤18kg (without rectifiers)
	Cooling mode	Natural cooling
	Installation mode	Installed on 19-inch rack or inside the cabinet
	Cabling mode	Top inlet and top outlet
	Maintenance mode	Front maintenance, support module grade change
	Protection level	IP20
AC Distribution	Input mode	220VAC single phase
	Input capacity	2×63A/2P
	Input frequency	45~65Hz, rated value: 50Hz/60Hz
	AC SPD	20kA/40kA, 8/20μs
DC Distribution	Output voltage	-43~-58VDC, rated value: -53.5VDC
	Maximum capacity	6kW(3KW*2)
	Battery breakers	2× 125A/1P
	Load breakers	LLVD:2×63A/1P+2×32A/1P+2× 16A/1P BLVD:2×32A/1P+2× 16A/1P
	DC SPD	10kA/20KA, 8/20μs
Rectifier	Input voltage	85VAC～300VAC, rated 220VAC
	Efficiency	>96%
	Rated power	3000W(176~300VAC)
	Working temperature	-40℃~+75℃(fully output below 50℃)
	Dimension	106.5mm(W)×286mm(D)×41.5mm(1U/H)
	Weight	≤2kg
	Cooling mode	Forced cooling
	Power factor	≥0.99 @220Vac 20-100% Load
Controller	Signal input	3 AI(2 Battery temp., 1 ambient temp.) ,7 DI
	Alarm output	6 dry contact
	Communication port	LAN, RS485, SNMP
	Display mode	LCD
Environment	Operating temperature	-40℃~+70℃
	Storage temperature	-40℃~+70℃
	Operating humidity	5%~95%(non-condensing)
	Altitude	0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)
