Ground-mounted Steel Structure for Solar Panels

Large Image : Ground-mounted Steel Structure for Solar Panels

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC
Model Number:	Q235B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	358-2143 usd
Packaging Details:	carton/wooden case
Delivery Time:	7-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20,000 sets per month

Contact Now

Detailed Product Description

Installation Location:	Single Pile: Flat Ground, Irregular Terrain	Profile Material:	Q235B(hot-dipgalvanized)/S350GDzinc-aluminum-magnesium
Accessory Material:	Q235B(hot-dip Galvanized)/S350GD Zinc-aluminum-magnesium	Fastener Material:	Grade 8.8 (hot-dip Galvanized)/ SUS304 Stainless Steel
Panel Layout:	According To Design Requirements	Wind Load:	60m/s
Highlight:	ground-mounted solar panel structure , steel solar panel mounting system , solar panel steel support frame

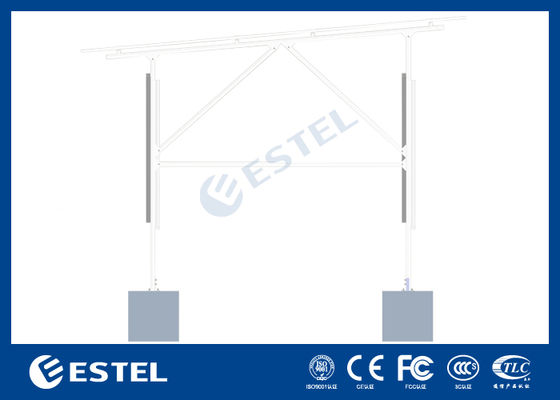

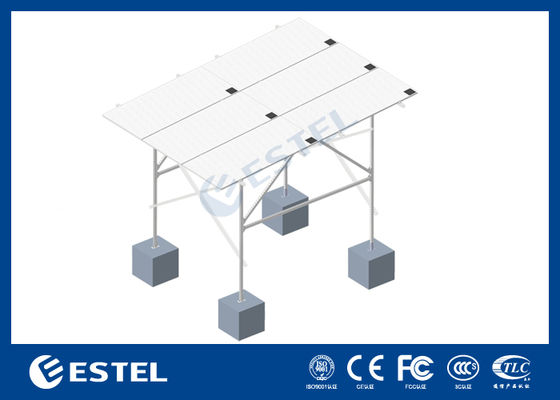

Ground_-mounted Steel Structure for Solar Panels

Introduction

The C-channel steel structure for solar panels is primarily suitable for ground-mounted solar

power stations, communication base stations with hybrid power system,and other similar

applications. This system offers strong wind resistance, cost-effectiveness,and can meet most

customer requirements.

Depending on different conditions, various solutions are available. The system is designed and

rigorously tested based on structural mechanics.The materials used are zinc-aluminum-

magnesium and hot-dip galvanized steel, both of which offer excellent corrosion resistance and

can last at least 25 years in outdoor environments.

Features

Optional Materials	Zinc-aluminum-magnesium and hot-dip galvanized steel.
Sturdy Structure	Strong resistance to corrosion.
Compatibility	Compatible with both cement foundations and spiral ground piles, optimized for different terrains,and suitable foruneven surfaces.
Minimal Installation Parts	Pre-assembled components,saving construction time.
Customizable	Adjustable tiltangle and ground clearance based on actual needs.

Technical Parameters

Installalion Location	Single pile:Flat ground,irregularterrain Double vertical posts:Flat ground,areas with large external loads
Profile Material	Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Accessory Material	Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Fastener Material	Grade 8.8(hot-dip galvanized)/SUS304 stainless steel

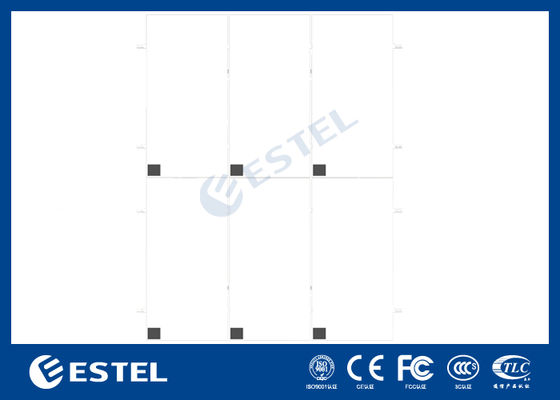

Panel Layout	According to design requirements
Wind Load	60m/s
Snow Load	3.6kN/m²
Applicable Modules	Framed/framelessmodules
Module Layout	Vertical/Horizontal
Installation Angle	0-45°
Warranty	10years
Service Life	25 years

Ground-mounted Steel Structure for Solar Panels 0
