Outdoor Telecom Cabinet With 9kW Telecom Power System and SNMP Monitoring Functions

Basic Properties
Place of Origin: China
Brand Name: ESTEL
Certification: CE UL FCC
Model Number: ET6085217-EQ-42U-9kW
Trading Properties
Minimum Order Quantity: 1 Set
Price: 715-4286 usd
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 3000 sets per month
Tags

Telecommunication Power Supply System

Hybrid Energy Telecom Power System

Telecommunication Power System
Product Summary
Outdoor Telecom Cabinet With 9kW Telecom Power System and SNMP Monitoring Functions 1. Introduction ET6085217-EQ-42U-9kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT ...

Product Details

Highlight:

Outdoor Telecom Cabinet with SNMP Monitoring

,

9kW Telecom Power System Cabinet

,

Telecom Power System with Monitoring
Cabinet Dimension: WxDxH=600x850x2170mm (Can Be Customized)
Internal Space: 19'' Standard Rack, 42U Space
Material: Galvanized Sheet
Power Capacity: 9kW
Rectifier Module: 3pcs 3kW
Cooling Method: Air Conditioner Or Forced Fan System
IP Grade: IP55
Packaging: Wooden Case
Product Description



Outdoor Telecom Cabinet With 9kW Telecom Power System and SNMP Monitoring Functions



1. Introduction

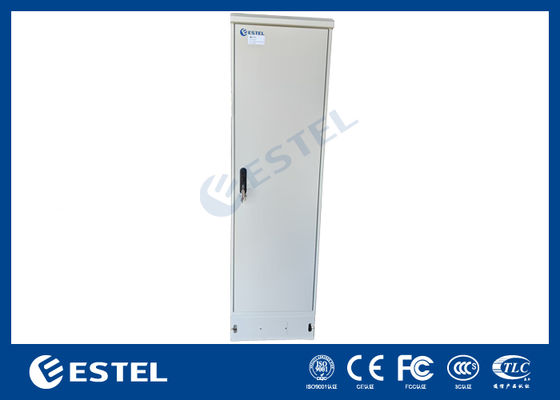

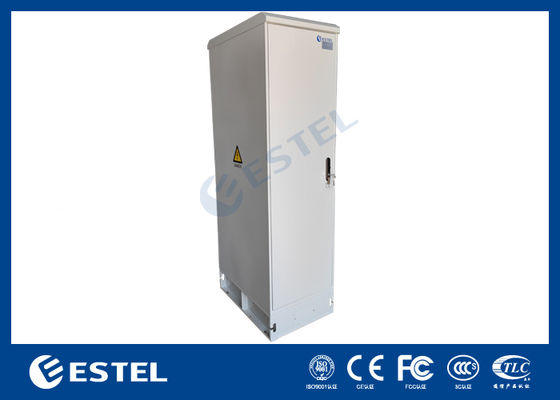

ET6085217-EQ-42U-9kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.



2. Applications



This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, communication base stations, outdoor air detection stations, solar control cabinets,etc.

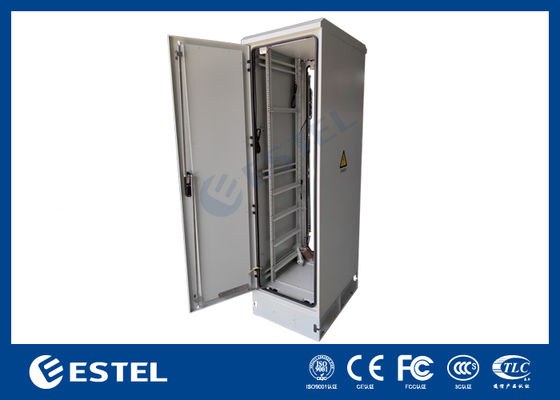

3. Cabinet Features



  • High protection grade: IP55
  • Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
  • Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
  • Support remote management, improve security and minimize customer’s operation cost

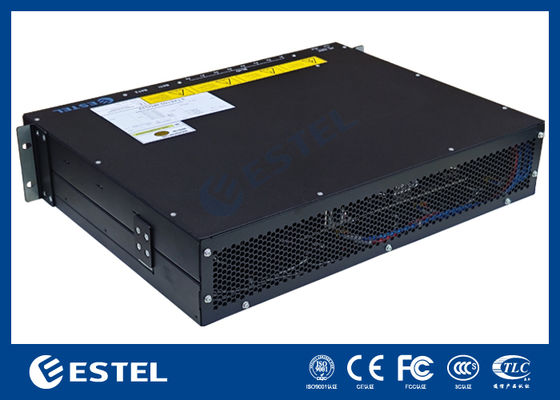

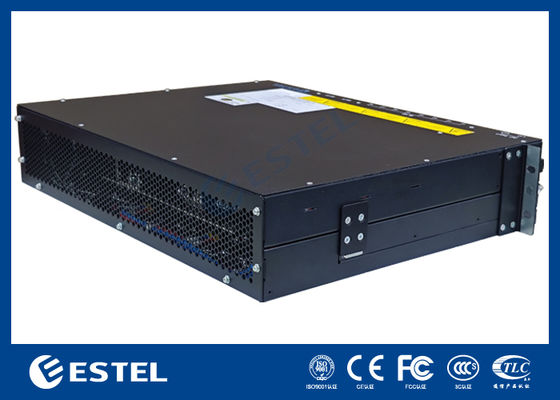

3. Rectifier Power System Features



  • Power system capacity: 9kW, 3 rectifier modules + 1 monitoring module;
  • Power system height: 2 rack units;
  • Rectifier module specification: 3kW
  • Monitoring module: support SNMP;
  • Power distribution:

              - LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;

              - BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;



4. Cooling System Features



Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.



5. Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET6085217-EQ-42U-9kW
Protection Level IP55
External Dimension H 2170 mm×W 600 mm×D 850 m (Can be customized)
Internal Dimension 19 inch 42U
Material Galvanized steel, 1.2 mm thickness, single wall.
Thickness of bearing parts: 2.0 mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door and one rear door
Cooling System Air conditioner 1000W (Optional)
Fan 2pcs fan with one fan controller
Input Voltage AC220V 60Hz
Door sensor Door sensor
Temper sensor Temper sensor
Rectifier system Rectifier system 9kW, 19" rack mount, 2U Rectifier System:
3pcs 3kW rectifier modules
1x Monitoring Controller Module, SNMP communication port
Power distribution:
LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P
BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P
LED Lamp LED lamp for illumination with switch, Voltage: AC220V, 60Hz.
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
