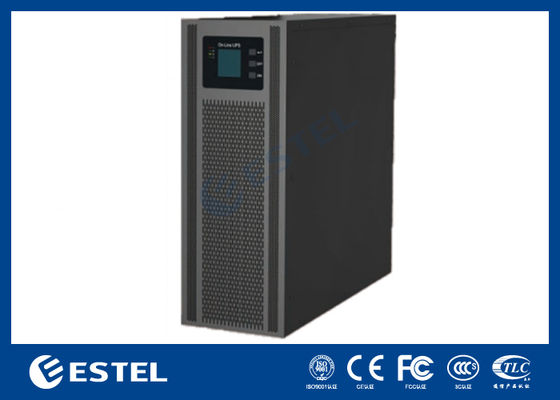

60-80KVA UPS The Ideal Telecom Power System for Computer Equipment and Communication Systems

60-80KVA UPS The Ideal Telecom Power System for Computer Equipment and Communication Systems
60-80KVA UPS The Ideal Telecom Power System for Computer Equipment and Communication Systems

Large Image :  60-80KVA UPS The Ideal Telecom Power System for Computer Equipment and Communication Systems

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: 60-80KVA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 358-2143 usd
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Detailed Product Description
Input Mode: 3-Phase,4-Wire+GND Rated Voltage: 380/400/415VAC
Voltage Range: 208-478VAC Frequency Range: 5-55Hz@50Hz;54-66Hz @60Hz(Self-adaptive)
Power Factor: ≥0.99 Input Current Harmonic: ≤3%(100% Non-linearload)
Highlight:

60-80KVA UPS telecom power system

,

UPS for computer equipment

,

telecom power system for communication systems

Uninterruptible Power Supply(UPS)

Product Overview

ESTEL 60-80KVA UPS series isdesigned as a 3-Phase input and 3-Phase output system,
it covers power capacities ranging from 60kVA to 80kVA, offering users flexible
configuration options. It can effectively resolve almost all power issues, such as power
outage, high/low voltage fluctuation, voltage sag, damped oscillation, high-voltage pulse,
voltage instabilty, power surge, harmonic distortion, noise interference,frequency
variations, etc. It is an ideal solution for diverse environments of computer equipment,
communication systems, automated industrial equipment, etc.

Produet Features
  • DSP digital control, ensures a more stable and reliable control system;
  • Online dual-switching design, adopts input Power Factor Correction(PFC) technology, input power factor up to 0.99;
  • Output power factor up to 0.9(optional for 0.8), with higher load capacity while reducing user investment cost;
  • Intelligent charging management, can choose 32-40pcs batteries based on needs;.
  • Rich accessory options: USB or RS485 communication port, SNMP card(optional), parallel connection board (optional);
  • ECO operation mode, higher eficiency with less energy consumption, saving operation cost;
  • Shared battery packin parallel connection mode.
UPS Capacity 60KL 80KL
Rated Output Capacity 60kVA 80kVA







AC Input

Input Mode 3-Phase,4-Wire+GND
Rated Voltage 380/400/415VAC
Voltage Range 208-478VAC
Frequency Range 45-55Hz @50Hz;54-66Hz @60Hz(Self-adaptive)
Power Factor ≥0.99
Input curent harmonic ≤3%(100%non-linear load)







AC Output

Output Mode 3-Phase,4-Wire+GND
Rated Voltage 380/400/415VAC
Power Factor 0.9or0.8
Voltage Accuracy ±1%
Output Frequency
Synchronize with input; When mains frequency out of+10%(can be set to +1%, ±2%,±4%,and±5%) of maximum value, output frequency is 50Hz/60Hz±0.2%;
Peak Load Ratio Max.3:1
Output THD ≤2%@100%linear load;≤5%@100%non-linear load;
Efficiency Normal Mode ≥94.5%
Battery Battery Voltage ±192VDC to±240VDC(Optional)
Charging Current 20A max
Switch Time

Switch from mains mode to bypass mode:0ms (tracking);

Switch from mains mode to battery mode:0ms;



Protection

Overload Capability
Load ≤110%,60min;≤125%,maintain 10min;≤150%, maintain 1min;≥150%,switch to bypass immediately;
Over Temperature Protection

Normal mode:Switch to bypass mode;

Battery mode:Turn offoutput immediately;

Emergency Power Off(EPO) Turn off output immediately
Communication

USB,RS485,Dry contacts,Parallel connection(optional),

SNMP card(optional),Relay card(optional)



Working

Environment

Working Temperature 0℃ to 40℃
Relative Humidity 0-95%(Non condensation)
Storage Temperature -25℃ to 55℃
Elevation <1500m,when used in area higherthan 1500m,derate for use in acording t GB/T3859.2
Physical
Feature
Size(D×W×H)(mm) 700×300×960
Weight (kg) 85 86
