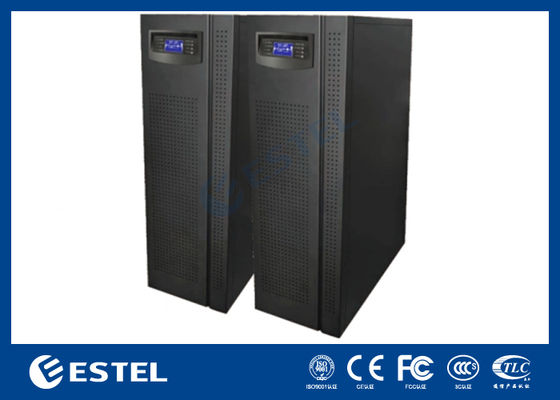

10-40kVA UPS for High Reliability Telecom Power System with Advanced DSP Technology and EPO Function

10-40kVA UPS for High Reliability Telecom Power System with Advanced DSP Technology and EPO Function
10-40kVA UPS for High Reliability Telecom Power System with Advanced DSP Technology and EPO Function

Large Image :  10-40kVA UPS for High Reliability Telecom Power System with Advanced DSP Technology and EPO Function

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: 10-40kVA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 358-2143 usd
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Contact Now
Detailed Product Description
Input Mode: 3-Phase,4-Wire+GND Rated Voltage: 380/400/415VAC
Frequency Range: 50Hz System:46-54Hz;60Hz System:56-64Hz Power Factor: 0.99@100%load
Input Current Harmonic: ≤3%(100%non-linear Load) Output Mode: 3-Phase,4-Wire+GND
Highlight:

10-40kVA telecom UPS system

,

high reliability UPS with EPO

,

telecom power system with DSP

Uninterruptible Power Supply(UPS)



Product Overview



ESTEL 10-40kVA UPS series adopts advanced DSP digital control technology,it provides strong adaptability and supports flexible configuration,which fully meets the high reliability requirements of computer room servers and precision equipment.



Product Features

  • Real high-frequency online dual-switching;
  • High-performance by utilizing DSPtechnology;
  • Output power factor up to 0.8;
  • Emergency Power Off (EPO) function;
  • ECO mode for energy-saving;
  • N+X parallel for redundancy;
  • Compatible with 16-20pcs batteries;
  • Charging current is adjustable (0.5-6A) on LCD panel and software;
  • Wide voltage range(110-300VAC) for single-phase mains input;
  • Power factor correction for all inputs of three-phase;
  • Three-stage expandable charging design ensures superior battery performance;
  • Widely used in finance, telecommunications, government, transportation, manufacturing, and education industries.



UPS Capacity 10KL 15KL 20KL 30KL 40KL
Rated Output Capacity 10kVA/8kW 15kVA/12kW 20kVA/16kW 30kVA/24kW 40kVA/32kW







ACInput

 Input Mode 3-Phase,4-Wire+GND
Rated Voltage 380/400/415VAC
Voltage Range
Frequency Range 50Hz system:46-54Hz;60Hz system:56-64Hz
Power Factor 0.99@100%load
Input current harmonic ≤3%(100%non-linear load)







AC Output

 Output Mode 3-Phase,4-Wire+GND
Rated Voltage 380/400/415VAC
Power Factor 0.99@100%load
Voltage Accuracy ±1%
Output Frequency Synchronize with input;Battery mode:50Hz±0.1Hz or 60Hz±0.1Hz;
Peak Load Ratio Max.3:1
Output THD ≤2%@100%linear load;≤5%@100%non-linear load;
Efficiency AC Mode >89% >89% >89% >90% >90%
Battery Mode >86% >88% >88% >89% >89%
Battery Battery Voltage ±192VDC/±216VDC/±240VDC(Optional)
Charging Current 4A 4A 4A 12A 12A
Switch Time
Switch from mains mode to bypass mode:0ms (tracking);
Switch from mains mode to battery mode: 0ms;



Protection

 albi AC Mode 100%-110%:30sec;110%-30%:10sec;>130%:1sec;
Battery Mode 100%-110%:30sec;110%-130%:10sec;>130%:1sec
Emergency Power Off(EPO) Turn off output immediately
Communication USB,RS232,SNMP card(Optional)



Working

Environment

 Working Temperature 0°C to 40°C
Relative Humidity 0-95%(Non condensation)
Storage Temperature -25°C to 55°C
Elevation <1000m

Physical

Feature

 Size(D×W×H)(mm) 570×250×575 570×250×575 570×250×575 780×250×826 780×250×826
Weight(kg) 44 45 63 71 75
