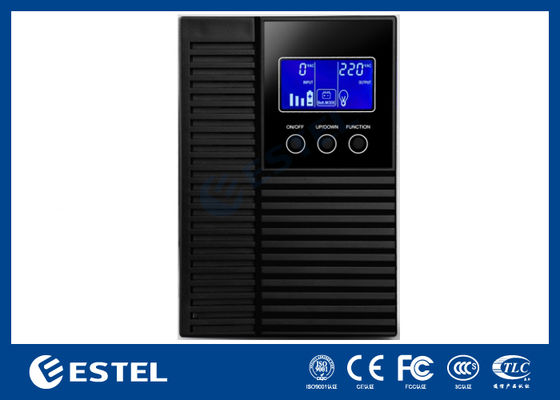

Line Interactive UPS Input Voltage 140-275Vac 40Hz-75Hz
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC
Model Number:
MS1000-3000VA
Trading Properties
Minimum Order Quantity:
1
Price:
358-2143 usd
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Supply Ability:
20,000 sets per month
Product Summary
Line Interactive UPS MS1000-3000VA True double-conversion Microprocessor control optimizes reliability Output Sine Wave Output power factor0.8 Wide input voltage(140-275Vac) Converter mode available Generator compatible LCD display Short circuit,Overload,Overcharge and overdischarge protection ...
Product Details
Highlight:
Line Interactive UPS with wide input voltage
,Telecom UPS 140-275Vac input
,Line Interactive UPS 40Hz-75Hz frequency
Input Voltage:
220Vac/230Vac
Input Voltage Range:
140-275Vac
Input Frequency Range:
40Hz-75Hz(auto Sensing)
Output Voltage Regulation:
220Vac/230Vac
Output Frequency Range:
50Hz Or 60Hz
Output Transfer Time:
Typical 2-8ms, 13ms Max
Output Waveform (AC Mode):
Sine Wave
Output Waveform (Batt Mode):
Sine Wave
Product Description
Line Interactive UPS MS1000-3000VA
True double-conversion
Microprocessor control optimizes reliability
Output Sine Wave
Output power factor0.8
Wide input voltage(140-275Vac)
Converter mode available
Generator compatible
LCD display
Short circuit,Overload,Overcharge and overdischarge protection
Specification
| MODEL | MS1000 | MS2000 | MS3000 | ||
| CAPACITY | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | ||
| INPUT | Voltage | 220Vac/230Vac | |||
| Voltage Range | 140-275Vac | ||||
| Frequency Range | 40 Hz~75 Hz(auto sensing) | ||||
| OUTPUT | Voltage Regulation(Batt.Mode) | 220Vac/230Vac±10% | |||
| Frequency Range(Batt.Mode) | 50Hz±1Hz or 60Hz±1Hz(auto sensing) | ||||
| Transfer Time | Typical 2-8ms,13ms max | ||||
| Waveform(AC.Mode) | Sine Wave | ||||
| Waveform(Batt.Mode) | Sine Wave | ||||
BATTERY |
Battery Voltage | 24V | 24V | 48V | |
| Battery number | 7AH*2 | 9AH*2 | 9AH*4 | ||
| Maximum Charge Current | 1.3A | 1.3A | 1.3A | ||
| PROTECTION | Full Protection | short circuit,Overload,Overcharge and overdischarge protection | |||
| ALARM | Battery mode | Sounding every 30 seconds | |||
| Low Battery | Sounding 0.5 second | ||||
| Overload | Sounding every 0.5 seconds | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | Approx.Dimension DXWXH(mm) |
368x144.2×211 | 455x190x330 | ||
| Approx.Net Weight(kgs) | 12.1 | 14 | |||
| OPERATING ENVIRONMENT |
Humidity | 0-90%RH @0-40℃(non-condensing) | |||
| Noise Level | Less than 40dB(1m spacing) | Less than 45dB (1m spacing) |
|||
| MANAGEMENT | Communication port | RS232 | |||
| *Product specifications are subject to change without notice. | |||||
