AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc

AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc
AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc

Large Image :  AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: LAK340-220D28-9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 358-2143 usd
Packaging Details: wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Contact Now
Detailed Product Description
Operating Voltage Range: 165-300Vac Input Frequency Range: 47-63Hz
Power Factor: 0.98 Output Voltage Vo1: 27.5-28.5Vdc
Output Voltage Vo2: 8.5-9.5Vdc Output Current 1 Vo1: 10A
Output Current 1 Vo2: 8A Output Current 2 Vo1: 12.5A
Highlight:

AC-DC power supply 28Vdc output

,

telecom power system 300Vac input

,

dual output power supply 9Vdc

LAK340-220D28-9



Characteristic



This product is designed to comply with the RoHS2.0 directive(EU Direcive 2011/65/EU and its amending direcives (EU) 2015/863)
Typical efficiency:90%
Input over-voltage and under-voltage protection
Output overcurrent protection
Output overvoltage protection
Output short circuit protection
Meet GB4943



Application



Industrial control equipment
Telecommunications equipment

Features

LAK340-220D28-9 is an AC-DC power supply of our company. Its input voltage is 165Vac~300Vac. It converts 220Vac into 28V.
9V, maximum output power 352W

Key performance indicators

Input indicators



Table 1 Input indicators

Parameter Unit Test Descniption Minimum Typical Maximum
Operating voltage range Vac   165 220 300
Input frequency range Hz   47 50 63
Power factor     0.98



Output indicators
Table 2 Output indicators
Parameter Unit Test Description Minmum Typical Maximum
Output voltage Vo1 Vdc   27.5 28 28.5
Vo2 Vdc   8.5 9 9.5
Output current 1 Vo1 A   0   10
Vo2 A   0   8
Output current 2 Vo1 A   0   12.5
Vo2 A   0
Voltage regulation accuracy 1 Vo1 %In       ±1.5
Vo2 %In       ±3

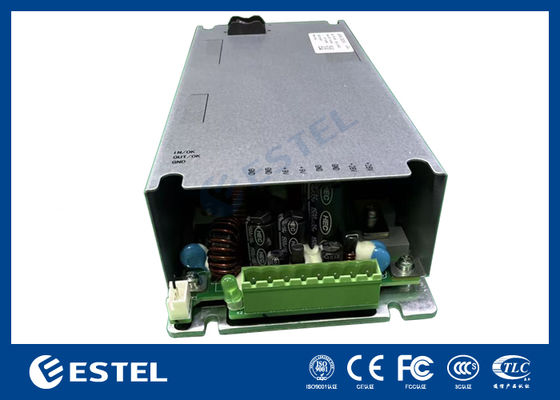

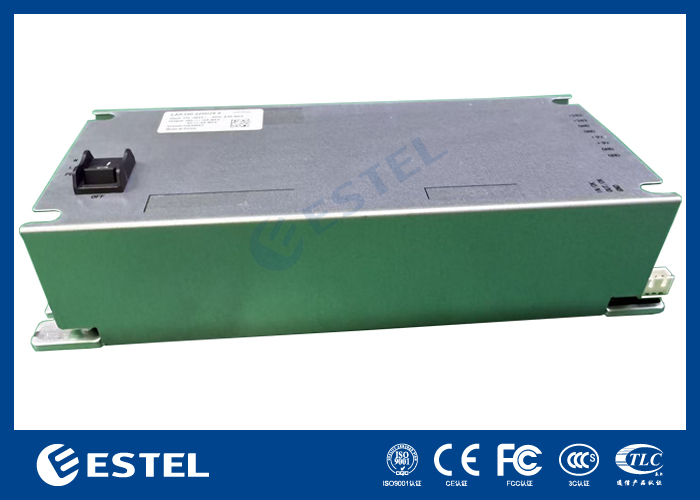

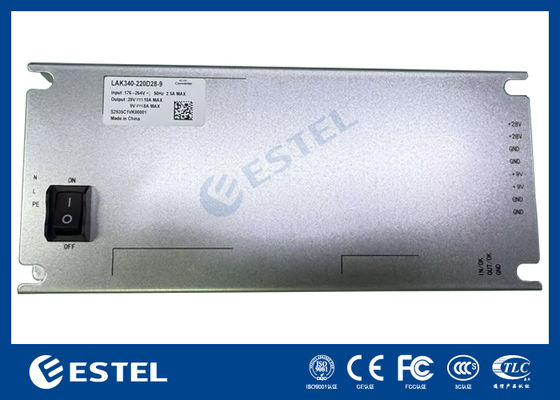

Product Appearance

AC-DC Power Supply Input 165Vac-300Vac Output 28Vdc 9Vdc 0
