Power Rectifier 32U Outdoor Telecom Cabinet with 18kW Telecom Power System and Environment Monitoring Unit

Power Rectifier 32U Outdoor Telecom Cabinet with 18kW Telecom Power System and Environment Monitoring Unit

1. Introduction

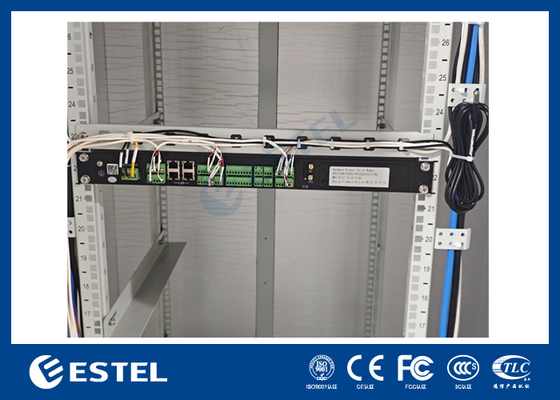

ET7575200A-18kW is an 32U outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply. It is equipped with a environment monitoring unit, which provides real-time monitoring of the power parameters and environmental parameters, and provide users with alarm and remote notifications.

2. Applications

This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

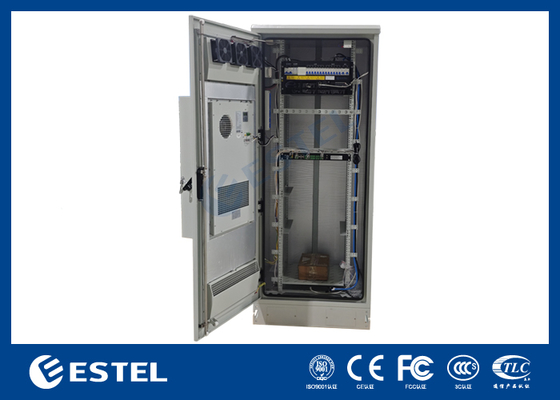

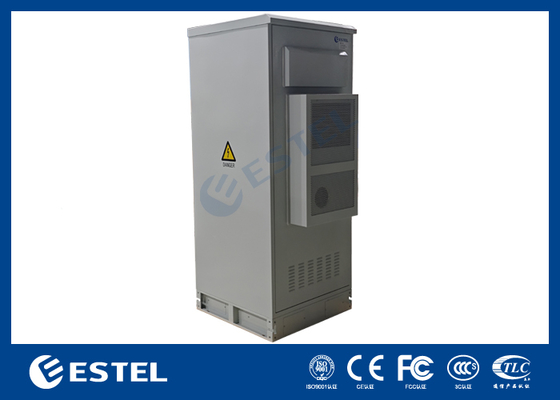

3. Cabinet Features

• High protection grade: IP55
• Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
• Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
• Support remote management, improve security and minimize customer’s operation cost

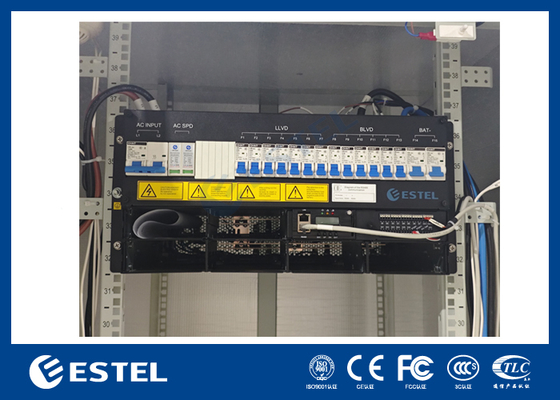

4. Rectifier Power System Features

• Power system capacity: 18kW, 6 rectifier modules + 1 monitoring module;
• Power system height: 5 rack units;
• Rectifier module specification: 3kW;
• Monitoring module: support SNMP;

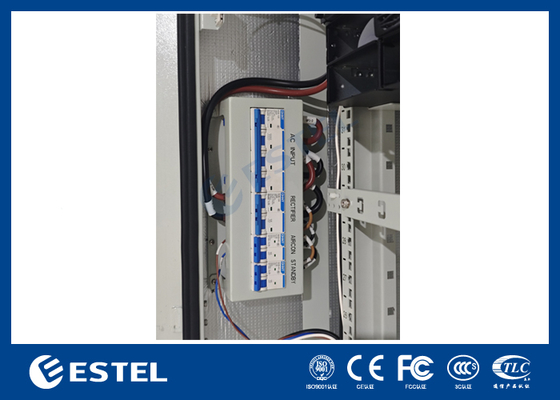

• Power distribution:

              - LVD1: 2x80A, 2x63A;

              - LVD2: 1x63A, 4x32A, 2x16A;

5. Cooling System Features

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.

6. Technical Parameters
