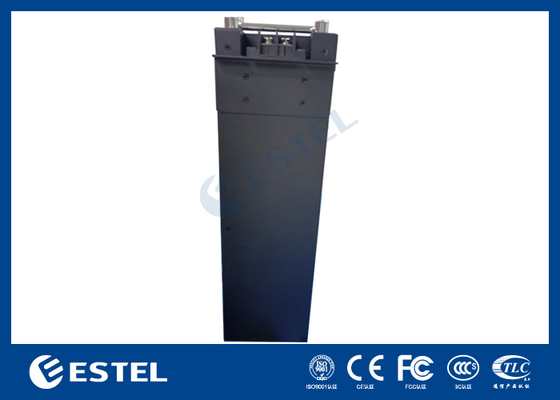

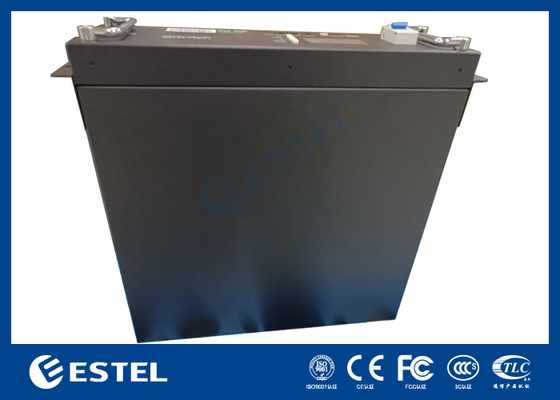

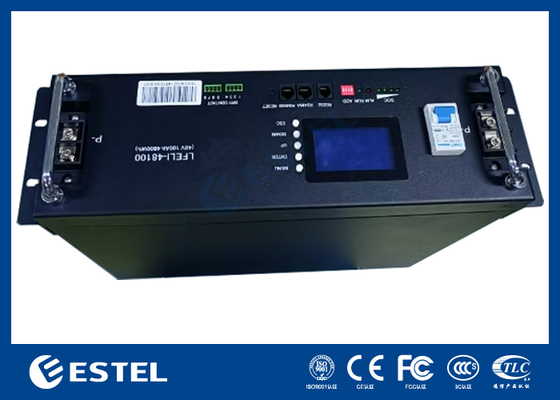

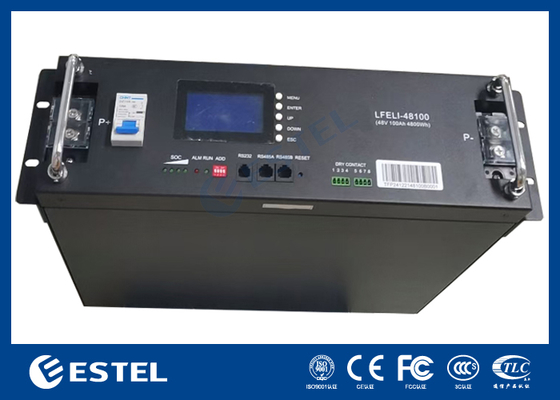

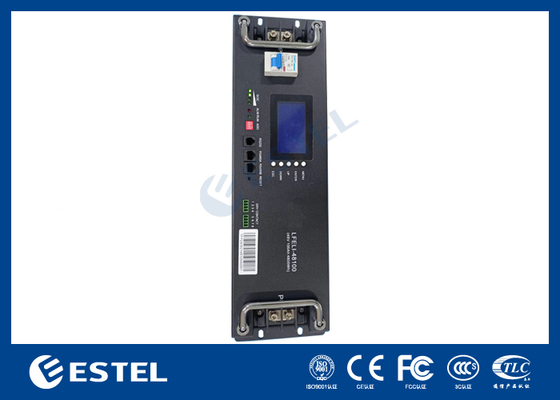

ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications

ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications
ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications

Large Image :  ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: LFELI 48100
Payment & Shipping Terms:
Minimum Order Quantity: 100000
Price: 30-120
Packaging Details: carton packing
Payment Terms: T/T
Supply Ability: 100000
Contact Now
Detailed Product Description
Model: LFELI-48100 Nominal Voltage: 48V
Rated Capacity: 100Ah (5HR) Charge Voltage Limit: 54V
Discharge Cut-off Voltage: 40.5V Peak Current: 100A Continuous
Dimensions (W×D×H): 442×450×132mm Weight: 40kg
Enclosure Rating: IP30 Terminal Type: M6





ESTEL LFELI 48100 48V 100Ah Lithium Iron Phosphate Battery High Efficiency Energy Storage Solution for Telecom and Industrial Applications





Overview

The ESTEL LFELI-48100 is a premium 48V 100Ah lithium iron phosphate (LiFePO4) battery designed for high-performance energy storage applications. With its advanced battery management system (BMS) and exceptional 6000-cycle lifespan, this battery delivers reliable power for critical infrastructure. The compact 19-inch rack-mountable design combines with superior thermal stability and safety features to provide an optimal solution for telecom, industrial, and renewable energy systems.





Key Features

  • Ultra-Safe Technology: Lithium iron phosphate chemistry with built-in BMS protection
  • Long Service Life: 6000 cycles at 80% DoD with 20-year design lifespan
  • High Energy Density: 4800Wh capacity in compact footprint (442×450×132mm)
  • Wide Temperature Range: Operates from -10°C to +55°C (discharge)
  • Scalable Configuration: Supports up to 15 units in parallel
  • Real-Time Monitoring: Integrated LCD display for status tracking





Technical Specifications

Parameter Value
Model LFELI-48100
Nominal Voltage 48V
Rated Capacity 100Ah (5HR)
Energy 4800Wh
Charge Voltage Limit 54V
Discharge Cut-off Voltage 40.5V
Peak Current 100A continuous
Cycle Life 6000 cycles @ 80% DoD
Dimensions (WxDxH) 442x450x132mm
Weight 40kg
Enclosure Rating IP30
Terminal Type M6
Parallel Capability Up to 15 units



Operating Temperatures

  • Charge: 0°C to +45°C (+32°F to +113°F)
  • Discharge: -10°C to +55°C (+14°F to +131°F)
  • Storage: -20°C to +60°C (-4°F to +140°F)



Performance Data (25°C)

Constant Current Discharge

End Voltage 1h 2h 3h 5h 10h
40.5V 100A 50A 33.3A 20A 10A



Constant Power Discharge



End Voltage 1h 2h 3h 5h 10h
40.5V 4800W 2400W 1600W 960W 480W



Applications

  • Telecommunications: Base stations, transmission equipment
  • Industrial Power: UPS systems, automation equipment
  • Renewable Energy: Solar/wind energy storage
  • Mission Critical: Medical devices, emergency backup
  • Mobile Systems: Military field equipment, marine applications





Certifications & Compliance

  • CE, RoHS, UN38.3 certified
  • Compliant with IEC 62619, UL 1973 standards
  • SPCC steel enclosure for durability





Why Choose ESTEL LFELI-48100?

  1. Maintenance-Free Operation: No periodic watering required
  2. Deep Discharge Capability: 100% DoD without damage
  3. Fast Charging: Accepts 100A continuous charge current
  4. Eco-Friendly: Contains no heavy metals (lead/cadmium free)
