Galvanized Sheet Outdoor Telecom Cabinet With 9kW 150A Telecom Power System for Telecom Equipment DC Power Supply Rectifiers
Basic Properties
Place of Origin:
China
Brand Name:
ESTEL
Certification:
CE UL FCC
Model Number:
ET6060120A-9kW-150A
Trading Properties
Minimum Order Quantity:
1 Set
Price:
715-4286 usd
Payment Terms:
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:
3000 sets per month
Product Summary
Outdoor Telecom Cabinet With 9kW 150A Telecom Power System for Telecom Equipment DC Power Supply Rectifiers 1. Introduction ET6060120A-9kW-150A is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply ...
Product Details
Highlight:
DC Power Supply Rectifiers Telecom Cabinet
,Outdoor Cabinet For Telecom Equipment
,Telecom Power System Outdoor Cabinet
Cabinet Dimension:
WxDxH=600x600x1200mm (Can Be Customized)
Internal Space:
19'' Standard Rack, 20U Space
Material:
Galvanized Sheet
Power Capacity:
9kW, 150A
Rectifier Module:
3x 50A
Cooling Method:
Air Conditioner Or Forced Fan System
IP Grade:
IP55
Packaging:
Wooden Case
Product Description
Outdoor Telecom Cabinet With 9kW 150A Telecom Power System for Telecom Equipment DC Power Supply Rectifiers
1. Introduction

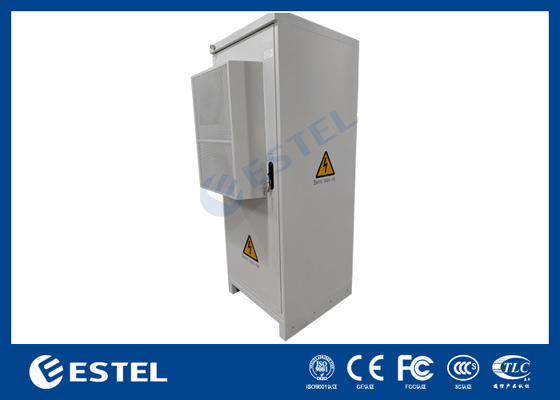

ET6060120A-9kW-150A is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor
telecommunication equipment which need DC power supply.
2. Applications

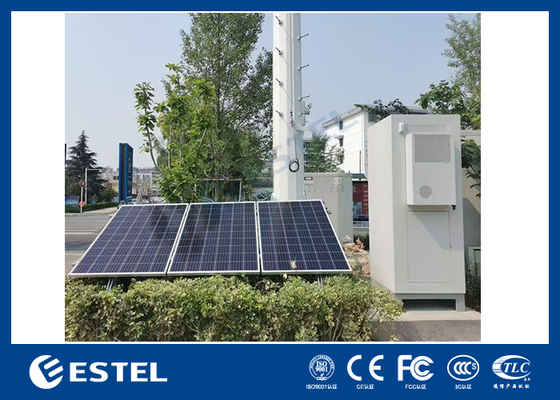

This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

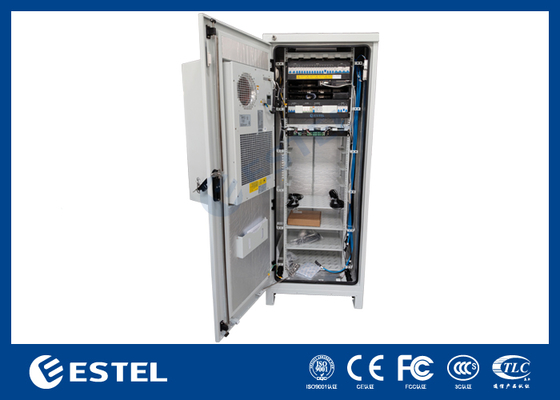

3. Cabinet Features
- High protection grade: IP55
- Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
- Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
- Support remote management, improve security and minimize customer’s operation cost

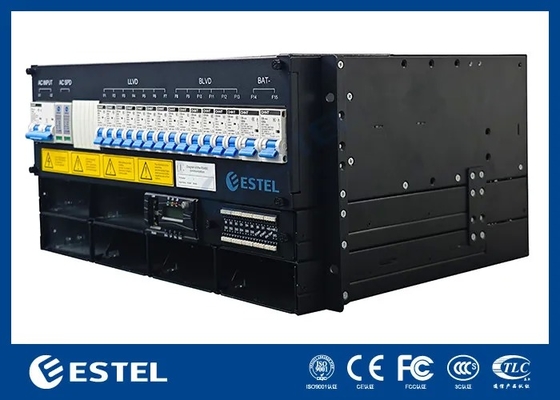

4. Rectifier Power System Features
- Power system capacity: 9kW, 150A, 3 rectifier modules + 1 monitoring module;
- Power system height: 5 rack units;
- Rectifier module specification: 3kW (50A)
- Monitoring module: support SNMP;
- Power distribution:
- LVD1: 2x80A, 2x63A;
- LVD2: 1x63A, 4x32A, 2x16A;
5. Cooling System Features
Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
6. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060120A-20U (5U/9kW/150A) |
| Protection Level | IP55 | |
| External Dimension | HxWxD = 1200x600×600mm (Can be customized) | |
| Internal Dimension | 19 inch 20U | |
| Material | Galvanized steel, 1.2 mm thickness, single wall. | |
| Thickness of bearing parts: 2.0 mm | ||
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door and one rear door | |
| Cooling System | Air conditioner | Optional |
| Fan | 2pcs fan with one fan controller | |
| Input Voltage | AC220V 60Hz | |
| Door sensor | Door sensor | |
| Temperature sensor | Temper sensor | |
| Rectifier system | Rectifier system | 9KW(150A) 19" rack mount, 5U Rectifier System: |
| 50A rectifier module*3 (150A) | ||
| Monitoring Controller Module*1, SNMP communication port | ||
| Power distribution: | ||
| LVD1: 2*80A+2*63A | ||
| LVD2: 1*63A+4*32A+2*16A | ||
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V, 60Hz. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
