Black 200 - 240VAC 32A Vertical PDU Power Distribution Unit with C13 / C19 Outlets for Power Distribution
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ROHS
Model Number:
1S32L30KN3D1-21E3G-2
Trading Properties
Minimum Order Quantity:
1 set
Price:
43-1429 usd
Payment Terms:
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability:
3,000 sets per month
Product Summary
Black 200-240VAC 32A Vertical Power Distribution Unit with C13/C19 Outlets 1. Power Distribution Unit Product Specification Parameter Description: Customer name NO. Product specification parameter description Product name PDU 1 Socket system and number IEC320 C19 (3); IEC320 C13(21) Product ...
Product Details
Highlight:
Vertical PDU Power Distribution Unit
,32A Vertical PDU
,C13 / C19 Outlets Vertical PDU
Size And Specification:
(L*W*H) 1686*52*44.4mm
Cable Plug System:
32A IEC60309 (2P+E) IP44
Socket System And Number:
IEC320 C19 (3); IEC320 C13(21)
Internal Connecting Line:
16AWG, 14AWG, 12AWG, Copper Stick
Fixed Hole Center Distance:
1666.5mm (Back Stud Spacing 933mm)
Power Supply Input Mode:
Cable
Shell Color:
Black
Cable Specifications:
3*6mm²*3m
Cable Installation Mode:
Top Input
Cable Fixing:
Fixed Wire Holder+Dust Rubber Ring
Product Description
Black 200-240VAC 32A Vertical Power Distribution Unit with C13/C19 Outlets
1. Power Distribution Unit Product Specification Parameter Description:
| Customer name | NO. | Product specification parameter description | ||
| Product name | PDU | 1 | Socket system and number | IEC320 C19 (3); IEC320 C13(21) |
| Product specification and model | 1S32L30KN3D1-21E3G-2 | 2 | Internal connecting line | 16AWG,14AWG,12AWG,copper Stick |
| Product code | 3 | Power supply input mode | Cable | |
| Product quantity | 4 | Cable plug system | 32A IEC60309 (2P+E) IP44 | |
| RoHS | YES | 5 | Cable specifications | 3*6mm²*3m |
| Customer product code | / | 6 | Cable installation mode | Top input |
| Customer product specification and model | 7 | Cable fixing | Fixed wire holder+ Dust rubber ring | |
| 8 | Shell color | Black | ||
| Special product description | / | 9 | Size and specification(L*W*H) | 1686*52*44.4mm |
| 10 | Fixed hole center distance |
1666.5mm (Back stud spacing 933mm) |
||
| 11 | Aluminum alloy shell length | 1632mm | ||
| 12 | Product installation mode | Bracket installation | ||
| 13 | Installation direction of bracket | Vertical inversion | ||
| Factory accessories | 4 pcs for each M6 screw and nut | 14 | Control indication function | 2*1P/16A Hydraulic circuit breaker |
| 15 | Protection monitoring function | KN-3 | ||
| Product identification | Product name | PDU | ||
| Customer specifications and models | 1S32L30KN3D1-21E3G-2 | |||
| Rated voltage and current | 200-240VAC 32A | |||
| Safety certification mark | / | |||
| LOGO | / | |||
| Manufacturer | ESTEL | |||
2. Power Distribution Unit Product Renderings:

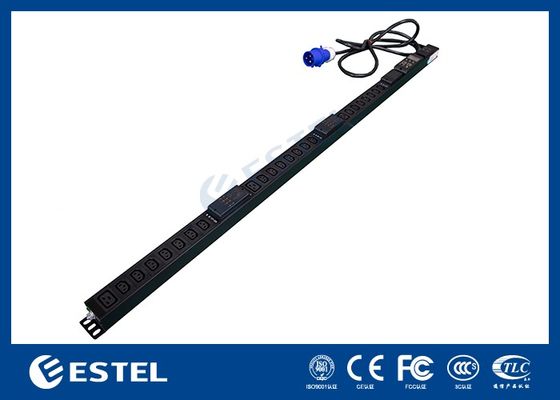

Figure 1. 1S32L30KN3D1-21E3G-2 (KT-PDU-16-VL)
