Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC
Model Number:
ET807521A-40U
Trading Properties
Minimum Order Quantity:
1
Price:
715-4286 usd
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Supply Ability:
20,000 sets per month
Product Summary
Outdoor Telecom Cabinet with PDU and Side Box 1.Technical Parameters Configuration Item Technical Parameter Cabinet Model ET807521A-40U Protection Level IP55 External Dimension H2100mm×W800mm×D750mm Internal Dimension 19 inch rail, 40U Material Galvanized steel, 1.2mm + 1.0mm thickness, double walls...
Product Details
Highlight:
48VDC Input Outdoor Telecom Cabinet
,Outdoor Telecom Cabinet with PDU
,40U IP55 Outdoor Telecom Cabinet
Model:
ET807521A-40U
Protection Level:
IP55
External Dimension:
H2100mm×W800mm×D750mm
Internal Dimension:
19 Inch Rail, 40U
Material:
Galvanized Steel, 1.2mm + 1.0mm Thickness, Double Walls. Thickness Of Bearing Parts: 2.0mm
Insulation:
20mm PEF
Coating:
Polyester Powder Coating
Color:
RAL7035
Product Description
Outdoor Telecom Cabinet with PDU and Side Box
1.Technical Parameters
| Configuration | Item | Technical Parameter | ||
| Cabinet | Model | ET807521A-40U | ||
| Protection Level | IP55 | |||
| External Dimension | H2100mm×W800mm×D750mm | |||
| Internal Dimension | 19 inch rail, 40U | |||
| Material |
Galvanized steel, 1.2mm + 1.0mm thickness, double walls. Thickness of bearing parts: 2.0mm |
|||
| Insulation | 20mm PEF | |||
| Coating | Polyester powder coating | |||
| Color | RAL7035 | |||
| Lock | Anti-theft three-point locking system | |||
| Hinge | Inner hinge | |||
| Installation Options | Floor mounted | |||
| Cable Routing | 10 at the cabinet bottom and 10 on each front side, all with a diameter of 24mm.able in and out from the bottom of cabinet | |||
| Maintenance | One front door, front maintenance | |||
| Cooling | Options | AC air conditioner | Heat exchanger | Fans-6 pcs |
| Cooling Capacity | 2000W | 150W/K | ||
| Input Voltage | 220VAC 50HZ | 48VDC | 48VDC | |
| Communication | RS485 | RS485 | With temp. controller | |
| Power Distribution Unit | Voltage | 200VAC～240VAC(optional) | ||
| Input |
1× 3P 40A, 1x 3P 25A,1x 1P 10A(接灯),1x 1P 16A SPD 40KA (optional), terminal block, H socket. |
|||
| Output | Leakage protection circuit breaker:1x 16A | |||
| Sensors | Door sensor , temperature and humidity sensor | |||
| Side box |
Generator socket, 32A 425V, IP45, terminal blocks-6 pins x 32A, 9 pin (for LED), 3 indicator lights, cable inlet at the bottom. |
|||
| Others | 48VDC LED lamp for illumination with switch,access control, temperature and humidity sensor (48VDC) | |||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | ||
| Storage Temperature | -40℃~+70℃ | |||
| Working Humidity | 5%~95%(No condensation) | |||
| Working Altitude | 0~4000 meters | |||
2.Cabinet Diagram

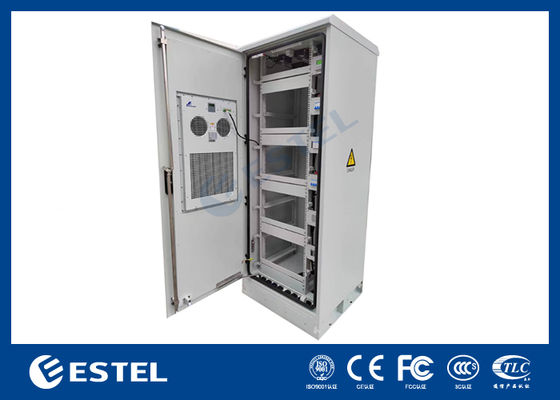

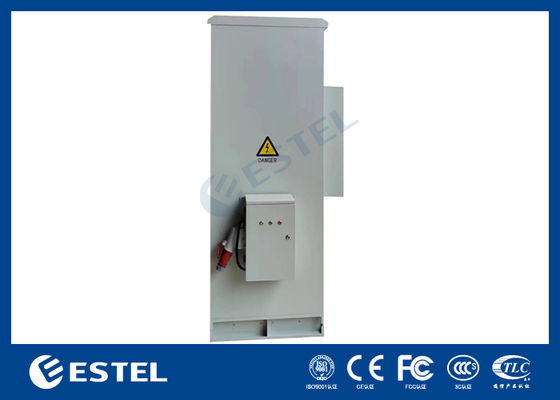

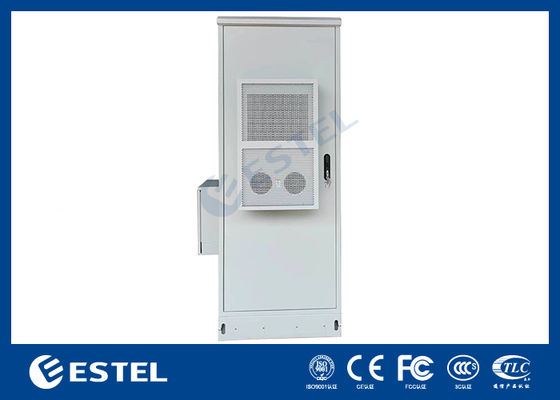

3.Cabinet Pictures
