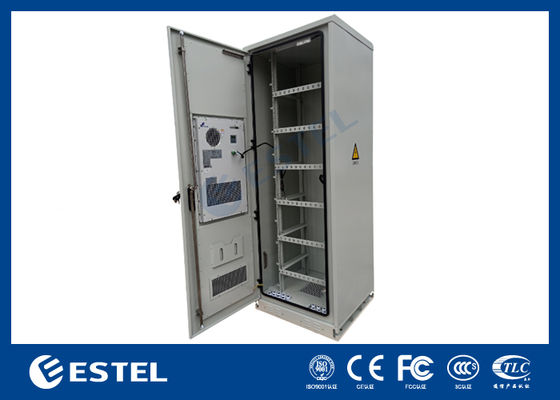

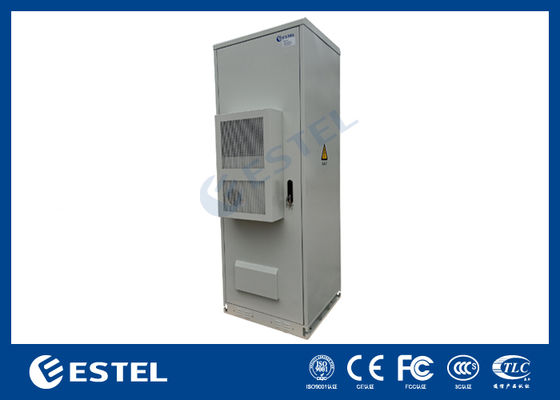

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications 45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications

Large Image :  45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: ET8080230A-45U
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Contact Now
Detailed Product Description
Model: ET8080230A-45U Protection Level: IP55
External Dimension: H800mm×W800mm×D2300mm ( Can Be Customized) Internal Space: 19 Inch, 45U
Material: Galvanized Steel,inner Plate:1.0mm, Outer Plate: 1.2mm, Base Thickness: 2.0mm, Double Wall With PEF Heat Insulation Insulation: 20mm PE
Coating: Polyester Powder Coating Color: RAL7035
Highlight:

45U Outdoor Telecom Cabinet

,

Outdoor Telecom Cabinet with PDU

,

Power Management Outdoor Telecom Cabinet

45U Outdoor Telecom Cabinet with PDU



1.Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET8080230A-45U
Protection Level IP55
External Dimension H800mm×W800mm×D2300mm ( can be customized)
Internal Space 19 inch, 45U
Material Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall with PEF heat insulation
Insulation 20mm PE
Coating Polyester powder coating
Color RAL7035
Lock Three-point lock
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet with gland: 8xPG21 and 8xPG29
Maintenance One front door, front maintenance
Air conditioner Cooling Capacity 1500W
Input Voltage 48VDC
Communication RS485
Sensor Working voltage DC40V-DC60V
Power Distribution Unit 125A 6 way UK plug
LED Lamp Voltage: 48VDC LED Lamp with switch
Environment Working Temperature -40℃~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000meters































































2.Cabinet Diagram



45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications 0



























































































45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications 1





























































45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications 2
