19-Inch 18U Standard Outdoor Telecom Cabinet with Integrated Cooling System and Stainless Steel Front Door
Product Details
19-Inch Outdoor Telecom Cabinet
,SS Front Door Telecom Cabinet
,outdoor telecom cabinet with cooling system
19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
1. Introduction

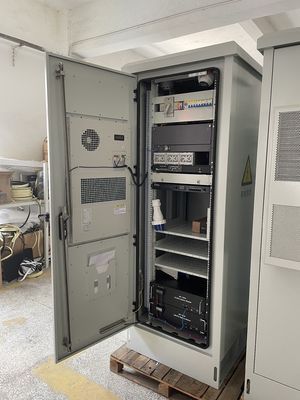

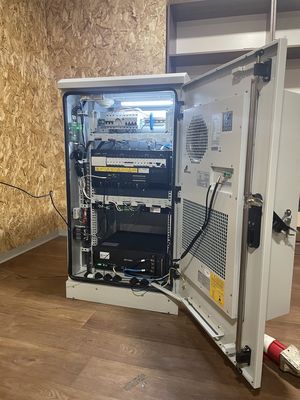

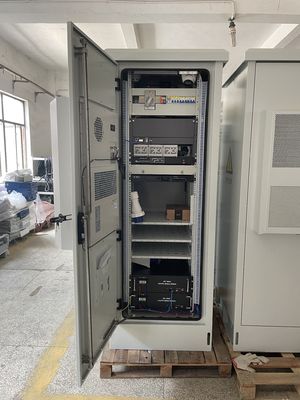

ET6060110A-18U is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment, power system and batteries.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Fans are installed on cabinet, with filter, convenient for maintenance, cleaning and replacement
● Comprehensive protection: door sensor, smoke sensor, water sensor, temperature sensor, vibration sensor, etc
● Support remote management, improve security and minimize customer’s operation cost
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
4. Technical Parameters
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060110A-18U |
| Protection Level | IP55 | |
| External Dimension | H1100mm×W600mm×D600mm | |
| Internal Space | 19 inch rack, with 4 battery shelves | |
| Material | Galvanized steel 1.2mm, single wall without insulation. | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Cooling | Fan | Model #: 12038, 200VAC 50Hz, 2 pcs |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |
-
