Product Details:
Payment & Shipping Terms:
|
| Socket System And Number: | IEC320 C13 Anti Detachment Socket (8) | Internal Connecting Line: | 14AWG, 16AWG Electronic Wire And Copper Strip |
|---|---|---|---|
| Power Supply Input Mode: | C20 (Anti Detachment) | Cable Installation Mode: | Backward Input |
| Shell Color: | Red/Blue | Size And Specification: | L*W*H 484*180*44.5mm |
| Fixed Hole Center Distance: | 465mm | Product Installation Mode: | Bracket Installation |
| Highlight: | Intelligent AC PDU,C20 AC PDU,Rack-Mount Power Distribution Unit |
||
16A Smart Rack-Mount AC Power Distribution Unit
1. Power Distribution Unit Product Specification Parameter Description
| Customer name | NO. | Product specification parameter description | ||
| Product name | PDU | 1 | Socket system and number | IEC320 C13 Anti detachment Socket(8) |
| Product specification and model | 1h16QKN1D1-8e | 2 | Internal connecting line | 14AWG,16AWG Electronic wire and Copper strip |
| Product code | 3 | Power supply input mode | C20(Anti detachment) | |
| Product quantity | 4 | Cable plug system | / | |
| RoHS | YES | 5 | Cable specifications | / |
| Customer product code | / | 6 | Cable installation mode | Backward input |
| Customer product specification and model | 7 |
Cable fixing |
/ | |
| 8 | Shell color | Red /Blue | ||
| Special product description | / | 9 | Size and specification(L*W*H) | 484*180*44.5mm |
| 10 | Fixed hole center distance | 465mm | ||
| 11 | Aluminum alloy shell length | / | ||
| 12 | Product installation mode | Bracket installation | ||
| 13 | Installation direction of bracket | Horizontal formal attire | ||
| Factory accessories |
4 pcs for each M6 screw and nut |
14 | Control indication function | 1P/20A Anti-misoperation Hydraulic circuit breaker |
| 15 | Protection monitoring function | KN-1(IPV6) | ||
| Product identification | Product name | PDU | ||
| Customer specifications and models | 1h16QKN1D1-8e | |||
| Rated voltage and current | 200-240VAC 16A | |||
| Safety certification mark | / | |||
| LOGO | / | |||
| Manufacturer | ESTEL | |||

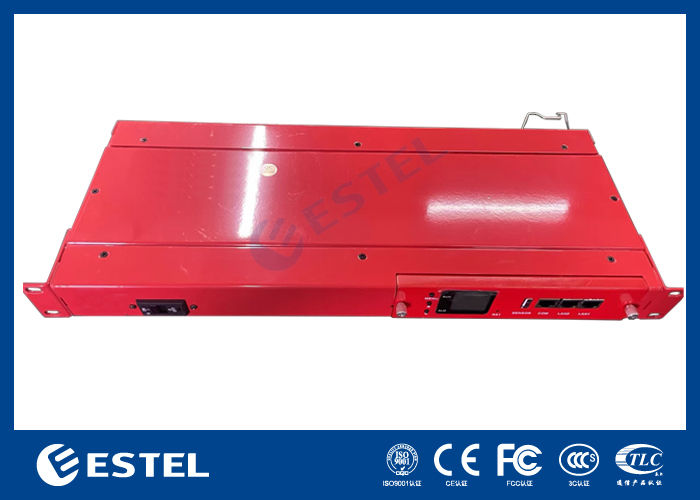

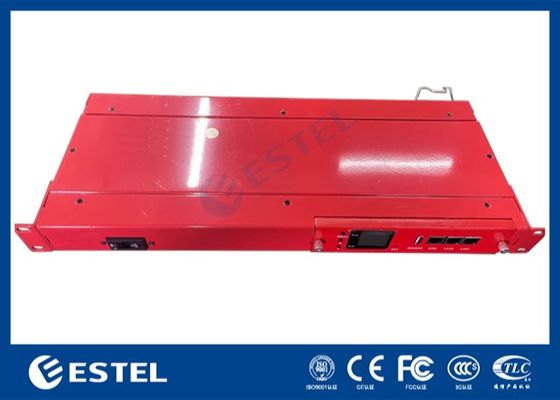

2. Power Distribution Unit Product Renderings
