Product Details:
Payment & Shipping Terms:
|
| Socket System And Number: | IEC60320 C13 With Lamp (8) | Internal Connecting Line: | 16AWG, 14AWG, Copper Stick |
|---|---|---|---|
| Power Supply Input Mode: | C20 Socket | Cable Installation Mode: | Back Input |
| Shell Color: | Black | Size And Specification: | L*W*H 484*200*44mm |
| Fixed Hole Center Distance: | 465mm | Product Installation Mode: | Bracket Installation |
| Installation Direction Of Bracket: | Horizontal Formal Dress | Protection Monitoring Function: | KN-3 |
| Highlight: | 240VAC Smart Rack-Mount PDU,16A Smart Rack-Mount PDU,Power Distribution Unit With C20 |
||
16A Rack-Mount Smart Power Distribution Unit
1. Power Distribution Unit Product specification parameter description:
| Customer name | NO. | Product specification parameter description | ||
| Product name | PDU | 1 | Socket system and number | IEC60320 C13 with lamp(8) |
| Product specification and model | 1h16QKN3D1-8E | 2 | Internal connecting line | 16AWG,14AWG,copper Stick |
| Product code | 3 | Power supply input mode | C20 socket | |
| Product quantity | 4 | Cable plug system | / | |
| RoHS | YES | 5 | Cable specifications | / |
| Customer product code | / | 6 | Cable installation mode | Back input |
| Customer product specification and model | 7 |
Cable fixing |
/ | |
| 8 | Shell color | black | ||
| Special product description | / | 9 | Size and specification(L*W*H) | 484*200*44mm |
| 10 | Fixed hole center distance | 465mm | ||
| 11 | Aluminum alloy shell length | / | ||
| 12 | Product installation mode | Bracket installation | ||
| 13 | Installation direction of bracket | Horizontal formal dress | ||
| Factory accessories |
4 pcs for each M6 screw and nut | 14 |
Control indication function |
1P/16A hydraulic circuit breaker |
| 15 | Protection monitoring function | KN-3 | ||
| Product identification | Product name | PDU | ||
| Customer specifications and models | 1h16QKN3D1-8E | |||
| Rated voltage and current | 200-240VAC 16A | |||
| Safety certification mark | / | |||
| LOGO | / | |||
| Manufacturer | ESTEL | |||

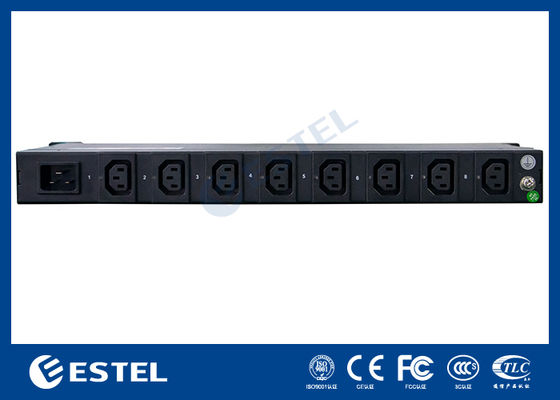

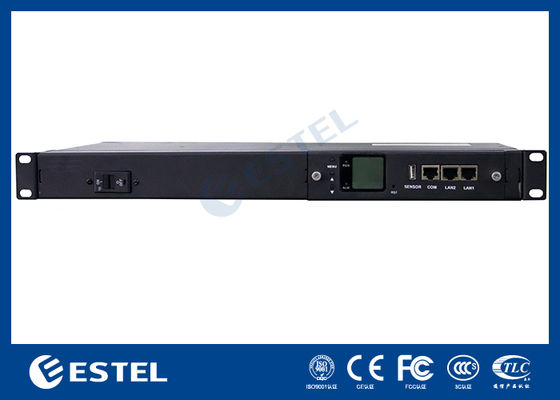

2. Power Distribution Unit Product Rendering:
