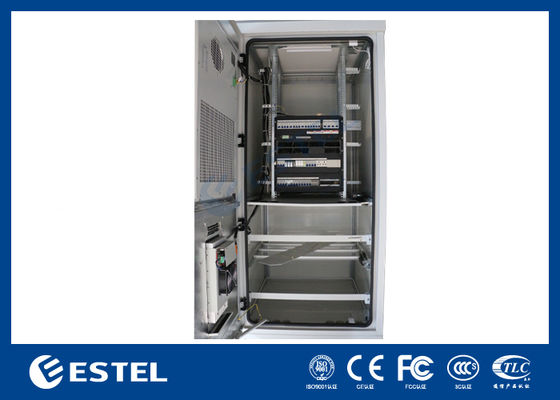

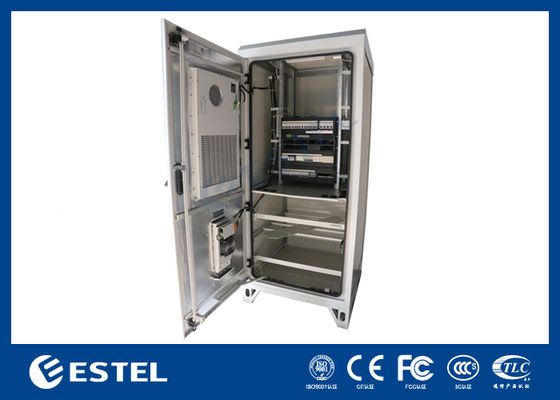

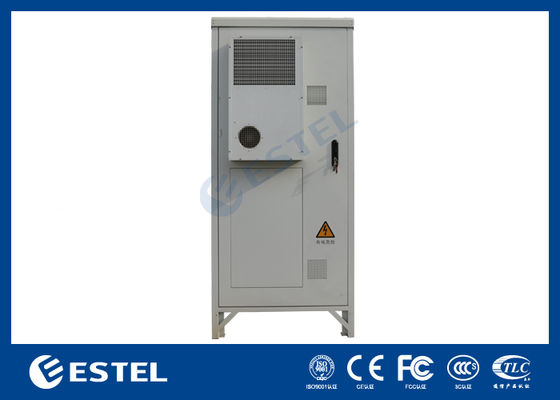

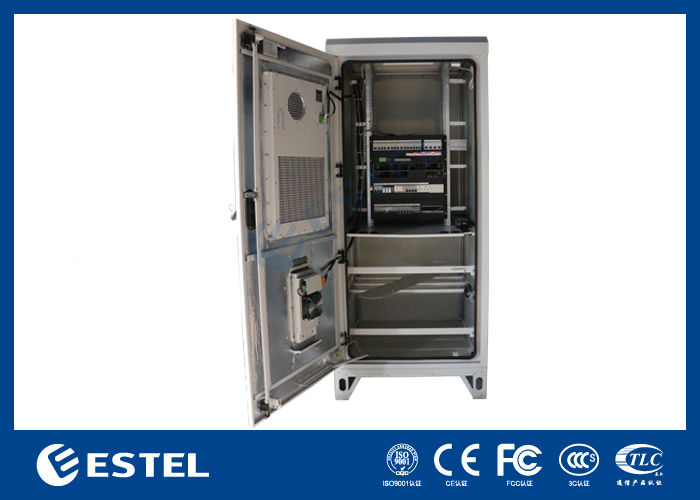

22U IP65 Outdoor Telecom Cabinet with Anti-Theft and Weatherproof Features
Product Details
Anti-theft Outdoor Telecom Cabinet
,IP65 Outdoor Telecom Cabinet
,22U Weatherproof Telecom Cabinet
Outdoor Telecom Cabinet Main Technical Specifications
1. Outdoor Telecom Cabinet Technical Parameters
|
Configuration |
Item |
Technical Parameter |
|
Cabinet |
Model |
ET7565200C-22U |
|
Protection Level |
IP65 |
|
|
External Dimension |
H2000mm×W750mm×D650mm (Support customization) |
|
|
Internal Space |
Dual cabin structure, upper cabin 19 inches 22U, lower cabin with two layers of battery panels |
|
|
Material |
Galvanized steel; cabinet thickness: 1.2mm; single wall; bearing part thickness: 2.0mm |
|
|
Insulation |
single wall 20mm PEF(Thickness optional) |
|
|
Coating |
Polyester powder coating |
|
|
Color |
RAL7035 |
|
|
Lock |
Three-point lock |
|
|
Hinge |
Recessed built-in hinge |
|
|
Installation Options |
Floor mounted, Roof mounted |
|
|
Cable Routing |
At cabinet bottom, inlet/outlet downwards |
|
|
Maintenance |
Front maintenance |
|
|
Cooling |
DC air conditioner,3000W,48VDC,RS485 |
|
|
TEC air conditioner,200W,48VDC |
||
|
Power System |
(1) Height: 12U (2) AC Input: Three Phase: 200-240 Vac/346-415 Vac Single-phase: 200-240 Vac (3) Input Circuit Breaker: 63A/3P Input lightning protection: Class C (20KA/40KA) (3) 4kW rectifier modules* 8; (4) Controller MC2600 (5) Battery MCB 4*125A/2P. (6) Load: LLVD: 2*80A/1P+8*63A/1P BLVD: 1*63A/1P+14*32A/1P+2*16A/1P |
|
|
Power Environment Monitor |
(1) Power environment monitor: PM5000 × 1 Door magnetic sensor: HO-03×1 Flood: S3-WDT-P×1 Smoke sensor:-JTY-GD-CA2001L×1 Temperature and humidity sensor: PM5000TT-TEMP×1 Oil level sensor: KNMY-268×1 (2) Power environment monitor to be mounted on 19-inch post, front maintenance |
|
|
Battery |
Lithium battery 48VDC 100AH*4 |
|
|
Fan |
DC48V+ temperature control |
|
|
Lamp |
48VDC LED |
|
|
Others |
Combiner box, cables |
|
|
Environment |
Working Temperature |
-40℃~+55℃ (+Solar Radiation) |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Working Humidity |
5%~95%(No condensation) |
|
|
Working Altitude |
0~4000 m |
|
2. Outdoor Telecom Cabinet Dimensional Diagram
-
