| Model: | QN450-600 | Rated Maximum Power: | 400-600W |
|---|---|---|---|
| Module Efficiency: | 19.90-21.10 | Voltage At Pmax (Vmp/V): | 33.89-34.87 |
| Current At Pmax (Imp/A): | 12.69-13.05 | Solar Cell (Type/Size): | MONO (182mm) |
| Solar Cells Number: | 156pcs (6*26) | Dimensions (mm): | 1909*1134*35 |

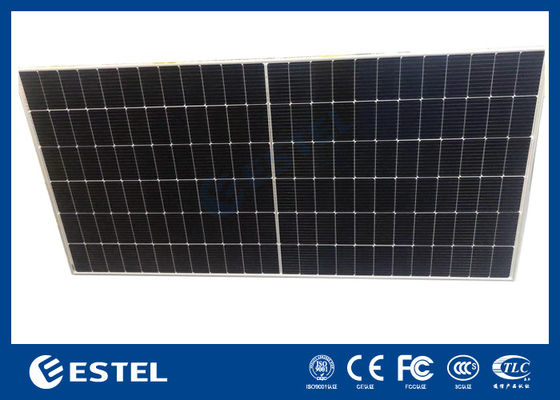

High Power Output Mono Half-cut Single Module 450W to 600W Solar Panel for Telecom Power System
1. Features of Solar Panel for Telecom Power System:
1) Multi Busbar Technology
Better light trapping and current collection to improve, effectively improve the module’s power output and reliability.
2) Higher Output Power
Module output power increased to 505W.
3) Low Light Performance
The special solar cell technology has excellent low light power generation performance.
4) Better Resistance to Hot Spots
The use of half cell structure and special circuit design is less shade loss, with better temperature coefficient and thermal spot resistance ability.
5) Adaptability to Harsh Environments
High performance materials are suitable for coastal, farm, desert and other harsh environment conditions, glass surface is anti-reflective and easy to clean, minimizing power generation losses caused by dirt and dust.
2. Specifications of Solar Panel for Telecom Power System:
| Solar Cell (Type/Size) | MONO (182mm) |
| Solar Cells Number | 156pcs (6*26) |
| Dimensions | 2464*1134*35mm |
| Weight | 30.0kg/pc |
| Structure | 3.2 Glass + EVA film + Back |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 Bypass Diode |
| Cable Cross Section Size | 4.0mm2, (+)280mm,/(-)400mm |
| Mechanical Load | Front 5400Pa / Back 2400Pa |

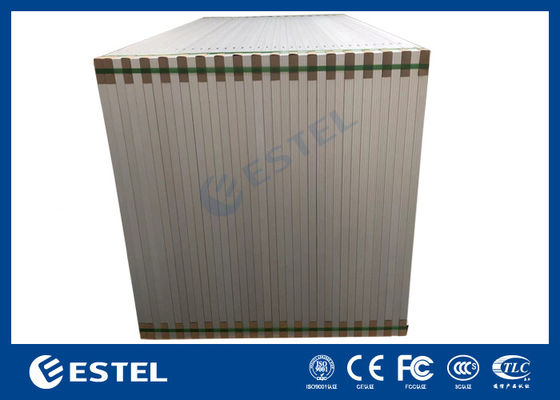

| Packing Number | 31pcs/pallet |
| Packing Volume | 3.542cbm/pallet |
| 40’ HQ Container | 590pcs |
3. Electrical Parameters at STC of Solar Panel for Telecom Power System:
| Module Type | QN580M | QN585M | QN590M | QN595M | QN600M |
| Rated Maximum Power (Pmax/W) | 580 | 585 | 590 | 595 | 600 |
| Module Efficiency (%) | 20.70 | 20.90 | 20.10 | 21.30 | 21.50 |
| Open Circuit Voltage (Voc/V) | 53.50 | 53.65 | 53.80 | 53.95 | 54.10 |
| Short Circuit Current (Isc/A) | 13.82 | 13.89 | 13.96 | 14.03 | 14.10 |
| Voltage at Pmax (Vmp/V) | 44.90 | 45.07 | 45.22 | 45.39 | 45.33 |
| Current at Pmax (Imp/A) | 12.92 | 12.98 | 13.05 | 13.11 | 13.18 |
| Power Tolerance | 0 to +5W | ||||
| Temperature Coefficient of Isc | +0.046%℃ | ||||
| Temperature Coefficient of Voc | -0.276%℃ | ||||
| Temperature Coefficient of Pmax | -0.350%℃ | ||||
| STC | Irradiance 1000W/m3 Cell Temperature 25℃ AM1.5 | ||||
4. Electrical Parameters at NOCT of Solar Panel for Telecom Power System:
| Module Type | QN580M | QN585M | QN590M | QN595M | QN600M |
| Rated Maximum Power (Pmax/W) | 438 | 441 | 445 | 448 | 452 |
| Open Circuit Voltage (Voc/V) | 50.09 | 50.22 | 50.35 | 50.48 | 50.60 |
| Short Circuit Current (Isc/A) | 11.03 | 11.08 | 11.12 | 11.17 | 11.22 |
| Voltage at Pmax (Vmp/V) | 42.03 | 42.17 | 42.39 | 42.51 | 42.73 |
| Current at Pmax (Imp/A) | 10.42 | 10.46 | 10.50 | 10.54 | 10.58 |
5. Operation Conditions of Solar Panel for Telecom Power System:
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1500VDC |
| NOCT | 45±2℃ |
| Fireproof Performance | Class C |
| Maximum Series Fuse | 25A |
| Temperature Coefficient of Voc | -0.276%/K |
| Temperature Coefficient of Isc | +0.046%/K |

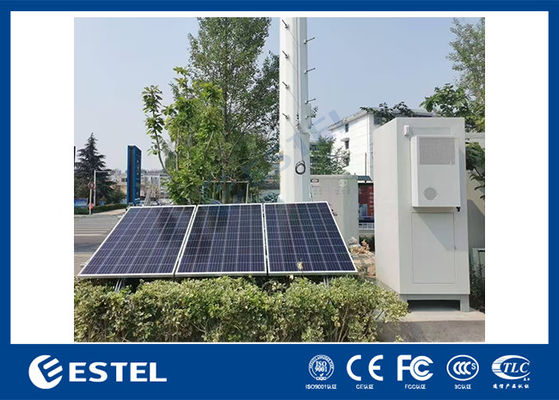

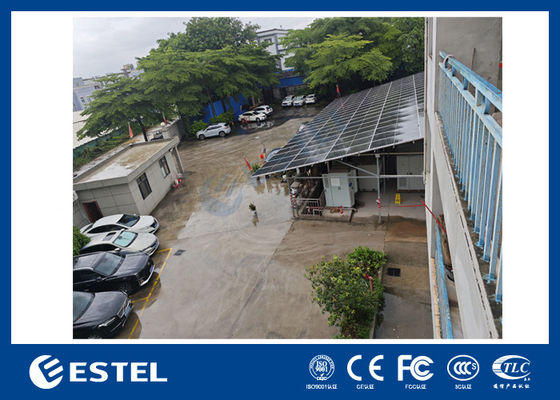

6. Applications of Solar Panel for Telecom Power System:
7. Compliance Certificates of Solar Panel for Telecom Power System:
IEC 61215 / IEC 61701 / IEC 61730
ISO 9001:2015
ISO 45001:2018
ISO 14001:2015
