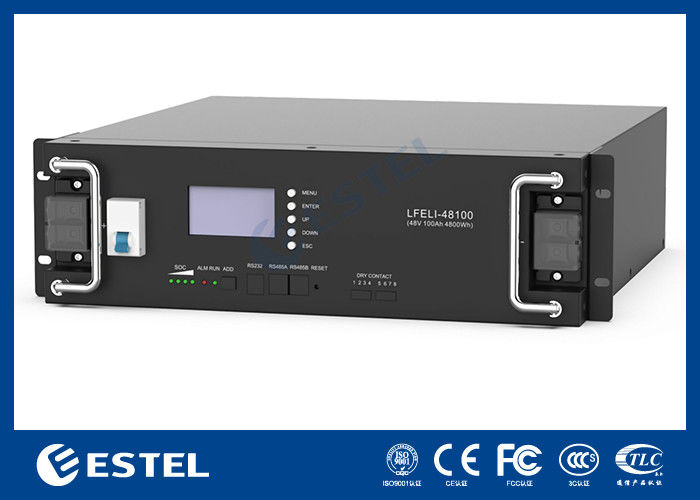

48V100Ah Lithium Iron Phosphate Battery for Telecom Power System
Product Details
Lithium Iron Phosphate Battery
1.Features Of LiFePO4 Battery
• Safe Lithium Iron Phosphate Technology
• Safe to use Low self-discharge rate
• Excellent high temperature performance
• High cycle times and long life
• High energy density and conversion efficiency
• Environmentally friendly without any heavy metals
• High-performance BMS battery management system
• Easy to install, 19-inch cabinet or wall-mounted installation
2.Physical Lithium Iron Phosphate Battery Dimension-mm
3. Physical Lithium Iron Phosphate Battery Typical Applications
• Access Network Equipment
• Remote Switching Offices
• Mobile Communication Equipment
• Transmission Equipment
• Satellite Ground Stations
• Microwave Communication Equipment
• Communication field as backup power supply
| Model | 48100 |
| Rated Capacity (5HR) | 100 Ah |
| Nominal Voltage | 48V |
| Discharge Ending Voltage | 40.5V |
| Charging Limited Voltage | 54V |
| Max. Charging/Discharge Current | 100A |
| Weight | Approx. 40KG |
| Energy | 4800Wh |
| Display | With LCD display |
| Max. number of parallel connection | 15 |
| Dimensions (W*D*H) mm | 442*450*132 |
| Design Life | 20 years |
| Cycle Life | 6000 cycles |
| IP Class | IP30 |
| Case Material | SPCC |
| Operating Temperature | Charging: 0 to +45℃ , Discharging: -10 to +55℃ , Storage: -20 to +60℃ |
| Terminal | M6 |
Constant Current Discharge Table (Amperes) at 25℃
| Voltage Time | 1 h | 2 h | 3 h | 5 h | 10 h |
| End of discharge voltage 40.5V | 100A | 50A | 33.3A | 20A | 10A |
| Constant Power Discharge Table (Watts) at 25℃ | |||||
| Voltage Time | 1 h | 2 h | 3 h | 5 h | 10 h |
| End of discharge voltage 40.5V | 4800W | 2400W | 1600W | 960W | 480W |
-
