Two Compartment Weatherproof Outdoor Cabinet For Telecom Equipment With High Anti-Corrosion Performance And IP55 Protection
Product Details
Outdoor Weatherproof Cabinets For Electronics
,Two Compartment Outdoor Telecom Cabinet
,Telecom Equipment Weatherproof Outdoor Cabinet
Two Compartment Weatherproof Outdoor Cabinet For Telecom Equipment With High Anti-Corrosion Performance And IP55 Protection
1. Brief
ET1207565-EQ is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions. Lead-acid battery and telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments .
2. Application
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinet.
3. Weatherproof Telecom Cabinet Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling system air conditioner is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Using outdoor anti-corrosion powder coating
● All screws are made of stainless steel with high anti-corrosion performance
4. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET1207565-EQ |
| Protection Level | IP55 | |
| External Dimension | W1200mm×D750mm×H650mm (can be customized) | |
| Internal Space | Two compartment: each compartment include 10U 19 inch rack+2 pairs L-shaped tray | |
| Material |
Galvanized steel, 1.2mm thickness, single wall Thickness of bearing parts: 2.0mm |
|
| Insulation | No | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system(support padlock) | |
| Hinge | Hidden Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | Two front doors, front maintenance | |
| Cooling | Fan | Two 48VDC fan with one temperature controller for each compartment |
| Door Sensor |
Two are used for door opening alarm(supporting connect monitor) Two are used for sound and light alarm Total 4 pcs |
|
| Sound Light Sensor | Two 220V sound and light alarm | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
5. Cabinet Diagram

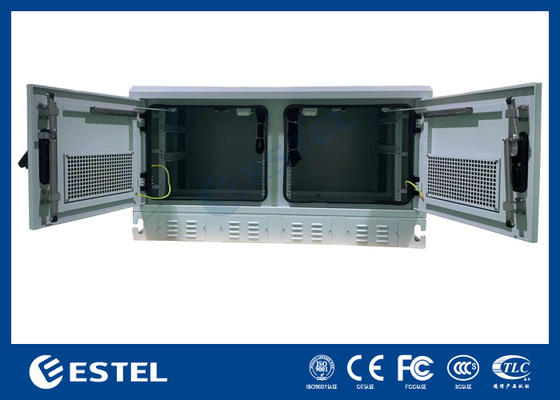

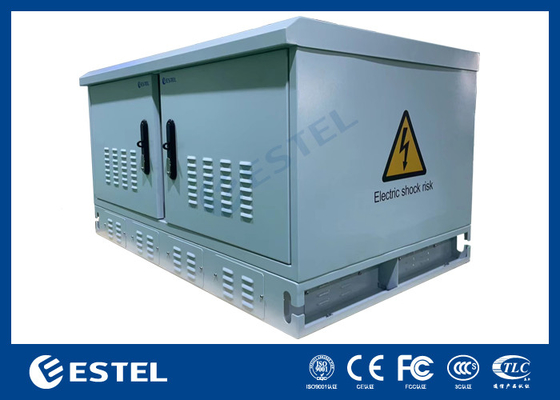

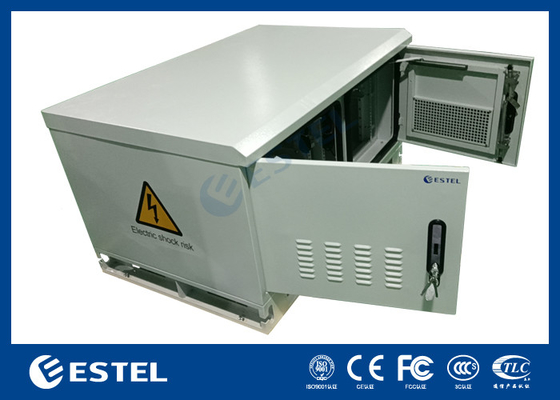

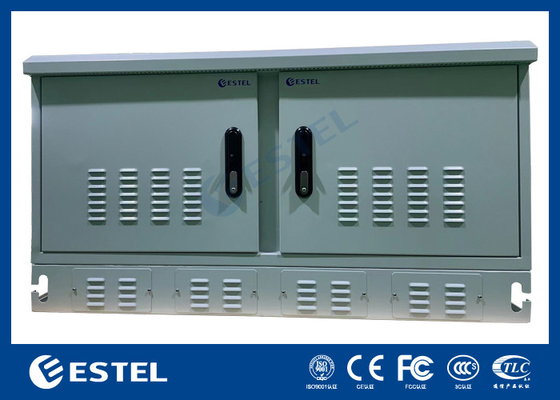

6. Outdoor Cabinet Photos
7. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
-
