Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | W×D×H 750×750×1800mm | 19 Inch Rack: | 33U |
|---|---|---|---|
| Color: | RAL7035 Grey | Material: | Galvanized Steel, Double Wall With Insulation |
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Surface Treatment: | Outdoor Anticorrosion Powder Coating |
| Protection Level: | IP55 | Service: | OEM ODM |
| Cooling System: | AC Air Conditioner | Warranty: | One Year |
| Installation: | Floor Mounted | Cable Management: | ODF |
| Highlight: | Telecom Double Wall Cabinet,Floor Mounted Telecom Power Cabinet,48V Telecom Power Cabinet |
||
ET7575180A-33U Double Wall Floor Mounted Telecom Cabinets With 48V Telcome
1. Floor Mounted Telecom Cabinets Quick Details:
(1) External Dimension W×D×H 750×750×1800mm
(2) One compartment, 33U usage space
(3) One front door; with special lock for outdoor cabinet (support padlock)
(4) Material: Galvanized steel, double wall with insulation in the middle of the cabinet
(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated
(6) Cabinet can install with 48V telecom, ODF, Lithium battery per customer requirements
2. ET7575180A-33U Double Wall Cabinet Specifications:
| Items | Type | Technical Parameter |
| 1 | External dimensions |
External Dimension optional: W*D*H 750*750*1800mm (based on customer request) |
| 2 | Material | Galvanized steel /Stainless steel/ Aluminium optional |
| 3 | Structure | Double wall heat insulation structure,The insulation material is 20mm PEF |
| 4 | Heat Insulation | There are heat insulation between inner wall and outer wall |
| 5 | Cooling system | 48VDC air conditioner |
| 6 | Accessories | Lithium battery,PDU, UPS, Monitor, Light, Alarm sensors(Based on request) PDU outlet. Monitor. Light. Alarm. Sensor (Based on request) |
| 7 | Alarm Sensors | Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor |
| 8 | Lamp | DC48V LED lamp |
| 9 | Protection level | IP55 |
| 10 | Flame retardance | Comply with GB5169.7 test A |
| 11 | 48V Power Supply | Available upon request |
| 12 | Cable management | Yes, per customer's request |
| 13 | Temperature |
Working Temperature: -40°C ~ +55°C |
|
Storage Temperature: -50°C ~ + 70°C |
||
|
Transport Temperature: -50°C ~ +70°C |
||
| 14 | Package | Wooden case with pallets |
3. 48V Telecom Power Cabinet Introduction:
The 48V Telecom Power Cabinet is a cutting-edge solution designed to optimize power distribution and management in modern computing and electronics systems. Incorporating advanced Hybrid Power technology, this cabinet provides intelligent control and regulation of power output, ensuring both energy efficiency and system stability.
Here are the key features and benefits of the Hybrid Power Cabinet:

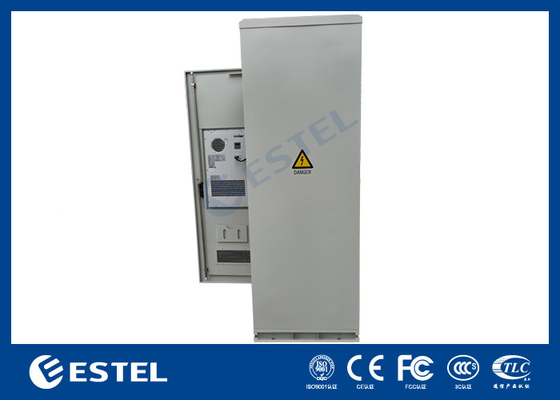

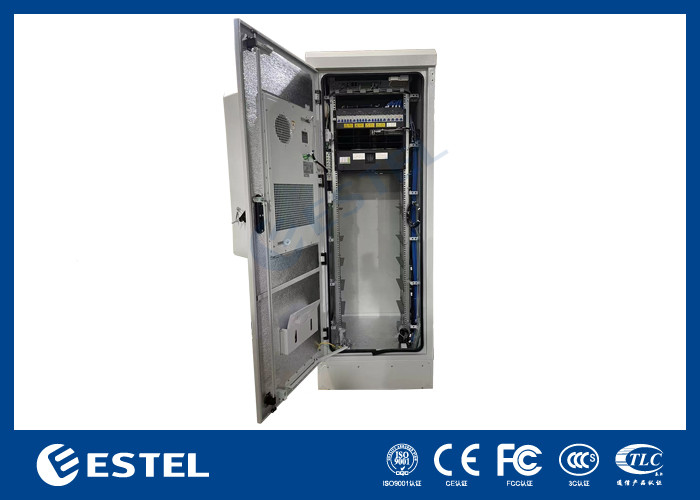

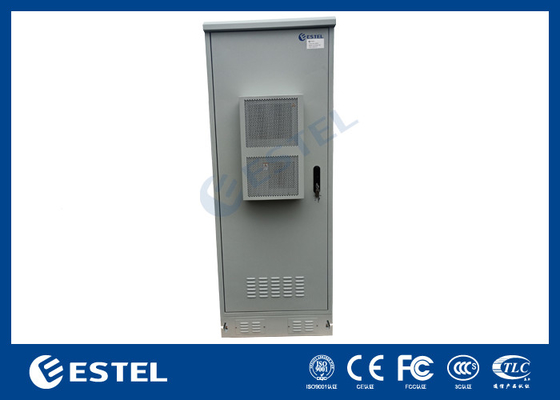

4. Floor Mounted Cabinets with 48V Telecom Pictures:
5. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Integrated Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19”, 40U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel, single wall with 20mm PEF |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: 48VDC |
| 3 | ODF | 1 | PC | 19inch, 1U installation |
| 4 | Telecom power supply | 1 | PC | Customized |
| 5 | FSU | 1 | PC | 19inch rack mounted, connected with all sensors |
| 6 | LED Lamp | 1 | PC | 48VDC LED lamp with switch |
| 7 | Door sensor | 1 | PC | Door sensor |
| 7 | Package | 1 | Set | Wooden Case |
