Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor Power Cabinet | Dimension: | W*D*H 900mm×900mm×2100mm |
|---|---|---|---|
| Material: | SUS 304 | Cooling: | Air Conditioner And Fan |
| Equipment Rack: | 19 Inch Rack, 40U | IP Rating: | IP55 |
| Door: | One Front Door And One Rear Door | Customized: | Yes,support |
| Sensor: | Smoke Sensor, Water Sensor, Door Sensor Ect | Remote Monitory System: | Environment Monitoring Unit |
| Highlight: | Dual Door Outdoor Cabinet Telecom,Remote Monitory System Outdoor Telecom Cabinet,Outdoor Telecom Cabinet With PDU |
||
ET9090210A-40U Outdoor Dual Door Cabinet With Remote Monitory System PDU
1. Outdoor Cabinet Technical Parameters
| Configuration | Item | Technical Parameter | |
| Telecom Cabinet | Model | ET9090210A-40U | |
| Protection Level | IP55 | ||
| External Dimension | H2100mm×W900mm×D900mm ( can be customized) | ||
| Internal Dimension | 19 inch rail,40U | ||
| Material | SUS 304, 1.5mm thickness, single wall. Thickness of bearing parts: 2.0mm | ||
| Insulation | PEF (optional) | ||
| Coating | Polyester powder coating | ||
| Color | RAL7035 | ||
| Lock | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation Options | Floor mounted with installation accessories | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One front door and one rear door, front and rear maintenance | ||
| Cooling | Options | AC air conditioner | Fan |
| Cooling Capacity | 1500W | ||
| Input Voltage | 220VAC 50HZ | 48VDC | |
| Communication | RS485 | / | |
| Temperature Controller | 48V fan temperature controller | ||
| Power Distribution Unit | Grade B lightning Proof | ||
| AC Intput | 63A/2P ×1(optional) | ||
| AC Output | 16A/1P×4 (optional) | ||
| DC Output | 16A/1P×4. (optional) | ||
| Sensors |
1 x smoke sensing 1 x water sensor 1 x temperature and humidity sensor 2 x door sendor 1 x shock sensor |
||
| Others | 48VDC LED lamp for illumination, with LED lamp switch | ||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters |
||
2. ET9090210A-40U Dual Dor Cabinet Features:
2.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
2.2 The cabinet use air conditioner and fans for cooling.
2.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. Including cable inlets at cabinet bottom.
2.4 All the cables used in the cabinet are made from flame retardant materials.
2.5 Perfect protection
● Integrated top cover, good seal, water proof
● Protection grade: IP55
● High stability, anti-UV radiation
● Anti-corrosion
4.6 Heat Insulation
● Sandwich structure insulates the outer heat conduct, keeping temperature inside cabinet without abrupt change, anti-condensation, reducing heat management energy consumption.
● High performance PEF insulation material
2.7 Include grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
2.8 Surface Treatment
Cabinet surface coating is outdoor powder coating, with light grey color.
3. Cabinet With Remote Monitory System Instructions:
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment. This cabinet is the ultimate choice for outdoor racking requirements.
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |

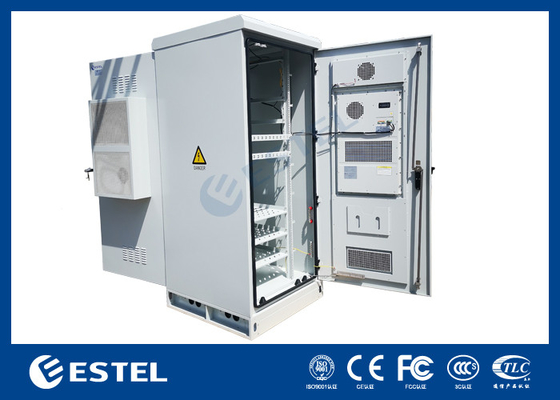

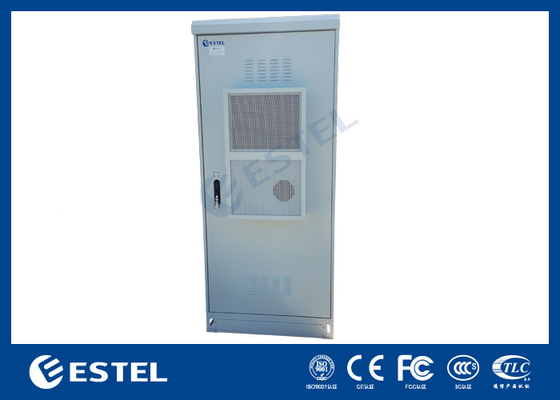

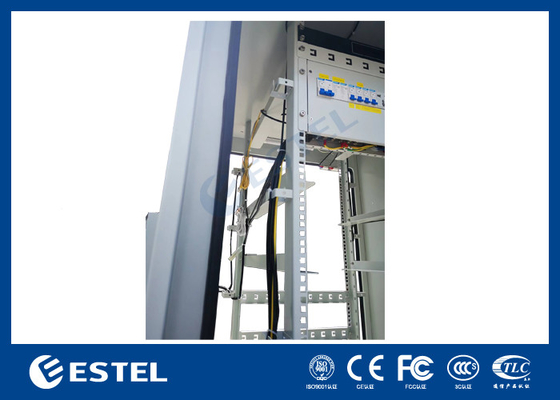

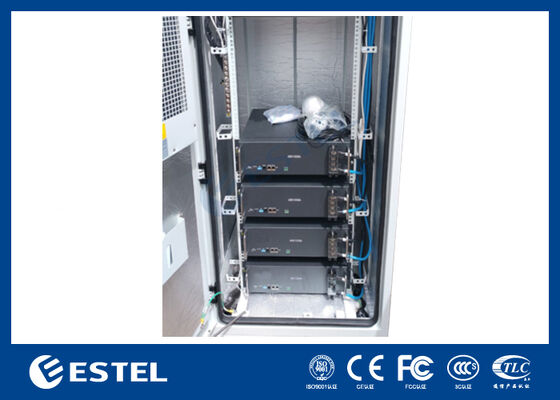

4. Outdoor Dual Door Cabinet Pictures:
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
