19inch 45U Easily Assembled Equipment Cabinet With Air Conditioner IP55 Telecommunications Enclosures
Product Details
IP55 Telecommunications Enclosures
,Easily Assembled Telecom Equipment Cabinet
,19 Inch Equipment Cabinet
19inch 45U Easily Assembled Cabinet With Air Conditioner IP55 Enclosure
1. 19inch 45U Cabinet Technical Parameter:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET8080230A-45U |
| Protection Level | IP55 | |
| External Dimension | H800mm×W800mm×D2300mm ( can be customized) | |
| Internal Dimension | 19 inch rail, 45U | |
| Material |
Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall |
|
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted with installation accessories | |
| Cable routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door | |
| Cooling | Cooling capacity | 1500W |
| Power supply | 48VDC | |
| PDU | Power distribution unit |
125A 6 way UK plug
|
| sensors | Door sensor, water sensor, temperature and humidity sensor, smoke sensor | |
| Others | Illumination | LED lamp: 48VDC with switch |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
2. Cabinet With Air Conditioner Protection Level:
IP54/IP55/IP65
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
3. IP55 Enclosure Description:
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

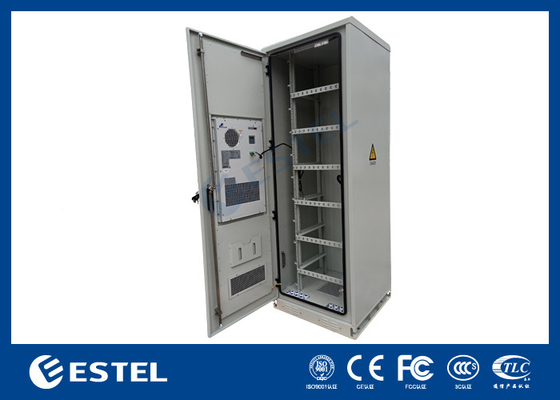

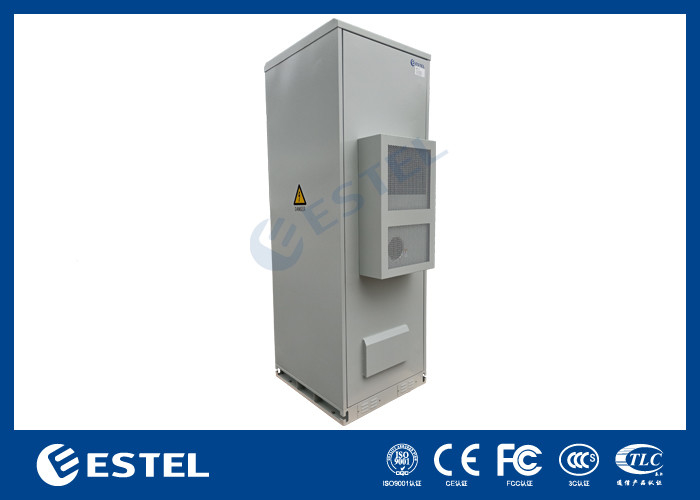

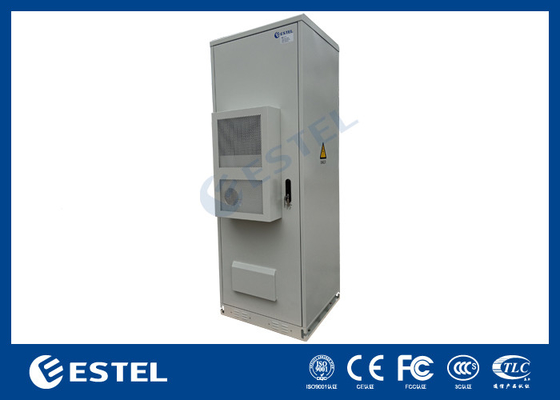

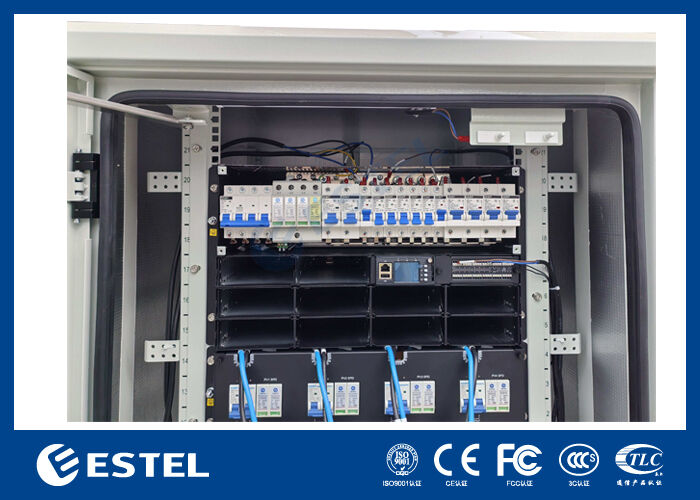

4. Easily Assembled Cabinet Pictures:
5. Cabinet Maintenance and Servicing
To ensure the long-term stable operation of the Outdoor Battery Cabinet, regular maintenance and servicing are required. This mainly includes:
- Cleaning and Dust Removal: Regularly clean the dust and dirt on the exterior of the battery cabinet to maintain its cleanliness.
- Checking Sealing: Regularly inspect the integrity of the sealing strips and tapes, and replace them promptly if damaged.
- Monitoring Parameters: Regularly check the various parameters in the monitoring system to ensure a suitable internal environment within the battery cabinet.
- Battery Maintenance: Regularly conduct charge-discharge tests and maintenance on the batteries according to the requirements of the battery management system.
-
