19 Inch 9U Internal Dimension Outdoor Telecom Cabinet With Two AC220V 50Hz Fans ET6060500A-9U
Product Details
19 inch Outdoor Telecom Cabinet
,9U Outdoor Telecom Cabinet
,Telecom Cabinet with Two Fans

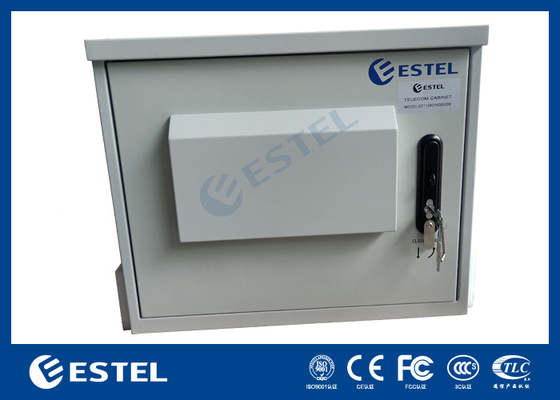

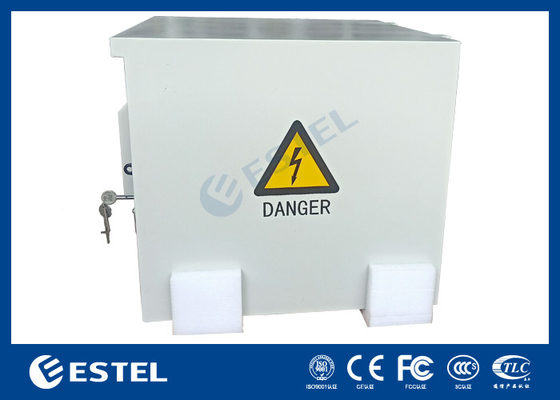

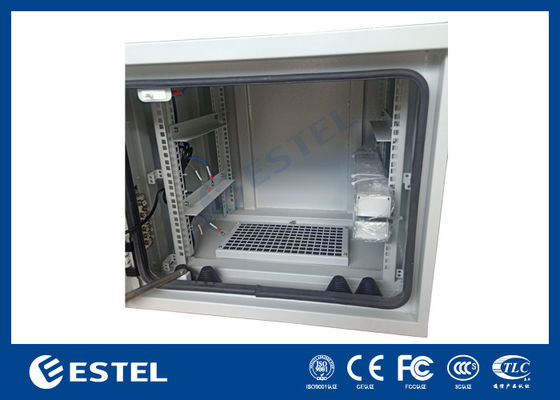

Outdoor Telecom Cabinet With Two AC220V 50Hz Fans ET6060500A-9U
1.Outdoor Telecom Cabinet
ET605550A-9U is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment. Both active telecom equipment and passive telecom equipment can be accommodated inside the cabinet.
2.ET605550A-9U Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Fan is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Support remote management, improve security and minimize customer’s operation cost
3.Applications
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
4.Technical Parameters (Two AC220V 50Hz Fans Type)
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060500A-9U |
| Protection Level | IP55 | |
| External Dimension | H600 mm×W 600 mm×D 500mm ( can be customized) | |
| Internal Dimension | 19 inch 9U | |
| Material |
Galvanized steel, 1.2 mm thickness, single wall. Thickness of bearing parts: 2.0 mm |
|
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Pole mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Fan | Fan |
Two AC220V 50Hz fans with cover One fan temperature controller |
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V,50Hz | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
-
