Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel | Mdoel: | ET9070220-42U |
|---|---|---|---|
| Protection Level: | IP55 | Color: | RAL7035 |
| Lock: | Anti-theft Three-point Locking System | Installation Options: | Floor Mounted |
| Highlight: | ip55 outdoor telecom cabinet,outdoor telecom cabinet with ac,Galvanized Steel Structure telecom cabinet |
||

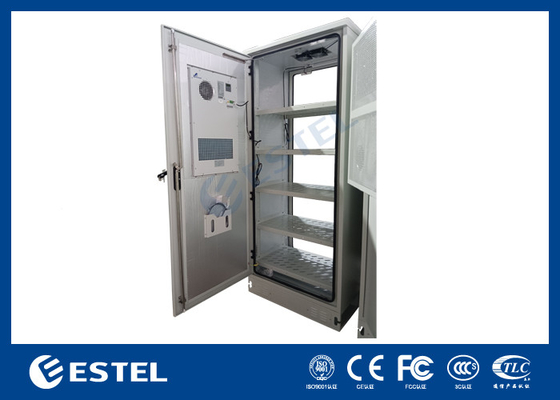

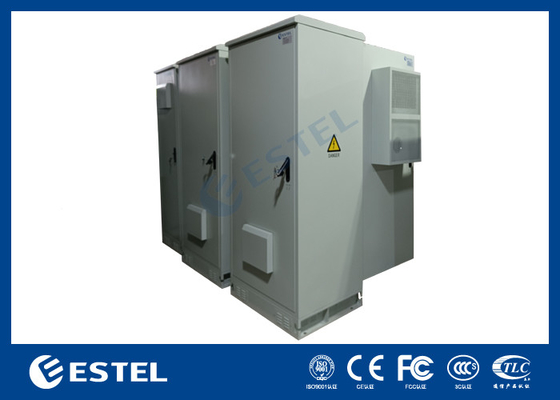

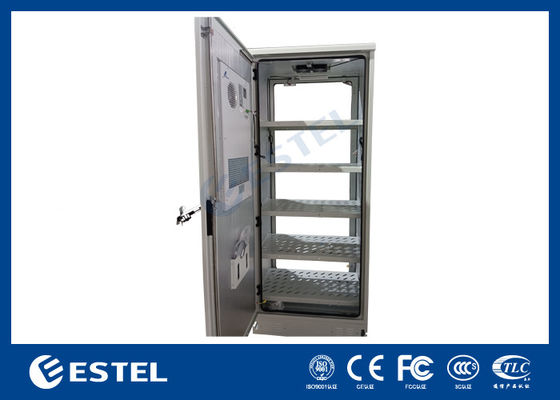

ET9070220-42U Outdoor Telecom Cabinet With AC Air Conditioner
1.Outdoor Telecom Cabinet
ET9070220-42U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
2.ET9070220-42U Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Comprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
● Support remote management, improve security and minimize customer’s operation cost
3.ET9070220-42U Applications
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar controlcabinets,etc.
4.Technical Parameters (ET9070220-42U With AC Air Conditioner Type)
| Configuration | Item | Technical Parameter | ||
| Cabinet | Model | ET9070220-42U | ||
| Protection Level | IP55 | |||
| External Dimension | H2200mm×W900mm×D700mm ( can be customized) | |||
| Internal Dimension | 19 inch rail,42U | |||
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|||
| Insulation | 20mm PEF | |||
| Coating | Polyester powder coating | |||
| Color | RAL7035 | |||
| Lock | Anti-theft three-point locking system | |||
| Hinge | Inner hinge | |||
| Installation Options | Floor mounted | |||
| Cable Routing | Cable in and out from the bottom of cabinet | |||
| Maintenance | One front door, front maintenance | |||
| Cooling | Options | AC air conditioner | DC air conditioner | Fan |
| Cooling Capacity | 1000W | / | ||
| Input Voltage | 220VAC 60HZ | / | ||
| Communication | RS485 | / | ||
| Sensors | Door sensor | |||
| Others | LED lamp for illumination | |||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | ||
| Storage Temperature | -40℃~+70℃ | |||
| Working Humidity | 5%~95%(No condensation) | |||
| Working Altitude | 0~4000 meters | |||
