19inch 15U Outdoor Telecom Cabinet With AC , Four Wheels Weatherproof Data Cabinet
Product Details
19inch Outdoor Telecom Cabinet With AC
,Weatherproof Outdoor Telecom Cabinet With AC
,Four Wheels Weatherproof Data Cabinet
19inch 15U Outdoor Telecom Cabinet With DC Air Conditioner With Four Wheels
1. 19inch 15U Outdoor Telecom Cabinet Features
- Strengthen theft prevention features
- Broad line of outdoor cabinets and enclosures;
- Designed for harsh outdoor environments,
- Wind driven rain resistant,
- Temperature hardened;
- Protection against corrosion;
- 19” Mounting rails front and rear;
2. ET6565100A-15U Outdoor With DC Air Conditioner Functions:
Waterproof and dustproof: Usually with IP55 or IP65 waterproof and dustproof grade, adapt to outdoor harsh environment.
Heat dissipation performance: Built-in aircon/fan or other heat dissipation device to ensure the normal operation of internal devices in high temperature environment.
Capacity: It can provide cabinets with various capacities, such as 18u, 22u, 27u, 32u, 42u, etc.
Customization: Can be customized according to user needs, including size, color, function, etc.
3. Four Wheels Outdoor Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Cabinet | 1 | Set |
(1) External Dimension: H1000mm×W650mm×D650mm (2) One compartment:19inch,15U (3) With one front door, anti-theft three point lock for outdoor cabinet (support padlock) (4) Galvanized steel, single wall with heat insulation (5) There are heat insulation between inner wall and outer wall. The insulation material is PEF. |
| 2 |
Air Conditioner |
1 | Set |
Cooling Capacity: 500W Power Supply: DC48V |
| 3 | Fan,optional | 1 | Set | Power Supply: DC48V |
| 4 | LED Lamp switch | 1 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Door sensor | 1 | Set |
Door sensor |
| 7 | Package | 1 | Set | Wooden Case |

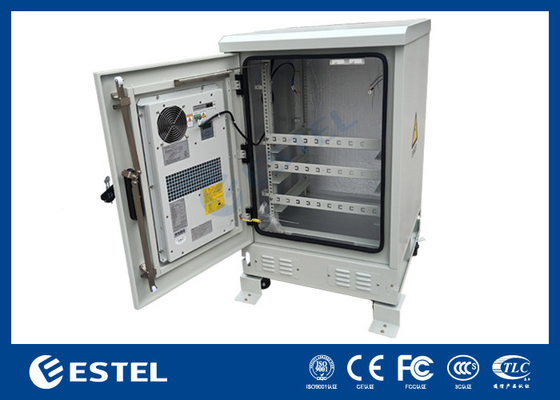

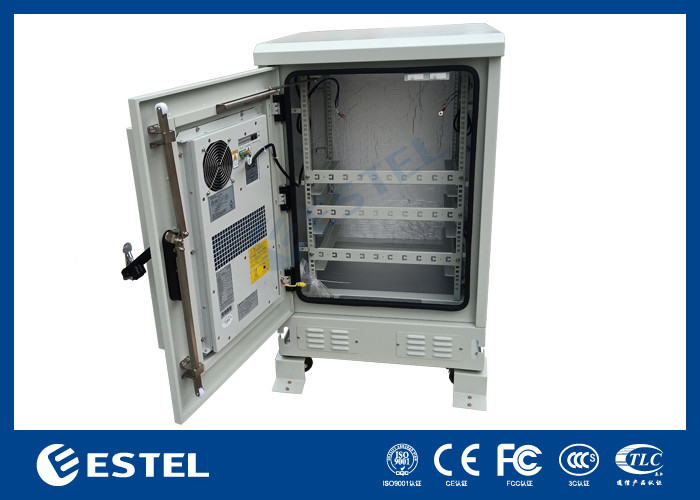

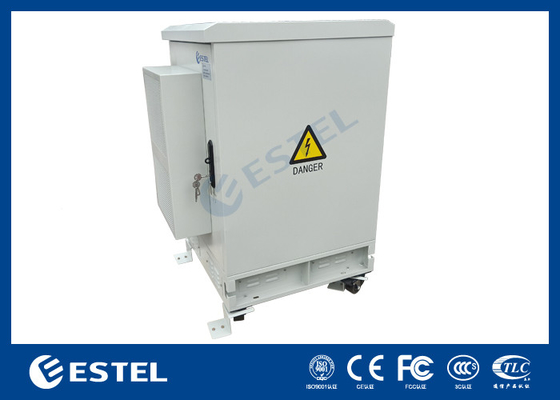

4. Outdoor Cabinet Photos
-
