Single Wall 1.2mm Outdoor Telecom Cabinet With AC And FSU One Front Door
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC, IP55
Model Number:
ET6060175-32U
Trading Properties
Minimum Order Quantity:
1 set
Price:
715-4286 usd
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
3,000 sets per month
Product Summary
Outdoor Telecom Cabinet With FSU And Air Conditioner To Control The Environment Telecom cabinet ET6060175-32U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunicati...
Product Details
Highlight:
Outdoor Telecom Cabinet With AC
,Outdoor Telecom Cabinet With FSU
,Single Wall Outdoor Telecommunication Cabinets
Product Name:
Outdoor Telecom Cabinet
Dimension:
W*D*H 600mm×600mm×1750mm
Material:
Single Wall 1.2mm
Cooling:
500W Air Conditioner
Equipment Rack:
19 Inch Rack
IP Rating:
IP55
Door:
One Front Door
Customized:
Yes
Product Description
Outdoor Telecom Cabinet With FSU And Air Conditioner To Control The Environment
Telecom cabinet ET6060175-32U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather
conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both
active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
Cabinet Features
-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
-Made of heavy gauge galvanized material.
-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
-Standard 19 inch mounting posts.
-Doors secured with steel dead locking system lock (support PADLOCK)
-It is installed in the ground root or above ground column base system by "direct burying"
-Cable entry is via the base as standard with side or roof entry available upon request.
Cabinet Technical Parameters
| Configuration | Item | Technical Parameter | |
| Cabinet | Model | ET6060175-32U | |
| Protection Level | IP55 | ||
| External Dimension | H1750mm×W600mm×D600mm ( can be customized) | ||
| Internal Dimension | 19 inch rail,32U | ||
| Material | Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm | ||
| Insulation | PEF (optional) | ||
| Coating | Polyester powder coating | ||
| Color | RAL7035 | ||
| Lock | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation Options | Floor mounted | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One front door, front maintenance | ||
| Cooling | Options | AC air conditioner | |
| Cooling Capacity | 500W/ | ||
| Input Voltage | 220VAC 50HZ | ||
| Communication | RS485 | ||
| Power Distribution Unit | B Grade lightning Proof | ||
| AC Intput | 63A/2P ×1(optional) | ||
| AC Output | 16A/1P×4 (optional) | ||
| DC Output | 16A/1P×4. (optional) | ||
| FSU |
19 inch installation, 1U high, 220V input voltage, communication port: SNMP
9-way passive switching value input, 6-way active switching value input, 6-way relay
output.
|
||
| Sensors |
1 x smoke sensor, 1 x water sensor, 1 x temperature and humidity sensor, 1 x door sendor, 1 x vibration sensor. |
||
| Others | LED lamp for illumination | ||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters |
||
Cabinet Diagram
Functions of FSU:
Data Collection and Processing
- Sampling and Monitoring: FSU is equipped with various monitoring modules and auxiliary devices that directly face equipment and sensors within a base station to collect and process data.
- Data Relay: It serves as a bridge between the monitoring terminal and the monitoring center, relaying data between them.
Remote Monitoring and Fault Detection
- Remote Supervision: FSU communicates with the monitoring center to enable remote monitoring of on-site conditions.
- Fault Detection and Alarm: It can detect faults in real-time and send alarm information to the monitoring center for prompt handling.
Core Role in Monitoring Systems
- Data Processing Hub: In an intelligent environmental monitoring system for tower base stations, FSU is the core of data processing for the entire monitoring system.
Versatile Applications
- Different Fields: Besides base station monitoring, FSU can also refer to other types of on-site monitoring units, such as those in fire protection and security fields.
- Real-time Monitoring: These units are used for real-time monitoring of various parameters and states at the site to ensure safety and normal operation.

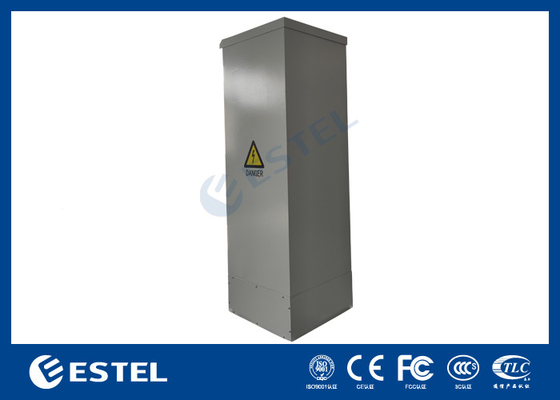

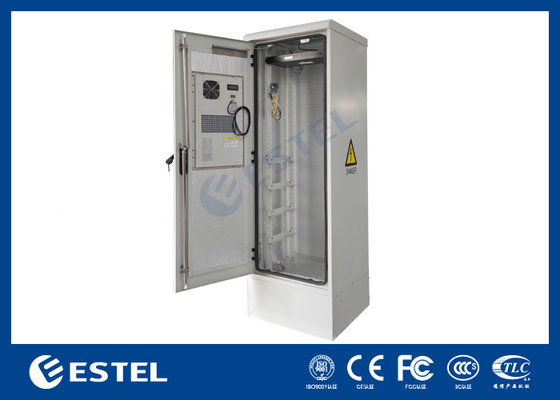

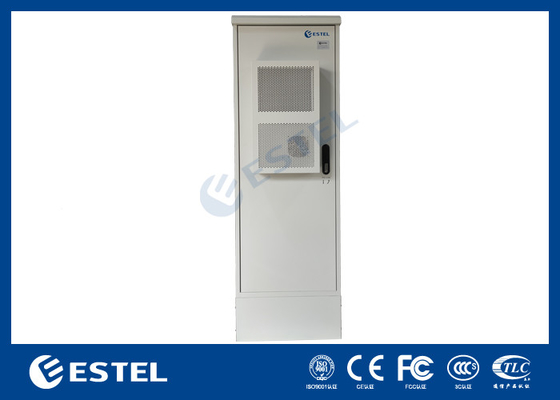

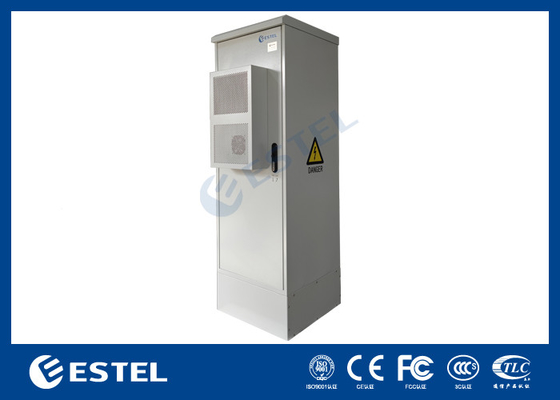

Real cabinet pictures:
