Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | W×D×H 900×900×2100mm | 19 Inch Rack: | 40U |
|---|---|---|---|
| Color: | RAL7035 Grey | Material: | Galvanized Steel, Single Wall With Insulation |
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Surface Treatment: | Outdoor Anticorrosion Powder Coating |
| Protection Level: | IP55 | Service: | OEM ODM |
| Cooling System: | AC Air Conditioner | Warranty: | 12 Month |
| Installation: | Floor Mounted | ||
| Highlight: | Double Wall Floor Mounted Battery Cabinets,Battery Cabinets With Monitorying Unit,Floor Mounted Battery Cabinets With PDU |
||
Double Wall Floor Mounted Battery Cabinets With Monitorying Unit And PDU
1. Floor Mounted Battery Cabinets Quick Details
(1) External Dimension W×D×H 9000×9000×2100mm
(2) One compartment, 40U usage space

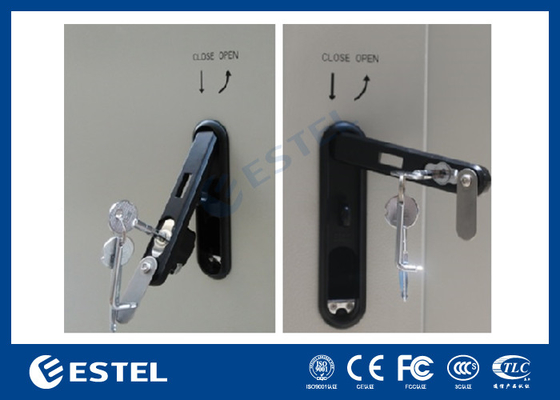

(3) One front door; with special lock for outdoor cabinet (support padlock)
(4) Material: Galvanized steel, double wall with insulation in the middle
(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated.
2. Floor Mounted Battery Cabinets Marameter
| Items | Type | Technical Parameter |
| 1 | External dimensions |
External Dimension optional : W*D*H 800*800*2000mm, W*D*H 750*750*1750mm, W*D*H 900*900*2100mm. (based on customer request) |
| 2 | Material | Galvanized steel /Stainless steel optional |
| 3 | Structure | Double wall heat insulation structure,The insulation material is 20mm PEF. |
| 4 | Heat Insulation | There are heat insulation between inner wall and outer wall. |
| 5 | Cooling system | AC220V air conditioner |
| 6 | Accessories | Lithium battery,PDU, UPS, Monitor, Light, Alarm sensors(Based on request) PDU outlet. Monitor. Light. Alarm. Sensor (Based on request) |
| 7 | Alarm Sensors | Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor |
| 8 | Lamp | DC48V LED lamp |
| 9 | Protection level | IP55 |
| 10 | Flame retardance | Comply with GB5169.7 test A |
| 11 | Switching Mode Power Supply | Available upon request |
| 12 | Temperature |
Working Temperature: -40°C ~ +55°C |
|
Storage Temperature: -50°C ~ + 70°C |
||
|
Transport Temperature: -50°C ~ +70°C |
||
| 13 | Package | Wooden case with pallets |
3. Floor Mounted Battery Cabinets Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |

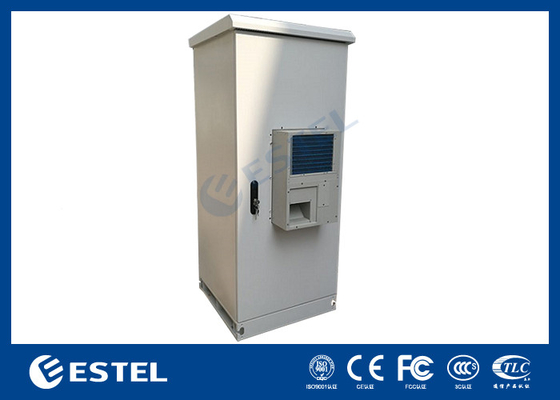

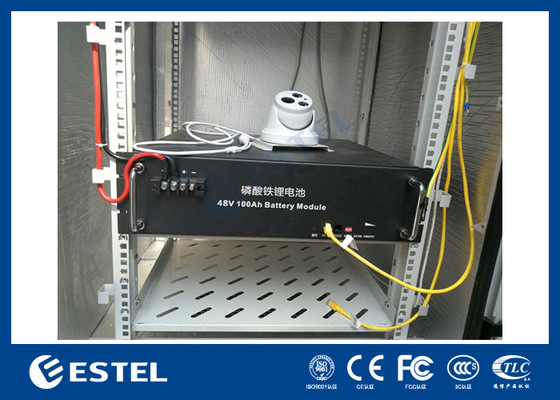

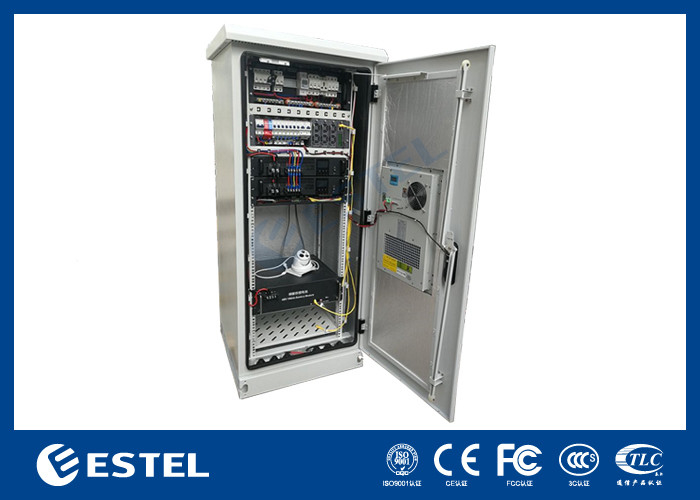

4. Floor Mounted Battery Cabinets Pictures
5. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Integrated Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19”, 40U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel, single wall with 20mm PEF |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: 220VAC 50HZ |
| 3 | Fan | 1 | PC | Two 220VAC fan+1 fan temperature controller |
| 4 | PDU | 1 | PC | Customized |
| 5 | Monitorying unit | 1 | PC | 19inch rack mounted, connected with all sensors |
| 6 | LED Lamp | 1 | PC | AC220V,50HZ |
| 7 | Package | 1 | Set | Wooden Case |
6. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
