Floor Standing Cabinets With Fan For Ventilation , Telecom Battery Cabinet OEM ODM

Floor Standing Cabinets With Fan For Ventilation And Standard Rack For House Battery

How to design a Floor Standing Cabinets

Outdoor Floor Standing Cabinets are designed to protect your sensitive network equipment from harsh environments. We have included features to safeguard it from the elements, while still keeping the equipment secure and well ventilated.The outdoor cabinet is secured with a 3 point anti theft door lock system. All fixtures are internal to the cabinet to provide a secure solution.

• Durability: Outdoor cabinets must be able to withstand harsh environmental conditions such as extreme temperatures, precipitation, dust, and UV exposure. They are typically made of corrosion-resistant materials like stainless steel or powder-coated aluminum.
• Security: The cabinets often feature secure locking mechanisms to protect the equipment from unauthorized access.
• Ventilation: Proper ventilation is crucial to prevent overheating of the equipment. Outdoor cabinets often have ventilation louvers, filters, and fans to allow airflow.
• Cable Management: They provide cable management systems, such as tie-down points and grommets, to organize and route cables efficiently.
• Shelter: Some cabinets may also provide shelter for equipment such as antennas or radios mounted on top.
• Mounting Options: They can be mounted on poles, pedestals, or walls, depending on the specific application and environment.
• Environmental Monitoring: Some advanced outdoor cabinets feature environmental monitoring systems that can alert operators to changes in temperature, humidity, or other environmental conditions.
• IP Rating: The IP (Ingress Protection) rating indicates the cabinet's ability to protect against dust and water ingress. Outdoor cabinets typically have a high IP rating to ensure they are suitable for outdoor use.

When selecting an outdoor cabinet, it's important to consider the specific requirements and conditions of the intended application, including the environment, equipment needs, security requirements, and budget.

Below the quick details :

• External Dimension is W×D×H 800×801×1150mm
• Galvanized steel,single wall
• Anti-theft three point lock
• The cabinet includes 19” standard installation rack and battery shelves

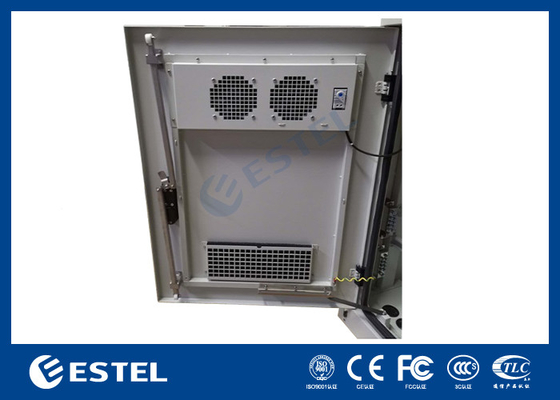

• The cabinet cooling uses 2 fans,installed on the front door.
• Including -48VDC illumination lamp.
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
• At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
• The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
• All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
• IP55 protection level.

Technical Data Sheet

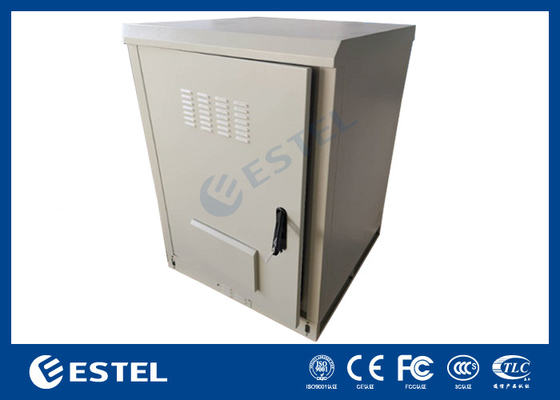

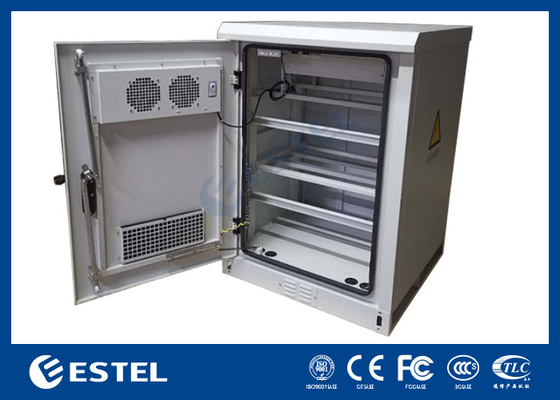

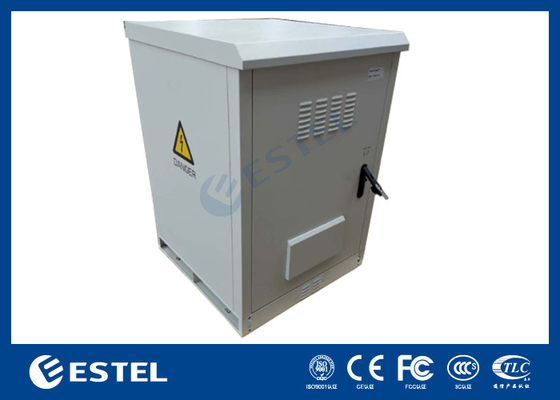

Cabinet Picture

Cabinet Diagram:

Cabinet Material

The cabinet is made of galvanized steel, with double wall /single wall for you to choose

Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.
