| Name: | Rack Mount Telecom Rectifier | Model: | CS1U-4820 |
|---|---|---|---|
| Controller: | Ethernet , SNMP, ModBus And RS485 Communication | Installation Mode: | 19 Inch Rack |
| Full Capacity: | 1080w | Output Voltage: | -48VDC (-42 To -58VDC) |
| Module: | Hot-swappable | Battery Management: | Support |
| High Light: | 1080W Power Supply System,19-Inch Standard Rectifier,CS1U-4820 Power Supply System |
||
1. ESTEL Power System Description
This power supply is a system power supply, with the following features and functions:
1, Wide voltage input range: 100-240 Vac, suitable for ac grid input around the world;
2, The system has a high power factor of 0.95; the harmonic requirement reaches the limit of IEC61000-3-2
2001;
3, Input undervoltage, input overvoltage, output overvoltage, output current limit, output short circuit, overtemperature protection function;
4. The system has battery input interface and battery undervoltage management and charging function.
2, Power System Input features
Number |
Project | Technical requirement | Unit | Remarks |
| 1 | input voltage | 100～240 | Vac | |
| 2 | input voltage range | 90～264 | Vac | |
| 3 | Input voltage frequency | 47～63 | Hz | |
| 4 | Maximum input current | ≤18 | A | |
| 6 | Input impact current | ≤80 | A | Cold starter, maximum input voltage |
| 7 | PFC | ≥0.95 | Vin = 220 Vac, rated load |
3. Power System Output characteristics:
Number |
Project | Technical requirement | Unit | Remarks | |
| 1 | Output voltage range |
54±0.5 | Vdc | Test voltage when the battery end is not connected to the battery |
|
| 2 | Output current range |
0～20 | A | The power supply comes with a fan for cooling |
|
| 3 | Stable pressure accuracy |
±3 | % | ||
| 4 | Battery charging voltage |
54±0.5 | V | Test voltage for the battery when not connected |
|
| 5 | Battery charging current |
8±0.5 | A | Test in the constant-current state | |
| 6 | Output lines spread to the noise |
≤200 | mVp-p | Rated load, oscilloscope bandwidth limit of 20 MHz, load terminal and a 47 UF / 63V electrolytic capacitor and a 104 / 63V polyester capacitor |
|
| 7 | Total output power |
1080 | W | The power supply comes with a fan for cooling |
|
| 8 | Boot output delay |
≤6 | S | Vin = 220 Vac, rated load | |
| 9 | Output up time | ≤100 | mS | The output voltage rises from 10% Vo to 90% Vo with rated load |
|
| 10 | Overshoot range of switchgear |
≤5 | %Vo | ||
| 11 | The output holds the time |
≥10 | mS | Vin: 220 Vac, rated load | |
| 12 | dyn amic resp ons e |
Overstroke range |
≤5 | %Vo | Output load change: 25% -50-25% or 50% -75% -50% |
| recovery time |
≤200 | μS | |||
| 13 | temperature coefficient |
±0.03 | %/℃ | ||
| 14 | delivery efficiency |
90 (Typical value: 92%) | % | 25℃, 220VAC input, rated load | |
3. Model EVCSE48400 Operating Principle
Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under 42V±0.5V, the monitoring module reports battery under voltage alarm signal and cuts off the load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).
4. Rectifier Application
(1) Integration access
(2) Indoor distribution and extension system
(3) Mobile station and extension coverage system
(4) WLAN
(5) Satellite communication ground station and microwave communication station
(6) Weak current distribution room
(7) Other AC/DC uninterruptible power system
5. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.

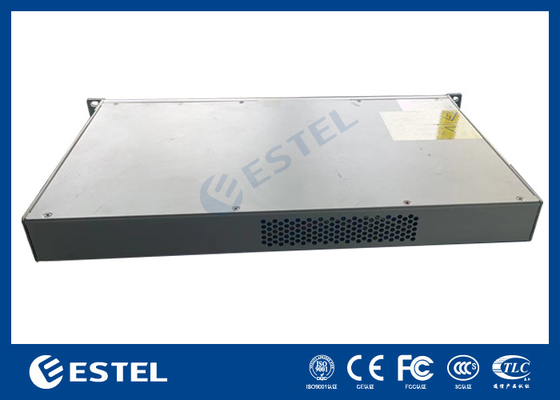

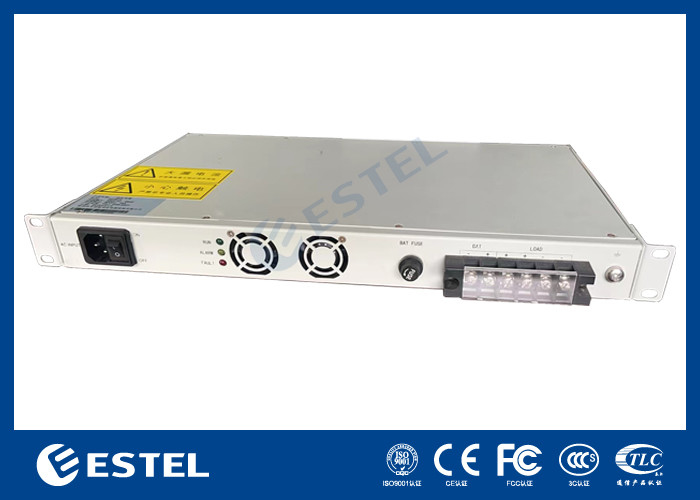

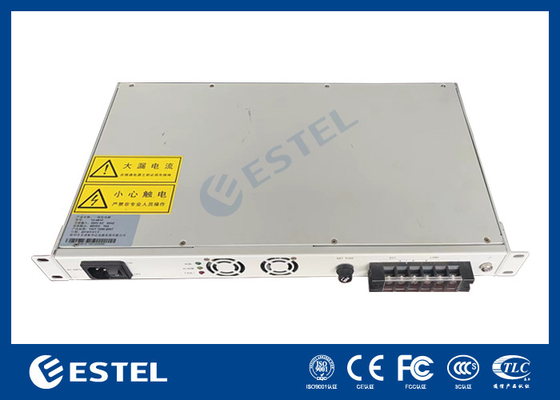

6. Product Pictures:
