Product Details:
Payment & Shipping Terms:
|
| Material: | Metal | Model: | ENPBL03 |
|---|---|---|---|
| Mount: | Pole Mount | Door: | With One Front Door |
| Protection Level: | IP55 | Application: | Telecommunication, Base Station, Electronic Ect, Outdoor Electronic Equipment, FTTX Network/Telecom |
| Color: | Customized | Size: | L380mm×W220mm×H500mm |
| Monitorying Fuction: | Yes | ||
| Highlight: | Remote Control Pole Mount Cabinet,Outdoor Pole Mount Cabinet |
||
Outdoor Pole Mount Cabinet With Real-Time Video Monitoring And Remote Control
1. Outdoor Pole Mount Cabinet Overview:
The ENPBL03 is a smart surveillance box.
It can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment.
It can managed all connected equipment and with rich management function. Work with the platform software,
It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down.
Outdoor Pole Mount Cabinet Specification:
|
Item |
Specification |
|
AC power IN |
AC 100~240V, 50/60Hz, 10A |
|
AC OUT 1-5 |
Controllable AC output 5 channels |
|
DC12V OUT 1-3 |
DC12V output 3 channels, 3A, green terminal slot; |
|
Reset key |
>5S long press: restore factory settings |
|
Lightning protection |
AC220V,nominal discharge current 10KA(8/20us) Maximum discharge current: 20KA(8/20us) |
|
RS485 |
Standard RS485 interface |
|
RS232 |
Standard RS232 interface |
|
Alarm input |
3 channels, dry-connector input |
|
Alarm output |
1 channel dry-connector output |
|
Illumination |
One LED lamp, open door LED on |
|
Indicator |
12 * LED |
|
Lock |
Lock |
|
10/100 Network port |
1*10/100 Base-TX |
|
Operating temperature |
-20℃~70℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(no condensation) |
|
Size(H×W×D) |
500 mm×380 mm×220mm |
|
Material |
metal |
|
Colour |
White |
|
Net-weight |
15KG |
Outdoor Pole Mount Cabinet Quick Details:
|
Version
|
Describe |
|
ENPBL03 |
Smart surveillance box AC 100~240V, 50/60Hz, 10A IN; 5*AC Output (support for remote control, current and voltage detection); 3*DC 12V Output (support for remote control, current and voltage detection); Smart controller unit; Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc. |

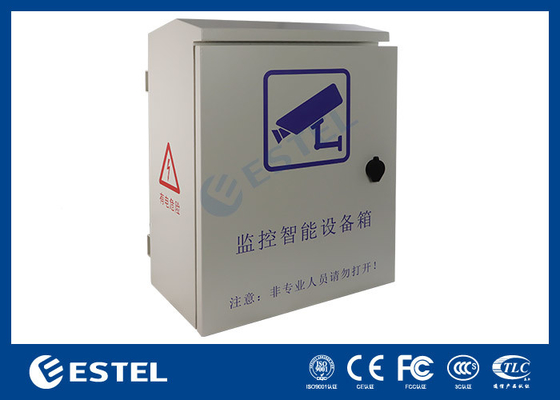

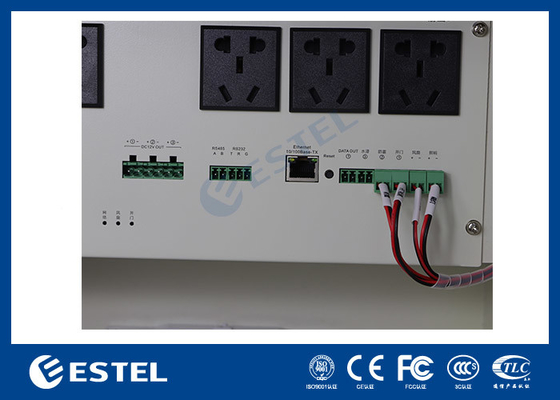

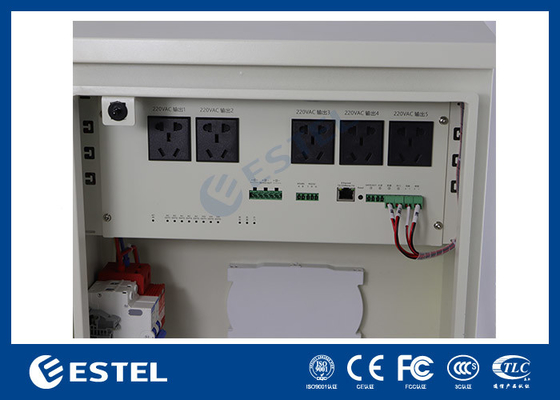

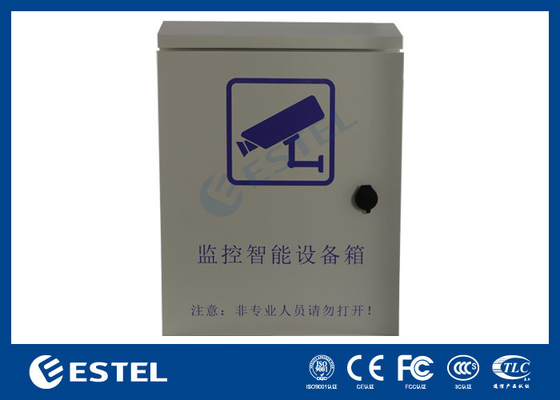

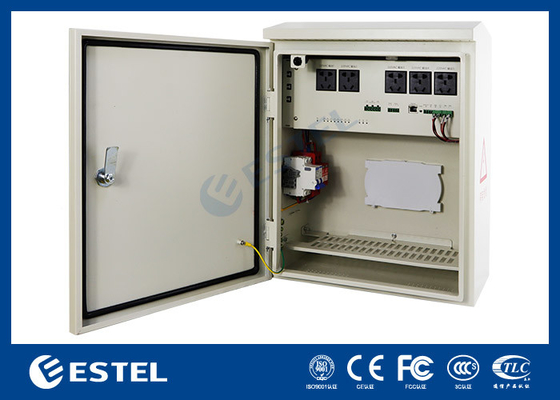

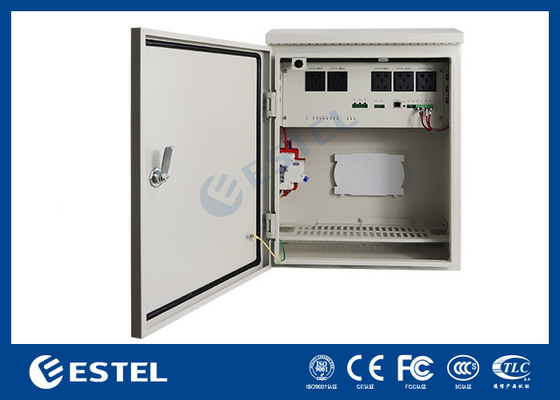

2. Outdoor Pole Mount Cabinet Pictures:
3. Outdoor Pole Mount Cabinet Features:
Provide 1 channel AC220V power input, 5 channels of AC power output ;
Provide DC12V 3-channel power output, can remotely control, detect the output voltage and current;
Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down...
Built-in open door illumination, temperature controlled cooling fan, fiber tray and grounding array etc.
The box body adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use;
Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc.
4. Outdoor Pole Mount Cabinet dimension
5. Comprehensive overview
Smart Surveillance Box is a device that integrates various technologies and functions for efficient and intelligent surveillance and security management.
Main Functions:
Real-time Video Monitoring: Captures and transmits live video footage from monitored areas through built-in cameras or other video input devices.
Data Storage and Analysis: Equipped with large-capacity storage devices to store surveillance video data, and utilizes intelligent algorithms to analyze video content to identify abnormal behaviors or events.
Alarm and Notification: Automatically triggers alarms when detecting abnormal behaviors or events, and notifies management personnel through mobile apps, SMS, emails, and other methods.
Remote Control and Management: Supports remote access and control, allowing management personnel to remotely view surveillance footage, adjust camera angles, configure system parameters, and more using mobile phones, computers, and other terminals.
Technical Features:
Intelligence: Employs advanced AI technologies such as deep learning and image recognition for intelligent analysis and processing of surveillance video content.
Efficiency: Ensures smooth and clear surveillance footage through optimized algorithms and hardware design, achieving efficient video processing and data transmission.
Security: Utilizes encryption techniques and security protocols to ensure the security and privacy of surveillance data.
User-friendliness: Provides a user-friendly interface and operating experience, enabling management personnel to quickly grasp and utilize the system with ease.
Application Scenarios:
Commercial Venues: Such as shopping malls, supermarkets, and banks, used for real-time monitoring of customer and employee behaviors to ensure the smooth operation of commercial activities.
Public Areas: Like parks, squares, and traffic intersections, used to maintain public order and safety, preventing the occurrence of criminal events.
Industrial Fields: Including factories and warehouses, used to monitor production processes and equipment operating statuses, ensuring production safety and efficiency.
