Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor UPS Telecom Cabinet | Dimension: | W*D*H 800mm×1300mm×2210mm |
|---|---|---|---|
| Material: | Galvanized Steel Single Wall | Cooling: | Air Conditioner And Fan |
| Equipment Rack: | 19 Inch Rack And Battery Tray | IP Rating: | IP55 |
| Door: | One Front Door One Rear Door | Customized: | Yes |
| Highlight: | Outdoor Integrated Cabinet With PDU,Outdoor Integrated Cabinet With Battery,IP55 Outdoor Integrated Cabinet |
||
Outdoor Integrated Cabinet With Battery And Power Distribution Unit With IP55 Protection Level
Technical Parameters for ET80130221-BA
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET80130221-BA |
| Protection Level | IP55 | |
| External Dimension | H2210mm×W800mm×D1300mm | |
| Internal Dimension | Upper 19 inch 33U below 1 layer battery cabinet | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door ,one rear door ,unti-theft three -point lock ,support padlock | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Cooling | Air conditioner 2000W 48VDC | |
| fan 12038 48VDC | ||
| Power distribution unit |
AC switchboard,with transient voltage suppressor diode (SPD 80KA) Powr grid and diesel generators (L1, L2, N, G) 120V Nema 5-15R 2 sockets 1 double breaker 100A 2 single breaker 64A 3 single breaker 30A Distribution unit Input voltage :AC 220V (L1, L2, N and G) 60Hz single phase (L1, L2, N ground connection ) electric generator connection Input voltage : AC 220V (L1, L2, N and G) 60Hz |
|
| Others | 48VDC LED lamp | |
| Environment | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
1. ET80130221-BA Specifications:
An Outdoor Integrated Cabinet is a device that integrates a battery and a Power Distribution Unit (PDU) to provide power distribution and protection in an outdoor environment.
Main functions:
Battery: Provides power backup for the device to ensure that it can continue to operate for a period of time in the event of a power outage.
Power distribution unit (PDU) : distributes power from the power supply to devices or systems and provides overload protection and short circuit protection.
Features:
Waterproof and dustproof: Usually with IP55 or IP65 waterproof and dustproof grade, adapt to outdoor harsh environment.
Heat dissipation performance: Built-in aircon/fan or other heat dissipation device to ensure the normal operation of internal devices in high temperature environment.
Capacity: It can provide cabinets with various capacities, such as 18u, 22u, 27u, 32u, 42u, etc.
Customization: Can be customized according to user needs, including size, color, function, etc.
Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor UPS Cabinet | 1 | Set |
(1) External Dimension: W×D×H 800×1300×2210mm (2) One compartment: the upper part is equipment bay, the lower part is battery bay. (3) With one front door, and special lock for outdoor cabinet (support padlock) (4) Galvanized steel, sandwich structure panel, double wall with heat insulation (5) There are heat insulation between inner wall and outer wall. The insulation material is PEF. |
| 2 |
Air Conditioner (cooling for equipment bay) |
1 | Set | Cooling Capacity: 2000W; Power Supply: DC48V |
| 3 | Fan | 1 | Set | Power Supply: DC48V |
| 4 | LED Lamp Sensor | 1 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Power Distribution Unit | 1 | Set |
AC switchboard,with transient voltage suppressor diode (SPD 80KA) Powr grid and diesel generators (L1, L2, N, G) 120V Nema 5-15R 2 sockets 1 double breaker 100A 2 single breaker 64A 3 single breaker 30A Distribution unit Input voltage :AC 220V (L1, L2, N and G) 60Hz single phase (L1, L2, N ground connection ) electric generator connection Input voltage : AC 220V (L1, L2, N and G) 60Hz |
| 7 | Package | 1 | Set | Wooden Case |
2. Feature
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: air conditioner. MTBF≥50000h.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5) The cabinet includes grounding bar
3. Applications
The ET80130221-BA Outdoor Power Cabinet is for holding telecom power system and batteries, mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
4. Dimension Diagram

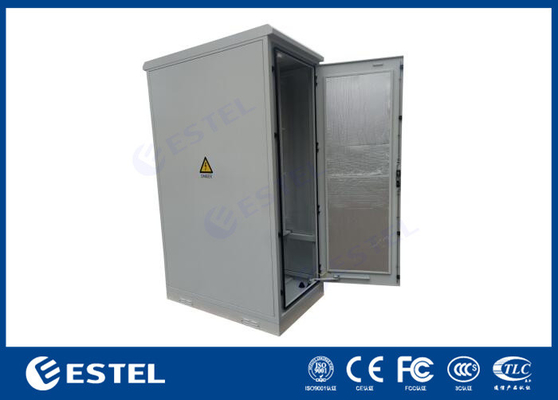

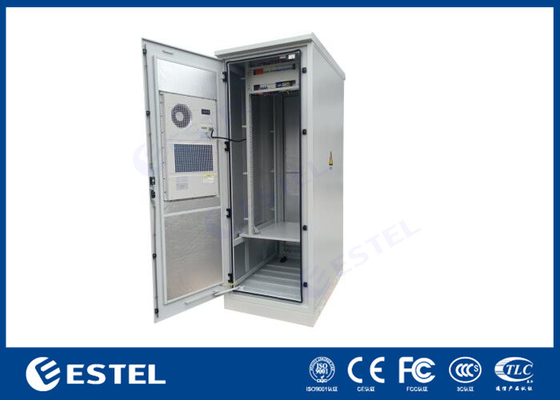

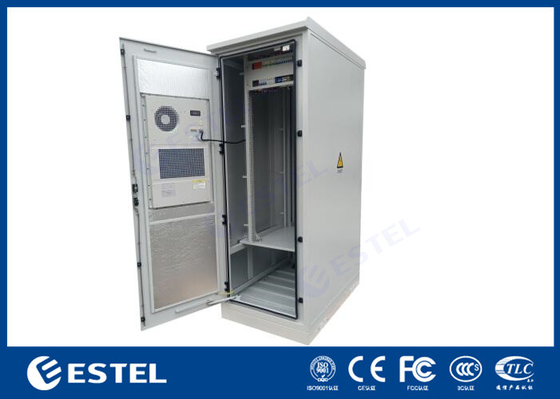

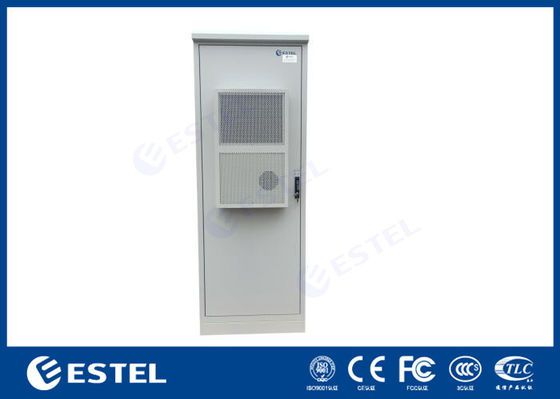

5. Cabinet pictures
