Embedded Monitoring Platform Nurse In Small And Medium-Sized Computer Rooms

Embedded Monitoring Platform Nurse In Small And Medium-Sized Computer Rooms

Parameter list

Figure 1-1 Onboard Parameter

Figure 1-2 Port Parameter

• Intelligent monitoring and acquisition unit, 1U height, Linux system, built-in monitoring software, can access UPS, air conditioning, distribution cabinet, temperature and humidity, water, smoke and other comprehensive power environment equipment;
• Software for B/S architecture, web remote access;
• The system provides standard SNMP, MODBUS RTU/TCP, and B interfaces for the integration of upper-layer monitoring systems or third-party systems.

Environment Monitoring System Product Feature

FSU1000 is a hardware acquisition device for the hardware control and service of the cabinet and machine room station. The new design combines the practical needs of the project delivery and project implementation of the outdoor station ETC and the outdoor cabinet, focusing on the solution of the system maintainability, system wiring, debugging, aesthetics and other requirements, suitable for most of the front-end collection of the application environment.

FSU1000 series power environment monitoring unit is a miniaturized, high reliability and convenient installation power environment monitoring system for Communication Base Station, integrated computer room and outdoor cabinet, it is specially used for power, environment, equipment control and remote monitoring of Communication Base Station,integrated machine room and outdoor machine cabinet.

The FSU1000 series dynamic environment monitoring unit has the functions of detecting the dry contact signals such as entrance guard, water immersion, smoke,lightning protection, air conditioning failure, infrared, temperature and humidity detection, etc. and built-in city power cut detection and tilt vibration detection functions.

FSU1000 series Dynamic Environmental Monitoring Unit built-in DC voltage measurement function, and equipped with 8 Hall Effect Sensor Interface, used to measure DC current, analog measurement voltage, current transmitter.

FSU1000 Series Dynamic Environment Monitoring Unit has multi-channel RS485/RS232 signal (up to 16) access function, can Be used for switching power supply, air conditioning, UPS, lithium batteries, smart meters, electronic door locks, voice, video equipment protocol access.

FSU1000 series Dynamic Environmental Monitoring Unit with a variety of communication mode selection (RS485/RS232, TCP, UDP, SNMP, NB-IOT, 4g, Wifi, etc.) , easy to network. FSU1000 series dynamic environment monitoring unit supports access to 7-inch configuration display.

Figure 1-3 Envirenmental Parameter

Figure 1-4 Protection Standard Parameter

Figure 1-5 Lightning Protection Parameter

Figure 1-6 Packaging Parameters

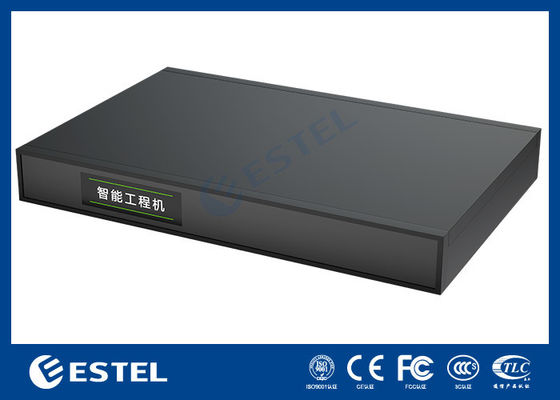

Product pictures:
