Product Details:
Payment & Shipping Terms:
|
| Material: | Metal | Model: | EDBQU2082SPG |
|---|---|---|---|
| Weight: | 15KG | Solar Input: | Solar Battery Input, <100VDC (must Greater Than Storage Battery Voltage) |
| Protection Level: | IP55,IP65 | Application: | Surveillance Monitoring, Forest Monitoring |
| Color: | White | Size: | 500mm×380mm×220mm |
| LCD Screen: | Size:108mm(L)*64.8mm(W), Resolution Ratio:800*480, With Touch-control | ||
| Highlight: | 3 Channel Smart Monitoring Box,MPPT Controller Smart Monitoring Box,Outdoor Solar Powered Smart Monitoring Box |
||
Overview
It is an solar powered smart box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge arrester inside.
It can be applied for surveillance monitoring, forest monitoring, etc.

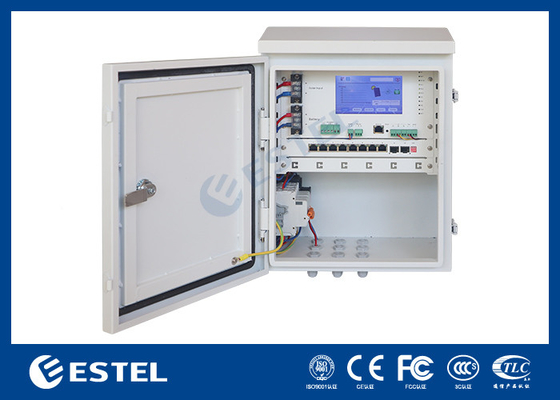

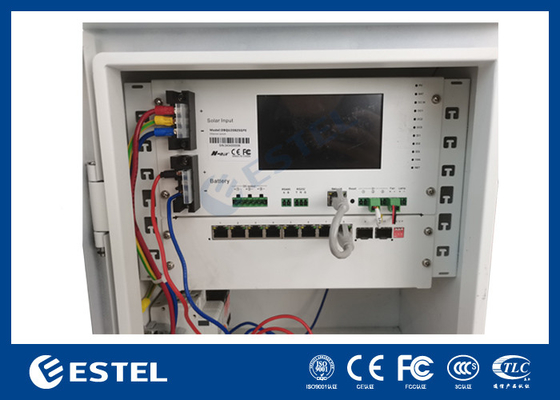

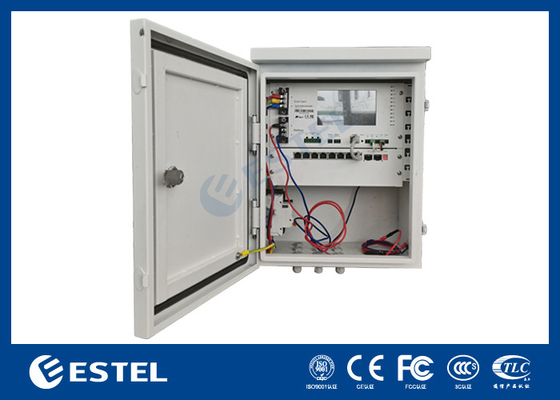

Pictures
Features
Solar power input, input <100VDC;
Provide DC 3 channel power output, can remotely control, detect the output voltage and current;
Switch with 8*10/100/1000M PoE downlink ports and 2*1000M SFP uplink ports.;
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
With MPPT controller, connected the solar battery and charge the storage battery ;
The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use.
With software platform, can check and control remotely.
Hardware specification
Box:
|
Solar input |
Solar battery input, <100VDC (must greater than storage battery voltage) |
|
Battery |
DC12V (customer provide) |
|
DC output |
DC output 3 channel, can detect voltage and current |
|
RS232 |
Standard RS232 interface |
|
RS485 |
Standard RS485 interface |
|
Alarm input |
3 channels, dry-connector input channel 1 is default for the door open/closed detected; |
|
10/100/1000 network port |
1*10/100/1000Base-TX |
|
Reset key |
>5s press recovery to factory default |
|
MPPT controller |
Battery voltage: 12V/24V/Auto |
|
Solar input voltage: <100V |
|
|
MPPT efficiency: >99% |
|
|
Rated discharge current: 20A |
|
|
Working temperature |
-20℃~70℃ |
|
LCD screen |
Size:108mm(L)*64.8mm(W), Resolution ratio:800*480, with touch-control |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(H×W×D) |
500mm×380mm×220mm |
|
Material |
Metal |
|
Colour |
White |
|
Net-weight |
15KG |
Switch:
| Parameter | Specifications |
| Consumption | Self consumption<15W |
| Downlink ports |
1~8 ports: 10/100/1000Base-TX 30W PoE RJ45(IEEE802.3af/at) |
| Uplink ports | 9~10 ports: 1000M SFP slots |
| Working mode |
Default: common switch. VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the network storm; close flow control. |
| Switch fabric | 5.6Gbps |
| Though put | 4.2Mpps |
| Buffer | 12KB |
| MAC address table | 4K |
| Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2 |
Diagram :
