Product Details:
Payment & Shipping Terms:
|
| Size: | L200 Mm×W92 Mm×H58mm | Power IN: | AC 100~240V, 50/60Hz, 10A |
|---|---|---|---|
| LCD Screenment: | YES | Shell Material: | Metal |
| Colour: | White | Warranty: | 1 Year |
| Usage: | For Controlling Unit | Model: | EPBM02 |
| Highlight: | Smart Surveillance Box With Camera,Smart Surveillance Box With Network Switch,Smart Surveillance Box Controlling Unit |
||
Product Parameter
| Item |
Specification
|
| AC power IN | AC 100~240V, 50/60Hz, 10A |
| Backups DC power IN | DC12V 6A (maximum)It can be used for backup power supply |
| Power IN | DC5V-24V 6A max.For 2 V+ V-output |
| AC OUT 1-5 |
Controlled AC output 5 channels; support for remote control of single channel; support shows the single circuit voltage and the current value; |
| DC12V output |
DC12V output 3 channels, 3A, green terminal slot; Support for remote control of single channel; Support shows the single circuit voltage and the current value; |
| Power in | DC5V-24V 6A max. For 2 V+ V-output; |
| LCD screen |
0.96#LCD show power input, SN, device IP, server IP, link-status, SPD(surge protection device) status, temperature and humidity |
| GPRS Module | GPRS module (optional) |
| GPS Module | GPS module (optional) |
| DC12V OUT 1-3 | The max DC12V 6A, support for remote control, current and voltage detection |
| RS485 | RS485 |
| RS232 | RS232 |
| door lamp signal | 4*LED(power supply, network, fiber optic, system) |
| Unlock signal | electronic control lock (support key door and remote control door) |
| 10/100Ehernet port | 1*10/100Base-TX |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(no condensation) |
| Size(L×W×H) | 200 mm×92 mm×58mm |
| Shell material | metal |
| Colour | white |
| Net weight | 400g |
Provide 1 channel AC power input, can detect input of voltage and current.
Provide 5 channel AC power supply output, can remote control and detect output of voltage and current.
provide 1 channel DC 12V, 2 channel other voltage output, can remote control and detect output of voltage and current.
Support detecting box’s door opening/closing status, can open door on remote side and alarm when unauthorized opening the door.
Support system extensions,can extend AC high voltage unit and alarm unit.
For more details:
The "Smart surveillance box controlling unit" typically refers to a device that is a central component of a smart surveillance system.
This controlling unit manages and coordinates the various components of the surveillance system, including cameras, sensors, alarms, and other devices.
Here are some key features and functionalities of a smart surveillance box controlling unit:
Centralized Management: The controlling unit acts as a hub for the entire surveillance system, allowing users to monitor and control all connected devices from a single interface.
Video Management: It handles video recording, storage, and playback. This includes managing video files, exporting footage, and creating searchable archives.
Alarm and Event Management: The controlling unit receives alerts from connected devices and triggers notifications or actions based on predefined rules. For example, it can send an alert to a user's phone if motion is detected in a monitored area.
Remote Access: Users can access the surveillance system remotely, allowing them to view live or recorded video, adjust camera settings, and manage alarms from anywhere with an internet connection.
Integration with Other Systems: The controlling unit may be designed to integrate with other systems, such as access control, fire detection, or building management systems.
Scalability: Smart surveillance systems often need to be expanded or upgraded over time. The controlling unit should be able to handle additional devices and features as the system grows.
Analytics and Reporting: Advanced controlling units may provide analytics tools that can analyze video footage to detect patterns, identify objects, or recognize faces. They may also generate reports on system usage, alarms, and other metrics.
User Interface: The controlling unit typically has a user-friendly interface that allows users to easily navigate the system and perform tasks.
The specific features and capabilities of a smart surveillance box controlling unit will depend on the manufacturer and the intended application of the surveillance system.

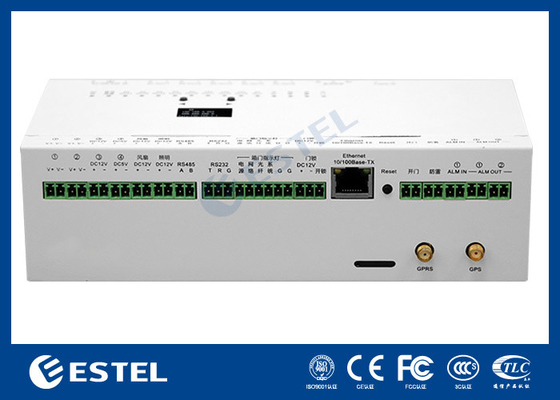

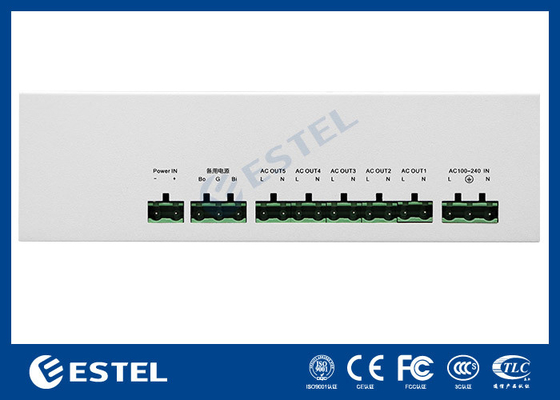

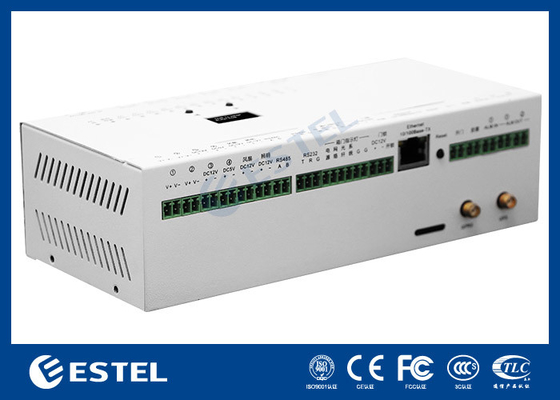

Our product pictures:
